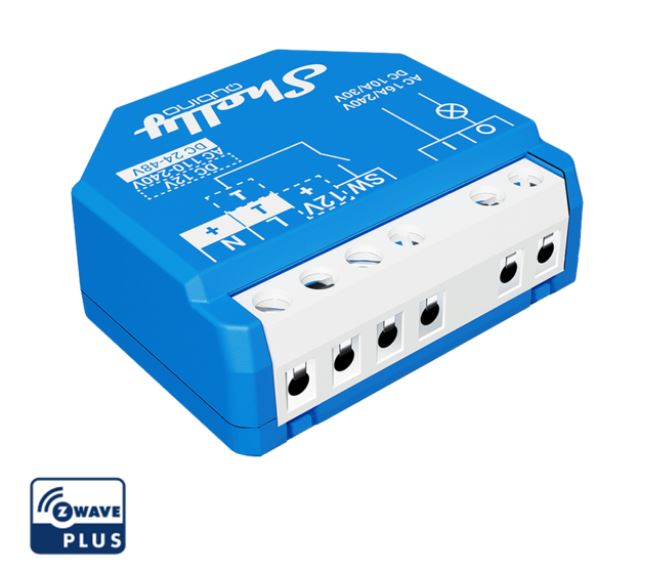

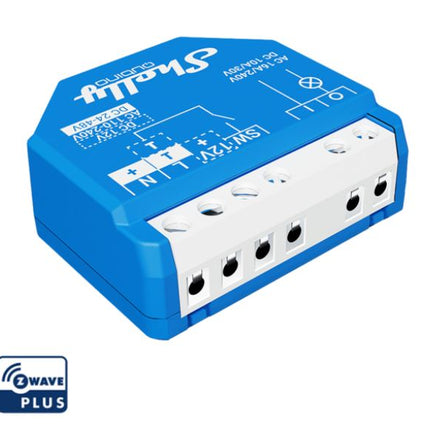

Shelly Wave 1 Z-Wave Smart Relay Switch with Dry Contact
The Shelly Wave 1 (formerly Shelly Qubino Wave 1) is a compact Z-Wave 800 smart relay designed to bring intelligent control to your home or commercial property. With a single potential-free output rated at 16A, this device enables remote and automated control of lighting, gates, garage doors, irrigation systems, electrical locks, and more. Fits behind standard wall switches or inside electrical boxes, making it perfect for retrofit installations without replacing existing switches.
Key Features
-
Z-Wave 800 Technology: Latest generation wireless protocol for reliable, secure home automation with extended range and better battery efficiency
-
Potential-Free (Dry Contact) Output: Compatible with a wide range of devices and voltages, allowing you to control loads independent of input voltage
-
16A Maximum Load Capacity: Sufficient power for most residential and light commercial applications including lighting circuits, motors, and appliances
-
Flexible Power Supply Options: Supports 110-240V AC, 24-48V DC, or 12V DC for maximum installation flexibility
-
Compact Design: Small form factor fits behind existing wall switches and inside standard electrical enclosures
-
Universal Z-Wave Compatibility: Works with over 4,000 certified Z-Wave devices and all major smart home gateways including SmartThings, Home Assistant, Hubitat, and more
Smart Home Automation Made Simple
Control connected devices from anywhere via your smartphone or tablet when paired with a Z-Wave gateway (sold separately). Create custom schedules, scenes, and automations to optimize energy usage and convenience. Integrate motion sensors to automatically turn on lights in hallways, garages, or storage rooms. Set timers to switch off appliances during non-working hours and reduce energy costs.
Professional Installation Options
The Shelly Wave 1 can be controlled both wirelessly via Z-Wave and using traditional wall switches or push-buttons. This dual control method makes it ideal for both new installations and retrofits where you want to preserve manual switch functionality. The potential-free relay output means input voltage can differ from the device you're switching, providing compatibility with low-voltage control systems and a wide variety of automation applications.
Secure & Reliable Communication
Built with Z-Wave Security 2 (S2) protocol, the Wave 1 offers bulletproof AES-128 encryption for secure communication. The device acts as a signal repeater when mains-powered, strengthening your Z-Wave mesh network. Internal overheat protection ensures safe operation under load.
Applications
- Smart lighting control for homes and offices
- Gate and garage door automation
- Irrigation system scheduling
- Electric lock control for access management
- HVAC and climate control integration
- Energy management and load switching
What's in the Box
- Shelly Wave 1 Smart Relay Module
- Quick Start Guide
Full Specifications
| Model |
Wave 1 (QNSW-001X16EU) |
| Protocol |
Z-Wave (Z-Wave Plus, Z-Wave 800) |
| Z-Wave Product Type ID |
0x0002 |
| Z-Wave Product ID |
0x0083 |
| Manufacturer |
Shelly Europe (Allterco Robotics) |
| Channels |
1 relay output (potential-free/dry contact) |
| Maximum Load |
16A |
| Power Supply |
110-240V AC, 24-48V DC, or 12V DC |
| Power Consumption |
< 25 mW (standby) |
| Inputs |
1 switch/push-button input |
| Contact Type |
Potential-free (dry contact), configurable NO/NC |
| Security |
Z-Wave S2 Authenticated, S2 Unauthenticated, S0, Unsecure |
| Encryption |
AES-128 |
| Mesh Network |
Acts as Z-Wave repeater (when mains-powered) |
| Protection |
Internal overheat protection |
| Installation |
In-wall/in-box retrofit installation |
| Control |
Z-Wave wireless & manual wall switch/push-button |
| Compatibility |
All Z-Wave certified gateways and controllers |
| Region |
EU version (868.4 MHz) - check for regional variants |
Specifications are sourced from the manufacturer product page and may be updated. A Z-Wave gateway or hub is required for device configuration and smart home integration (sold separately).
