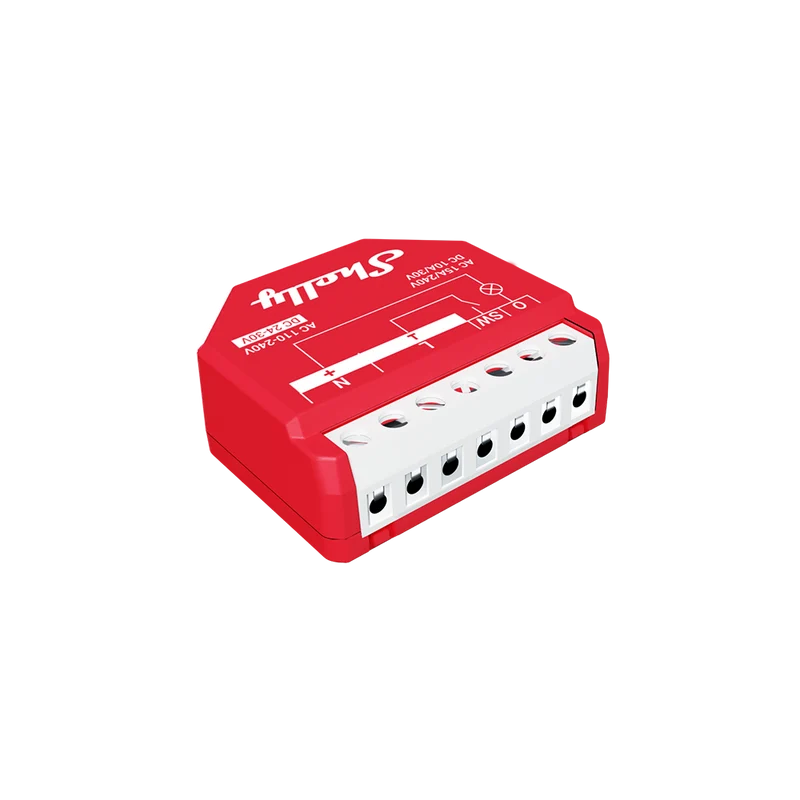

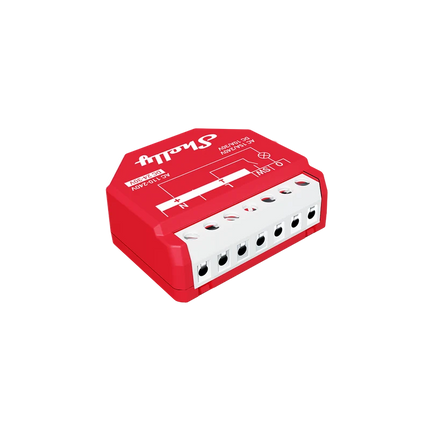

Shelly Wave 1PM Z-Wave Smart Relay Switch with Power Monitoring
Transform any standard electrical appliance into a smart device with the Shelly Wave 1PM, a compact Z-Wave 800 smart switch with integrated power metering. Designed to fit discreetly behind existing wall switches or inside appliance housings, this professional-grade relay enables remote control and real-time energy monitoring of lights, heating, water heaters, and more. Perfect for Australian smart homes using Z-Wave automation systems, the Wave 1PM supports up to 16A load capacity and operates at an ultra-low 0.3W power consumption.
Why Choose the Shelly Wave 1PM?
-
Precise Power Monitoring: Track energy consumption in real-time and identify high-usage appliances to reduce electricity costs
-
Retrofit Design: Install behind any existing switch or socket to instantly upgrade to smart control without rewiring
-
Wide Voltage Range: Supports 110-240V AC and 24-48V DC power supplies for flexible installation options
-
Z-Wave 800 Technology: Latest generation Z-Wave with enhanced range up to 40m indoors and signal repeater functionality
-
Security 2 Encryption: AES128 encrypted communication for maximum smart home network security
-
SmartStart Ready: Automatic inclusion simplifies setup with compatible Z-Wave gateways
Complete Smart Home Control
The Shelly Wave 1PM provides single-channel relay control with power measurement capability, making it ideal for automating individual appliances throughout your home. Control lighting circuits, electric heaters, water heating systems, fans, and other electrical devices remotely through your Z-Wave gateway. Create custom schedules aligned with your daily routine, or synchronize lighting with sunrise and sunset times for automated convenience.
Energy Monitoring That Saves Money
The integrated precision power meter continuously monitors energy consumption, voltage, and current draw of connected loads. Access detailed consumption data through your Z-Wave gateway to identify energy-wasting devices, predict monthly electricity costs, and optimize your usage patterns. The Wave 1PM will alert you to unusual consumption spikes that may indicate appliance malfunction, potentially saving you from costly repairs or replacements.
Professional Installation Features
With its compact form factor, the Wave 1PM fits easily into standard electrical boxes and tight installation spaces. The device features a potential-free relay contact, meaning input voltage can differ from the switched load voltage. It supports both normally open (NO) and normally closed (NC) contact configuration. The built-in Z-Wave signal repeater extends your mesh network range, improving reliability throughout your smart home installation.
Smart Scenes and Automation
Combine the Wave 1PM with other Z-Wave devices to create sophisticated automation scenes. Set up direct device-to-device communication within your Z-Wave network for actions that don't require hub intervention. The device operates on sub-GHz frequency, ensuring stable wireless connection without interference from Wi-Fi networks or other 2.4GHz devices common in modern homes.
Universal Compatibility
- Compatible with all certified Z-Wave devices and gateways available worldwide
- Works with popular smart home platforms supporting Z-Wave integration
- Z-Wave Plus certified for guaranteed interoperability
- Operates on appropriate Z-Wave frequency for your region (EU: 868.4MHz, US: 908.4MHz, AU: 919.8MHz)
What's in the Box
- Shelly Wave 1PM Smart Relay Module
- Quick Start Guide
- Installation Instructions
Full Specifications
Device Information
| Model |
Wave 1PM |
| Part Number (EU) |
QNSW-001P16EU |
| Z-Wave Product Type ID |
0x0002 |
| Z-Wave Product ID |
0x0084 |
| Z-Wave Manufacturer |
Shelly Europe Ltd. |
| Z-Wave Manufacturer ID |
0x0460 |
Electrical Specifications
| Power Supply |
110-240V AC / 24-48V DC |
| Maximum Load |
16A |
| Device Power Consumption |
0.3W |
| Contact Type |
Potential-free relay (NO/NC configurable) |
| Power Metering |
Voltage, Current, Power (W), Energy (kWh) |
Wireless Specifications
| Protocol |
Z-Wave 800 Series |
| Frequency |
Region-specific (EU: 868.4MHz) |
| Range |
Up to 40m indoors |
| Signal Repeater |
Yes (extends Z-Wave mesh network) |
| Security |
Security 2 (AES128 encryption) |
| SmartStart |
Supported |
Environmental & Compliance
| Operating Temperature |
-10°C to 40°C |
| Warranty |
24 months manufacturer warranty |
| Certifications |
Z-Wave Plus Certified, CE compliant |
Specifications are sourced from the manufacturer product page and may be updated. Note: The product line formerly known as "Shelly Qubino Wave" is now referred to as "Shelly Wave" - this name change does not affect device functionality.
