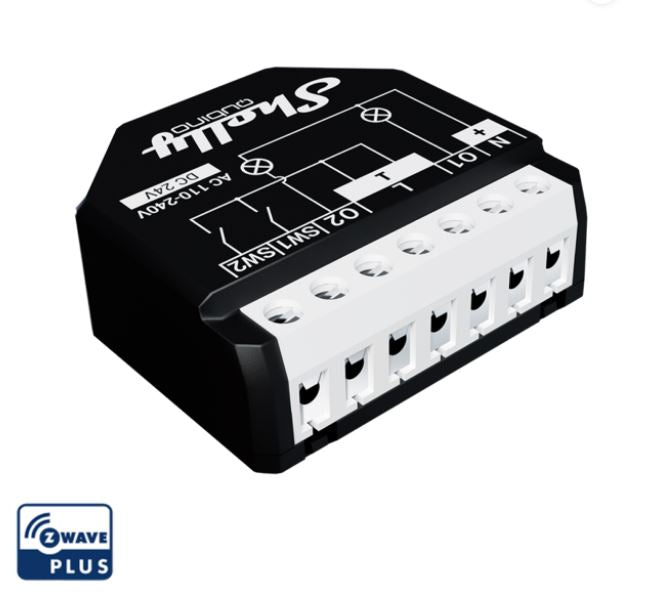

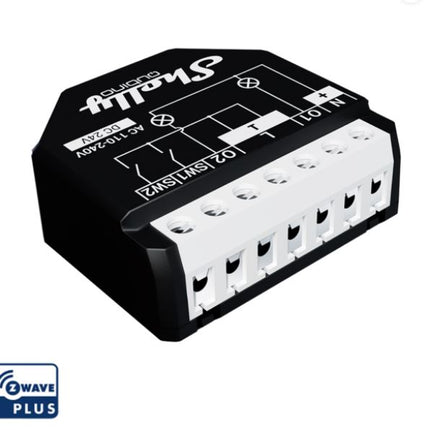

Shelly Wave 2PM Z-Wave Smart Relay with Dual Channel Power Monitoring
Transform your home into a smart home with the Shelly Wave 2PM, a compact Z-Wave smart relay switch that allows you to remotely control two independent electrical circuits while monitoring their power consumption. Designed to retrofit behind any switch or socket, this device instantly upgrades your existing lighting and appliances with smart control capabilities. Perfect for Australian homes looking to add intelligent automation without rewiring.
Key Features
-
Dual-Channel Control: Independently control and monitor two separate electrical circuits (2 × 7A, 14A total)
-
Real-Time Power Metering: Track energy consumption for each channel separately or combined to save money and reduce waste
-
Z-Wave 800 Series: Latest generation chip with Security 2 (AES128 encryption) for maximum network safety
-
Ultra Energy Efficient: Consumes less than 0.3W of power during operation
-
SmartStart Enabled: Simple setup - just scan the QR code and add to your Z-Wave network
-
Compact Design: Measuring just 42mm × 37mm, fits easily in standard electrical boxes and behind switches
-
Extended Range: Up to 40m indoor range with signal repeater functionality to extend your Z-Wave network
-
Universal Compatibility: Works with all certified Z-Wave gateways and controllers
Perfect for Smart Home Automation
The Shelly Wave 2PM is ideal for controlling lights, ceiling fans, IR heaters, and other household appliances. Set custom schedules based on your daily routine, create automation scenes, or monitor energy usage to identify power-hungry devices. The device operates on a sub-GHz frequency, ensuring stable and reliable wireless connection without interference from Wi-Fi networks.
Simple Installation & Retrofit Design
Designed for easy installation, the Wave 2PM fits into most standard electrical boxes and behind existing wall switches. No need to replace your current switches - simply install the relay behind them and gain instant smart control. The device supports both switch and momentary button inputs, offering flexible configuration options for different installation scenarios.
Advanced Power Monitoring
With integrated power meters on both channels, you can track exactly how much energy your appliances are consuming. Access detailed consumption data through the Shelly app with free cloud storage, helping you identify opportunities to reduce energy bills and environmental impact.
What's in the Box
- Shelly Wave 2PM Smart Relay
- User Manual
- Safety Information
Full Specifications
| Model |
Wave 2PM (QNSW-002P16EU) |
| Protocol |
Z-Wave (Z-Wave Plus, Z-Wave 800 series) |
| Frequency |
Sub-GHz (region-specific) |
| Channels |
2 independent relay channels |
| Max Current per Channel |
7A (AC 120-240V) |
| Total Max Current |
14A |
| Power Metering |
Yes, per channel and total |
| Power Consumption |
Less than 0.3W |
| Security |
Security 2 (AES128 encryption) |
| Range |
Up to 40m indoors |
| Signal Repeater |
Yes (extends Z-Wave network) |
| Dimensions (W × H) |
42mm × 37mm × 15mm (approx.) |
| Weight |
29g |
| Installation |
Retrofit, behind switches/sockets |
| Screw Terminal Torque |
0.25 Nm max |
| Wire Gauge |
1.0 to 2.5 mm² (16-14 AWG) |
| Operating Temperature |
-10°C to 40°C |
| Max Altitude |
2000m |
| Certifications |
Z-Wave Plus Certified |
| Warranty |
3 years (manufacturer) |
Specifications are sourced from the manufacturer product page and may be updated.
