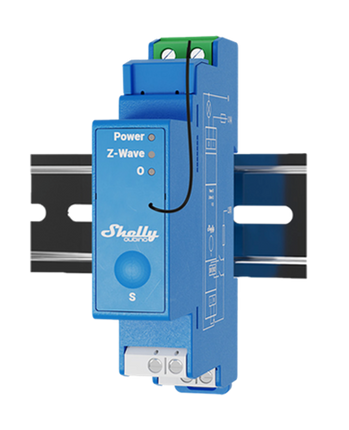

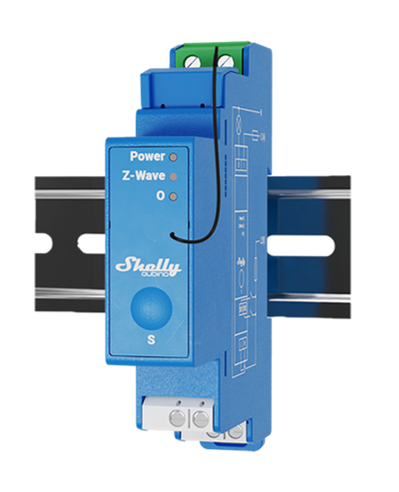

Shelly Wave Pro 1 Z-Wave DIN Rail Smart Switch 16A Dry Contact Relay
The Shelly Wave Pro 1 is a professional-grade single-channel Z-Wave smart switch designed for DIN rail installation inside electrical cabinets and breaker boxes. Built on the latest Z-Wave 800 Series chipset, this relay provides reliable on/off control for lighting circuits, appliances, and automation systems in homes, offices, retail stores, and manufacturing facilities. With potential-free (dry contact) outputs, the Wave Pro 1 offers flexibility in voltage support and can switch a wide range of low or high-voltage circuits up to 16A.
Why Choose the Shelly Wave Pro 1?
-
Professional DIN Rail Installation: Compact design fits neatly inside your breaker box for clean, concealed smart home automation
-
Dry Contact Relay: Potential-free contacts allow independent switching of various voltage circuits
-
Z-Wave 800 Series: Latest chipset technology ensures reliable mesh networking and compatibility with over 4,000 Z-Wave devices
-
Security 2 Authenticated: Strong AES-128 encryption provides the highest level of smart home security
-
Ultra-Low Power Consumption: Uses less than 0.3W of power during operation
-
5-Year Warranty: All Shelly Pro and Wave Pro devices are backed by an extended manufacturer warranty
Smart Home Automation Made Simple
The Wave Pro 1 integrates seamlessly with Z-Wave certified gateways including Home Assistant, SmartThings, Hubitat, and other popular home automation platforms. Configure schedules, scenes, and automations to control lighting and appliances based on your daily routine or business needs. The device supports SmartStart for quick and easy setup - simply scan the QR code and the device pairs automatically with your Z-Wave hub.
Enhanced Safety Features
Your safety is paramount. The Wave Pro 1 includes overheating protection with an internal temperature sensor that monitors every 100ms. If unsafe temperatures are detected, the relay automatically switches off and sends a notification to your smart home system. Perfect for installations where reliability and safety are critical.
Universal Compatibility & Mesh Networking
Thanks to Z-Wave's universal standard, the Shelly Wave Pro 1 works with all Z-Wave certified gateways and communicates seamlessly with other Z-Wave devices regardless of brand. The device also acts as a Z-Wave repeater, extending your mesh network range up to 40m indoors and strengthening signal reliability throughout your home or facility.
Key Technical Specifications
-
Z-Wave Chipset: Z-Wave S800 (800 Series)
-
Frequency: 868.4 MHz (EU/CEPT countries)
-
Maximum Switching Current: 16A
-
Maximum Voltage: 240V AC
-
Power Supply: 110-240V AC ±10%, 50/60 Hz
-
Relay Type: Potential-free (dry contact)
-
Mounting: DIN rail
-
Dimensions: 94 × 19 × 69 mm
What's in the Box
- Shelly Wave Pro 1 smart relay
- Quick start documentation with QR code
- DSK security label
Full Specifications
Power & Switching
| Power Supply |
110-240V AC ±10%, 50/60 Hz |
| Power Consumption |
<0.3W |
| Maximum Switching Voltage (AC) |
240V |
| Maximum Switching Current |
16A |
| Relay Type |
Potential-free (dry contact) |
Z-Wave
| Chipset |
Z-Wave S800 (800 Series) |
| Frequency Band |
868.4 MHz (EU/UK) |
| Repeater Function |
Yes |
| Typical Indoor Range |
Up to 40m |
| Maximum RF Output Power |
<25 mW |
| Security |
Security 2 Authenticated (AES-128) |
| SmartStart |
Yes |
Protection
| Overheating Protection |
Yes (temperature monitoring every 100ms) |
| Voltage Protection |
No |
| Current Protection |
No |
| Power Protection |
No |
Physical
| Mounting |
DIN rail |
| Dimensions |
94 × 19 × 69 mm |
| Weight |
Approx. 73g |
| Wire Gauge |
0.5-2.5 mm² |
| Clamping Torque |
Approx. 0.4 Nm |
Environmental
| Operating Temperature |
-20°C to 40°C |
| Humidity |
30-70% RH |
Warranty & Compliance
| Manufacturer Warranty |
5 years |
| Manufacturer |
Shelly Europe Ltd. |
| Z-Wave Product Type ID |
0x0002 |
| Z-Wave Product ID |
0x008A |
| Z-Wave Manufacturer ID |
0x0460 |
Specifications are sourced from the manufacturer product page and may be updated.
