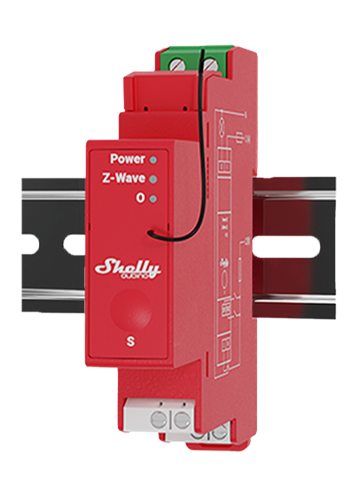

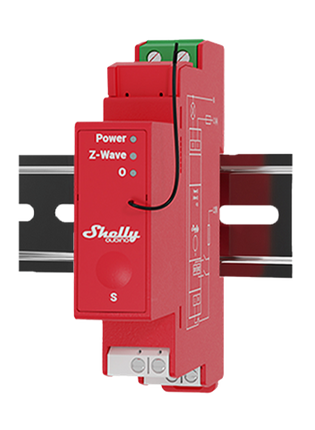

Shelly Wave Pro 1PM Z-Wave Smart Relay with Power Monitoring 16A DIN Rail
The Shelly Wave Pro 1PM is a professional Z-Wave smart relay with integrated power metering, designed for DIN rail installation inside electrical breaker boxes. Supporting up to 16A output capacity, this single-channel smart switch enables remote automation and precise energy monitoring for lighting circuits, appliances, and heating systems in homes, offices, retail stores, and commercial facilities. Built on the latest Z-Wave 800 Series technology, it offers enhanced range, security, and compatibility with all certified Z-Wave gateways and over 4,000 Z-Wave certified devices worldwide.
Key Features
-
Integrated Power Metering: Monitor real-time energy consumption and track usage patterns to identify high-consumption devices and reduce waste
-
16A Relay Capacity: Control lights, appliances, or floor heating with a reliable one-phase, 1-channel relay
-
Z-Wave 800 Series Chipset: Latest generation technology with mesh networking, extended range up to 40m indoors, and superior reliability
-
DIN Rail Mounting: Professional installation inside standard electrical distribution boards for clean, compliant integration
-
SmartStart Inclusion: Simply scan the QR code with your Z-Wave gateway for automatic network configuration in seconds
-
Enhanced Safety Protections: Built-in overheating, overvoltage, overpower, and overcurrent protection with automatic shutoff and notifications
Advanced Energy Management
The integrated power meter tracks the precise energy consumption of connected loads, providing valuable data to help you reduce energy costs and identify failing appliances before they become expensive problems. When an appliance becomes damaged or inefficient, it often consumes more power without any visible change in performance. The Wave Pro 1PM immediately reports increases in energy consumption, allowing you to take action and avoid wasted energy and costly repairs.
Set custom schedules and automation scenes to power down devices after hours or sync appliances to your daily routine. Create advanced scenarios that respond to energy thresholds, time of day, or sensor triggers from other Z-Wave devices in your network.
Professional-Grade Installation and Safety
Designed for DIN rail mounting inside breaker boxes, the Wave Pro 1PM delivers professional-grade automation with no additional cables or wiring required. Its compact size (94 × 19 × 69 mm) and flame-retardant plastic housing ensure safe, long-term operation in demanding environments.
Multiple layers of protection keep your home and equipment safe:
-
Overheating Protection: Internal temperature sensor monitors heat every 100ms and shuts off outputs if temperature exceeds 80°C
-
Overcurrent Protection: Automatic shutoff if current exceeds 16A + 10% for more than 5 seconds
-
Overvoltage Protection: Protects against dangerous voltage spikes that could damage connected appliances
-
Overpower Protection: Immediately switches off and sends notifications if power consumption exceeds safe limits
Z-Wave Smart Home Integration
The Wave Pro 1PM works seamlessly with all certified Z-Wave gateways, including popular smart home platforms like Home Assistant, SmartThings, Hubitat, Homey, and more. Z-Wave's interoperable protocol ensures devices from different brands communicate reliably, regardless of manufacturer.
The device supports Security 2 (S2) Authenticated encryption for the highest level of Z-Wave network security, protecting your home automation from unauthorised access. Over-the-air (OTA) firmware updates ensure your device stays current with the latest features and improvements.
Mesh networking functionality means the Wave Pro 1PM acts as a signal repeater, extending your Z-Wave network range and improving reliability throughout your property.
Ideal Applications
-
Residential automation: Control and monitor lighting circuits, outdoor lights, water heaters, or garage door openers
-
Commercial facilities: Automate and track energy use in restaurants, offices, retail stores, or warehouses
-
Rental properties: Monitor energy consumption per unit or common area to allocate costs accurately
-
Energy management: Identify phantom loads, optimise schedules, and reduce electricity bills
What's in the Box
- Shelly Wave Pro 1PM Z-Wave Smart Relay
- Quick Start Guide and Safety Documentation
Full Specifications
Power and Switching
| Power Supply |
110-240 V AC ±10%, 50/60 Hz |
| Power Consumption |
< 0.3 W |
| Maximum Switching Voltage (AC) |
240 V AC |
| Maximum Switching Current (AC) |
16 A |
| Power Metering |
Yes (integrated) |
| Output Channels |
1 (one-phase, 1-channel relay) |
Z-Wave Technology
| Z-Wave Chipset |
Z-Wave 800 Series (S800) |
| Z-Wave Product Type ID |
0x0002 |
| Z-Wave Product ID |
0x008B |
| Z-Wave Manufacturer ID |
0x0460 (Shelly Europe Ltd.) |
| Frequency Band (US/Americas) |
908.4 MHz |
| Frequency Band (EU/UK) |
868.4 MHz |
| Frequency Band (Australia) |
919.8 MHz |
| Maximum RF Output Power |
< 25 mW |
| Typical Indoor Range |
Up to 40 m (130 ft) |
| Repeater Function |
Yes (mesh networking) |
| SmartStart |
Yes (automatic inclusion via QR code) |
| Security |
Security 2 (S2) Authenticated |
| OTA Firmware Updates |
Yes (over-the-air) |
Protection Features
| Overheating Protection |
Yes (automatic shutoff at 80°C) |
| Overcurrent Protection |
Yes (16A + 10% for > 5s) |
| Overvoltage Protection |
Yes (240V AC + 15% for > 5s) |
| Overpower Protection |
Yes (with notifications) |
Physical Specifications
| Mounting |
DIN rail (standard electrical breaker box) |
| Dimensions (H × W × D) |
94 × 19 × 69 mm ±0.5 mm (3.70 × 0.75 × 2.71 in) |
| Weight |
61 g (2.15 oz) |
| Shell Material |
Flame-retardant plastic |
| Colour |
Red |
| Screw Terminal Torque |
0.4 Nm (3.54 lbin) |
| Conductor Cross Section (Green) |
0.5 to 2.5 mm² (20 to 14 AWG) |
| Conductor Cross Section (White) |
0.5 to 1.5 mm² (20 to 16 AWG) |
| Conductor Stripped Length (Green) |
6 to 7 mm (0.24 to 0.28 in) |
| Conductor Stripped Length (White) |
5 to 6 mm (0.20 to 0.24 in) |
Environmental
| Operating Temperature |
-20°C to 40°C (-5°F to 105°F) |
| Humidity |
30% to 70% RH |
| Maximum Altitude |
2000 m (6562 ft) |
Warranty and Compliance
| Warranty Period |
5 years (Shelly Wave Pro series) |
| Manufacturer |
Shelly Europe Ltd. |
| Part Numbers |
QPSW-0A1P16EU (EU), QPSW-0A1P16US (US), QPSW-0A1P16AU (AU) |
Specifications are sourced from the official manufacturer product page and may be updated. Note: The product line formerly known as "Shelly Qubino Wave" is now referred to as "Shelly Wave" with no changes to device functionality. A Z-Wave gateway (smart hub) is required for device configuration and is not included.
