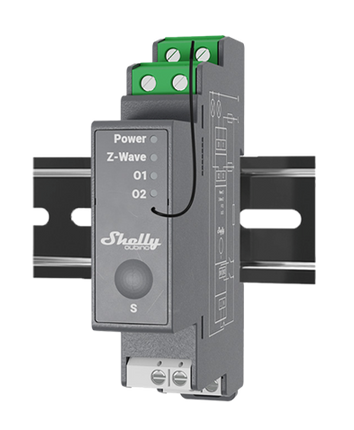

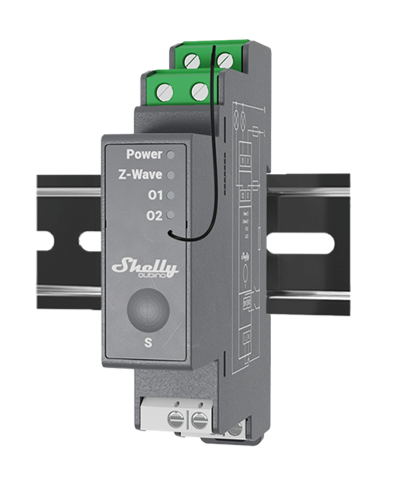

Shelly Wave Pro 2 Z-Wave Smart Relay 2-Channel 25A DIN Rail Switch
The Shelly Wave Pro 2 is a professional-grade 2-channel Z-Wave smart relay designed for DIN rail installation inside breaker boxes. Ideal for residential and commercial automation, this device supports 16A per channel (25A total) and features potential-free dry contacts for flexible voltage control. Built on the latest Z-Wave 800 chip (S800), the Wave Pro 2 delivers reliable wireless control with Security 2 (S2) AES-128 encryption and up to 40m indoor range. Perfect for automating lights, appliances, and electrical circuits in homes, offices, retail stores, and manufacturing facilities.
Key Features
-
2 Independent Channels: Control two separate electrical loads with 16A per output, 25A total device capacity
-
Dry Contact Outputs: Potential-free contacts offer high flexibility for various voltage applications
-
DIN Rail Mountable: Professional installation inside breaker boxes following global DIN rail standards
-
Z-Wave 800 Technology: Latest S800 chip generation with enhanced range and encryption
-
SmartStart Enabled: Quick QR code pairing for seamless Z-Wave network inclusion
-
Enhanced Safety: Overheating protection with temperature monitoring every 100ms
Professional Home & Facility Automation
Wave Pro 2 enables sophisticated automation scenarios for lights, appliances, and electrical systems. Create custom schedules, timers, and scenes to synchronise your environment with daily routines or business needs. The potential-free outputs (dry contacts) support a wide range of AC devices and voltages, making it suitable for professional installations in new construction or retrofit projects. Control connected devices remotely via the Shelly Smart Control app or any certified Z-Wave gateway.
Z-Wave Smart Home Integration
Compatible with over 4,000 certified Z-Wave devices and gateways, the Wave Pro 2 seamlessly integrates into existing smart home ecosystems. The device supports Security 2 (S2) encryption, providing the highest level of IoT security available. Z-Wave mesh networking ensures reliable communication throughout your home or facility, with automatic routing and self-healing capabilities. Note: A Z-Wave gateway (smart hub) is required to configure and control this device.
Safe & Reliable Operation
The Wave Pro 2 includes overheating protection with internal temperature sensors that monitor the device every 100 milliseconds. If unsafe temperatures or rapid temperature rises are detected, the device automatically turns off and sends notifications. All Shelly Pro components are manufactured with flame-resistant materials that maintain structural integrity even when exposed to high heat levels. Most Wave devices operate at less than 0.3W power consumption, ensuring energy-efficient operation.
Installation & Compatibility
Compatible with both switches (default) and push-buttons for manual control. Each toggle of a connected switch changes the relay output state. The device supports configurable power failure states, automatic on/off timers, and NO/NC (normally open/normally closed) output configuration. Professional installation is recommended, especially for breaker box mounting. Ensure minimum 1cm spacing between multiple Shelly devices for proper airflow and heat dissipation.
What's in the Box
- Shelly Wave Pro 2 relay module
- Quick start guide with DSK label
- Safety and installation instructions
Full Specifications
General
| Model |
Wave Pro 2 (EU) |
| Part Number |
QPSW-0A2X16EU |
| Product Type |
2-channel Z-Wave smart relay |
| Mounting |
DIN rail |
Electrical
| Channels |
2 independent outputs |
| Output Type |
Potential-free contacts (dry contacts) |
| Current per Channel |
16A maximum |
| Total Device Current |
25A maximum |
| Power Consumption |
Less than 0.3W (typical for Wave series) |
Wireless Technology
| Protocol |
Z-Wave (mesh network) |
| Chip Generation |
Z-Wave 800 (S800) |
| Security |
Security 2 (S2) AES-128 encryption |
| Range |
Up to 40m indoors |
| SmartStart |
Yes (QR code pairing) |
| Z-Wave Manufacturer ID |
0x0460 |
| Z-Wave Product Type ID |
0x0002 |
| Z-Wave Product ID |
0x008C |
Control & Features
| Switch Compatibility |
Switches and push-buttons |
| Overheating Protection |
Yes (monitors every 100ms) |
| Power Failure State |
Configurable |
| Timers |
Automatic on/off timers |
| Output Configuration |
NO/NC configurable |
Physical & Installation
| Terminals |
Screw terminals (0.4 Nm max torque) |
| Conductor Cross Section |
0.5 to 2.5 mm² / 20 to 14 AWG |
| Construction |
Flame-resistant materials |
| Operating Temperature |
Standard indoor conditions |
Warranty & Support
| Manufacturer Warranty |
5 years (Pro and Wave Pro series) |
| Manufacturer |
Shelly Europe Ltd. |
| Compatibility |
Over 4,000 certified Z-Wave devices |
Specifications are sourced from the manufacturer product page and may be updated.
