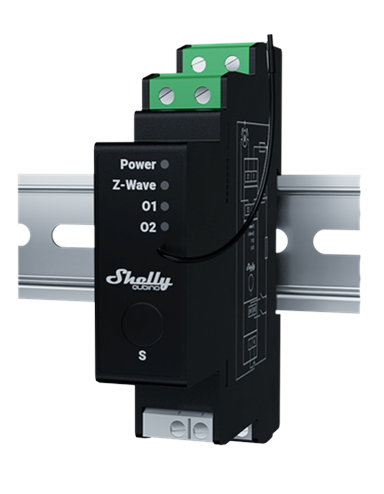

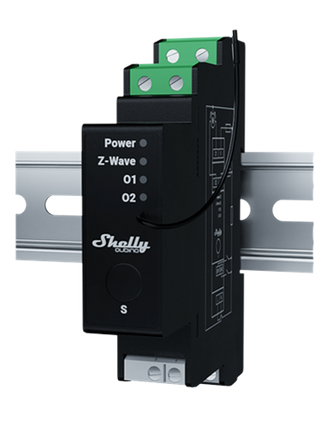

Shelly Wave Pro Shutter Z-Wave DIN Rail Smart Relay with Integrated Power Metering
The Shelly Wave Pro Shutter is a professional Z-Wave 800 DIN rail relay designed for intelligent control of motorized blinds, roller shutters, venetian blinds, awnings, and other bi-directional AC motor-driven window coverings. Supporting up to 16A per channel, this powerful module features integrated power metering to monitor energy consumption in real time, making it ideal for homes, offices, commercial buildings, and industrial facilities. With Security 2 (AES128) encryption, SmartStart compatibility, and seamless integration with over 4000 certified Z-Wave devices and gateways, the Wave Pro Shutter delivers professional-grade automation for your smart building project.
Key Features
-
Professional DIN Rail Installation: Designed for installation inside breaker boxes for clean, professional integration with no additional wiring
-
16A Per Channel Capacity: High-power relay supports demanding motorized shutter and blind applications
-
Integrated Power Metering: Monitor and control power consumption for each channel to optimize energy usage
-
Precise Position Control: Set exact opening and closing positions for shutters and blinds, with venetian blind slat angle control
-
Z-Wave 800 Technology: Latest Z-Wave chip generation (S800) ensures reliable, long-range wireless connectivity up to 40m indoors
-
Security 2 Certified: AES128 encryption provides the highest level of security for your Z-Wave network
-
SmartStart Compatible: Scan QR code for quick, automatic inclusion into your Z-Wave network
-
Advanced Protection: Built-in overheating, overvoltage, and overcurrent protection safeguards your installation
Professional Smart Automation
Transform your window coverings into intelligent, automated systems with the Wave Pro Shutter. Create custom schedules synchronized with your daily routine or business hours, set sunrise/sunset automation for natural light control, and build complex scenes combining multiple Z-Wave devices. The device supports both push-button/momentary switches and toggle switches, allowing retrofit installation behind existing wall controls to instantly upgrade them to smart operation.
Enhanced Safety and Reliability
Manufactured with flame-retardant materials for durability and safety, the Wave Pro Shutter includes comprehensive protection features. Overheating protection monitors temperature every 100ms and automatically shuts off outputs if temperature exceeds 80°C. Overvoltage protection safeguards against power surges, while overcurrent protection prevents damage from electrical faults. The device acts as a Z-Wave signal repeater, extending network range and improving reliability throughout your installation.
Flexible Motor Control
The Wave Pro Shutter is compatible with motors featuring electronic or mechanical limit switches, and supports both shutter mode and venetian blind mode. In venetian blind mode, control not only the vertical position but also the slat tilt angle for precise light and privacy management. Automatic calibration learns motor limit switch positions, while force calibration ensures accurate position reporting. Direct device associations enable automation scenarios such as automatically closing awnings during strong winds, with no gateway required for these local automations.
Universal Z-Wave Compatibility
Works seamlessly with over 4000 certified Z-Wave gateways and devices from all major manufacturers including SmartThings, Home Assistant, Hubitat, Fibaro, and more. The sub-GHz frequency operation ensures stable, reliable wireless communication without interference from Wi-Fi or Bluetooth devices. Compatible with both 110-240V AC power supplies for worldwide installation flexibility.
What's in the Box
- Shelly Wave Pro Shutter DIN rail module
- User guide and safety instructions
- Z-Wave DSK label with QR code for SmartStart
Full Specifications
Power and Load
| Power Supply |
110-240V AC, 50/60 Hz |
| Max Switching Current |
16A per channel |
| Max Switching Voltage |
240V AC (EU) / 120V AC (US) |
| Power Consumption |
<0.3W (typical for Wave devices) |
| Power Metering |
Integrated per channel (O1 and O2 combined reporting) |
Wireless Connectivity
| Protocol |
Z-Wave (Z-Wave Plus certified) |
| Z-Wave Chip |
S800 (latest generation) |
| Frequency |
868.4 MHz (EU) / 908.4 MHz (US) |
| Wireless Range |
Up to 40m indoors (with signal repeater function) |
| Security |
Security 2 (S2) with AES128 encryption |
| SmartStart |
Yes (QR code inclusion) |
| Signal Repeater |
Yes (extends Z-Wave network) |
Control and Features
| Operating Modes |
Shutter mode, Venetian blind mode |
| Position Control |
Precise percentage-based positioning |
| Slat Control |
Yes (venetian blind mode) |
| Switch Compatibility |
Push-buttons, momentary switches, toggle switches |
| Motor Compatibility |
Bi-directional AC motors with electronic or mechanical limit switches |
| Calibration |
Automatic and force calibration modes |
| Associations |
Up to 9 devices per group (5 recommended) |
Protection Features
| Overheating Protection |
Yes (automatic shutoff at 80°C after 5s) |
| Overvoltage Protection |
Yes (278V AC for EU / 138V AC for US +15% threshold) |
| Overcurrent Protection |
Yes (16A +10% for EU / 12.5A +10% for US) |
| Temperature Monitoring |
Every 100ms |
| Protection Disable |
No (always active for safety) |
Physical Specifications
| Mounting |
DIN rail (35mm standard) |
| Weight |
75g / 2.65 oz |
| Material |
Flame-retardant plastic |
| Operating Temperature |
-10°C to +40°C |
| Max Altitude |
2000m / 6562 ft |
| Terminals |
Screw terminals (0.4 Nm max torque) |
| Conductor Cross Section |
0.5-2.5 mm² / 20-14 AWG (green), 0.5-1.5 mm² / 20-16 AWG (white) |
Certifications and Warranty
| Z-Wave Certification |
Z-Wave Plus certified |
| Z-Wave Manufacturer ID |
0x0460 |
| Z-Wave Product Type ID |
0x0003 |
| Z-Wave Product ID |
0x0084 |
| Part Number |
QPSH-0A1P10EU (EU) / QPSH-0A1P10US (US) |
| Warranty |
5 years (Shelly Wave Pro devices) |
| Compliance |
FCC Part 15, CE, ISO 9001:2015, ISO 14001:2015, ISO 27001:2022 |
Specifications are sourced from the manufacturer product page and may be updated. Z-Wave gateway (smart hub) required for configuration and operation. Not included.
