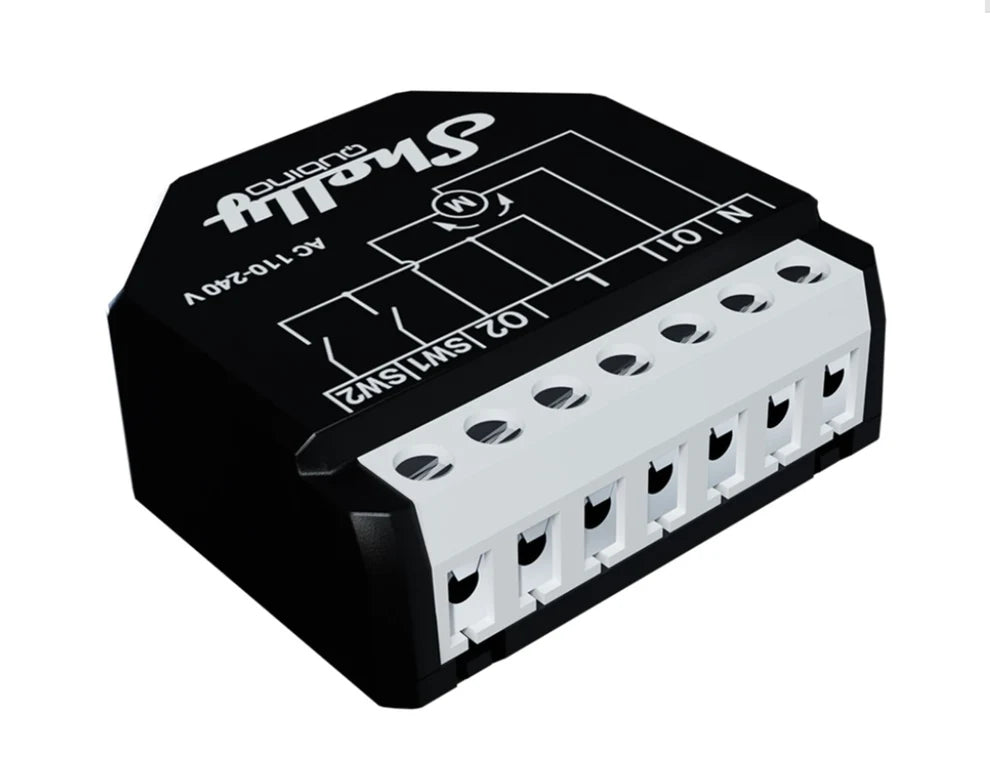

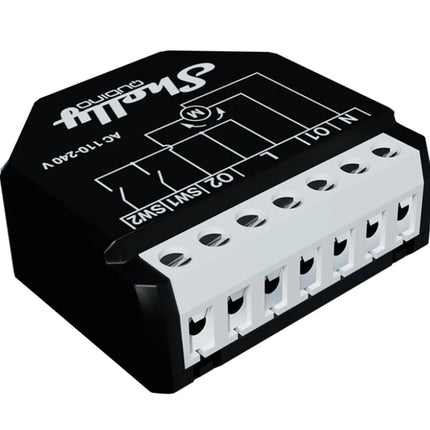

Shelly Wave Shutter Z-Wave Smart Controller with Power Monitoring
Transform your home into a smart living space with the Shelly Wave Shutter, a Z-Wave smart controller designed to automate and remotely control roller shutters, blinds, windows, awnings, pool covers, and other devices powered by bi-directional AC motors. With built-in power measurement and seamless integration with all certified Z-Wave gateways, this compact device brings intelligent automation to your window treatments, helping you save energy, enhance privacy, and improve comfort throughout your home.
Key Features
-
Z-Wave Smart Control: Works with the latest Z-Wave chip generation (S800) and is compatible with over 4000 certified Z-Wave devices and gateways
-
Power Monitoring: Integrated power meter tracks energy consumption up to 1100W, helping you monitor and optimize usage
-
Venetian Blind Support: Control the tilt position (angle) of venetian blind slats for precise light and privacy adjustment
-
Dual Control Options: Supports both manual operation via push-buttons or toggle switches and remote control through your Z-Wave gateway
-
Security 2 Encryption: AES128 encryption ensures the utmost safety of your Z-Wave network
-
SmartStart Ready: Automatic inclusion to your Z-Wave network for quick and easy setup
Smart Home Automation Made Easy
Create personalized schedules to align your blinds and shutters with your daily routine, or synchronize them with sunrise and sunset times for effortless automation. The Shelly Wave Shutter operates on a sub-GHz frequency, ensuring a stable and reliable wireless connection up to 40 metres indoors without interference. It also functions as a Z-Wave signal repeater, extending your network range for better coverage throughout your home.
Energy Efficiency and Climate Control
Maximize your home's energy efficiency by integrating the Wave Shutter with temperature sensors. Program your shutters to close automatically when the temperature rises, blocking excess heat and reducing air conditioning costs. In winter, open them to capture natural warmth from the sun. With less than 0.3W power consumption, the device itself uses minimal energy while helping you save on heating and cooling bills.
Compact and Professional Installation
The Shelly Wave Shutter features a compact design measuring just 37 × 42 × 16 mm and weighing only 29 grams, making it ideal for flush mounting behind existing switches or inside junction boxes. It supports 7A per channel and is equipped with overheating and overload protection for safe, reliable operation. The device is designed for professional installation and should be wired by a licensed electrician.
Compatibility and Associations
The Wave Shutter supports direct device-to-device communication through Z-Wave associations, enabling advanced automation scenarios without a gateway. For example, connect it with a Z-Wave wind sensor to automatically close your awnings when strong winds are detected, protecting your investment from weather damage. It works seamlessly with all Z-Wave certified gateways, including popular smart home hubs from leading manufacturers.
What's in the Box
- Shelly Wave Shutter controller
- User guide and safety manual
Full Specifications
| Model |
QNSH-001P10EU |
| Power Supply |
230V AC, 50/60Hz |
| Power Consumption |
< 0.3W |
| Max. Switching Current |
10A per channel (EU) |
| Max. Power |
1100W |
| Power Measurement |
Yes |
| Overheating Protection |
Yes |
| Overload Protection |
Yes (>1100W for >5 seconds) |
| Wireless Protocol |
Z-Wave (S800 chip) |
| Z-Wave Frequency |
868.4 MHz (EU) |
| Z-Wave Range |
Up to 40m indoors (131 ft.) |
| Z-Wave Repeater |
Yes |
| Security |
Security 2 (AES128 encryption) |
| SmartStart |
Yes |
| Operating Temperature |
-20°C to 40°C |
| Relative Humidity |
30-70% RH |
| Dimensions (H × W × D) |
37 × 42 × 16 mm (±0.5 mm) |
| Weight |
29g |
| Mounting |
Flush mounting |
| Control Inputs |
Push-buttons/momentary switches, toggle switches |
| Warranty |
3 years (Shelly Wave series) |
| Certifications |
EU Declaration of Conformity, UK PSTI Act Statement |
Specifications are sourced from the manufacturer product page and may be updated. A Z-Wave gateway (smart hub) is required for device configuration and is not included. Professional installation by a licensed electrician is recommended.
