Description

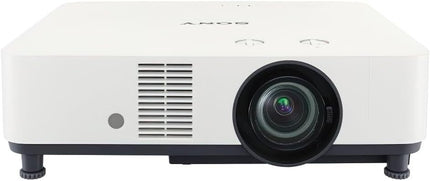

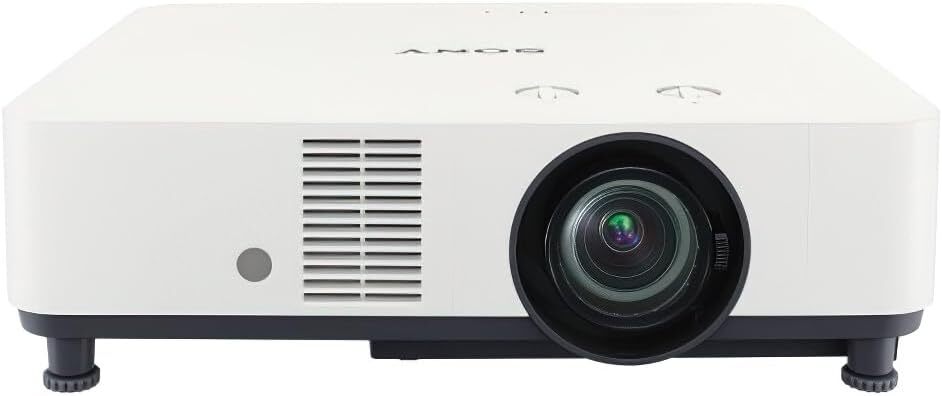

Impressively small, light 6,400/5,300 lumen* laser projectors
Beautifully slim and light with the smallest body in its class, the VPL-PHZ61/51 laser projector combines outstanding picture performance with up to 7,000lm centre brightness and impressive reliability. A discreet blend-in design, minimal maintenance needs and flexible installation options make it the natural partner for today’s integrated AV environments.
*VPL-PHZ61 6,400 lm (7,000 lm centre) / VPL-PHZ51 5,300 lm (5,800 lm centre).
21:9 support open doors to new applications
21:9 projection displays offer a new dimension of immersion and engagement across various applications, making them essential for those who seek to captivate, educate, and entertain. In addition to 16:10 and 16:9 aspect ratios, the VPL-PHZ61/51 will now also support 21:9 aspect ratio with 2560×1080 signal input allowing you to innovatively project ultra-wide hybrid meetings on larger screens that optimize visual presence of remote participants.
When combined with the Ambiance functionality, hybrid meetings are further enhanced by optimizing brightness, color, and resolution depending on the brightness of the conference room, making it easier than ever to see emotive expressions of remote meeting participants while displayed content is being shared.
Bold, rich colour even in brightly lit rooms
Even powerful projectors can suffer from washed-out colours in strongly-lit rooms. Exclusive to Sony, Bright View delivers high-impact imagery without sacrificing colour. Newly improved Reality Creation ensures images, diagrams and text look clear and sharp, even in bright conditions. Intelligent Settings with Ambiance matches projected images with your environment for an enhanced viewing experience. There’s even an ambient light sensor to measure room brightness.
Find out more about Reality Creation >
Clearer images and text
Reality Creation uses powerful algorithms that boost image resolution closer to 4K-like quality. Reality Text improves visibility of characters: great for conference rooms, university seminar rooms and large classrooms.
Bright, beautiful colours
Bright View is Sony’s unique processing technology that brightens images while maintaining rich colour – even in brightly-lit business and educational environments.
<!-- Could not download image: https://pro.sony/s3/2022/10/04101132/Icon3_Intelligent_Settings.png -->Enhanced viewing experience
Intelligent Settings with Ambiance uses a built-in light sensor to measure room brightness, automatically adjusting Bright View mode, colour gain and Reality Creation to suit your presentation environment.
Enjoy optimum pictures while saving energy
The VPL-PHZ61/51 makes sound business sense, helping you reduce running costs in corporate and educational environments. A new Auto Light Output feature works in conjunction with Ambiance, optimising image quality and maintaining high visibility while reducing power consumption.
Smart, installation friendly design
Enjoy flexible installation options with a generous +55% vertical lens shift range, making it easy to achieve perfectly-proportioned pictures without long pole mounts or keystone correction when the projector’s ceiling mounted. We’ve also widened the throw ratio range, simplifying replacement of a previously installed projector without the hassle of re-positioning an existing ceiling mount.
Brighter for longer with less maintenance
There’s plenty of innovation inside the VPL-PHZ61/51 to keep pictures looking clear and bright over the projector’s operational lifetime with minimal maintenance – in any environment.
Find out more about Intelligent Setting >
Designed with intelligence
Intelligent Settings simplifies installation and maximises performance based on usage, image detail, colour richness and fidelity, light output, cooling level and output noise. The Meeting/Classroom function controls laser output to keep brightness as high as possible for years of real-world use.
<!-- Could not download image: https://pro.sony/s3/2022/10/04102936/Keep-dust-out-of-the-picture.png -->Keep dust out of the picture
The projector’s laser light source is sealed to prevent dust accumulation and eliminate reduced brightness. The dedicated cooling duct structure for the projector’s 3LCD panels is covered with an air filter to prevent dust from entering.
Hassle-free filter care
Focus on great-looking images instead of time-consuming maintenance. The new dust filtration system makes changing filters a thing of the past for general use in classrooms and meeting rooms.* For heavier use in dusty environments there’s a new clogging sensor to advise when filter cleaning is needed. *Dust density < 0.03mg/m3 and operating time < 10,500 hours. (1,500 hours/year over 7 years.)
Data Cloning
Settings for one projector can be copied to other projectors using a USB memory drive. This greatly simplifies installation and set-up of multiple projectors.
Auto Input Select
The Auto Input Select feature automatically selects an active signal input, so there’s no need to change input each time a device is connected to the projector.
Auto Power On
Connect the VPL-PHZ61/51 to a switched-on computer, and the projector turns on automatically without having to operate the power button.
More picture power in every environment
Conference rooms
Impress your audience with large, vibrant images and sleek, contemporary styling.
Lecture halls
Engage every student in larger teaching spaces with crisp, high-brightness pictures.
Golf simulation
Reality Creation brings even more lifelike detail, colour and texture to each blade of grass.
All Specifications
Display System
| Display System |
3LCD System |
| Display Device |
0.64" (16.3 mm) x 3 BrightEra LCD Panel, Aspect Ratio: 16:10 |
| Number of Pixels |
6,912,000 (1920 x 1200 x 3) |
Projection Lens
| Focus |
Manual |
| Zoom |
Manual (Approx. 1.6x) |
| Lens Shift |
Vertical: -35% to +55%, Horizontal: ±15% |
| Throw Ratio |
1.23:1 to 1.97:1 |
Light Source
Screen Size
| Screen Size |
40” to 300” (1.02 m to 7.62 m, diagonally) |
Light Output
| Standard Mode |
6,400 lm (Typical) / 7,000 lm (Center) |
| Middle Mode |
4,700 lm |
Color Light Output
| Standard Mode |
6,400 lm |
| Middle Mode |
4,700 lm |
Image & Signal
| Contrast Ratio |
∞:1 (Full White / Full Black) |
| Horizontal Frequency |
15 kHz to 92 kHz |
| Vertical Scan Rate |
24 Hz to 92 Hz |
| Keystone Correction |
Horizontal: ±30°, Vertical: ±30° |
| Max Computer Signal Resolution |
1920 x 1200 |
| Video Signal Compatibility |
NTSC, PAL, SECAM, and all major HD formats up to 4096p |
Inputs / Outputs
| Input A |
Mini D-sub 15-pin (RGB / YPbPr), Stereo Mini Jack (Audio) |
| Input B |
HDMI (19-pin), HDMI Audio Supported |
| Input C |
HDMI (19-pin), HDMI Audio Supported |
| Input D |
HDBaseT (RJ45, Video/Audio/LAN/Control) |
| Video In |
Composite (Phono Jack), Audio Shared with Input A |
| Output |
Stereo Mini Jack (Audio Out) |
| Remote |
D-sub 9-pin (RS232C) |
| LAN |
RJ45 (10BASE-T / 100BASE-TX) |
| USB |
Type-A x2 (1 for Firmware Update, 1 for Power Supply) |
Speaker
OSD Languages
English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic, Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungarian, Greek, Czech, Slovak, Romanian
Acoustic Noise
| Standard Mode |
37 dB |
| Middle Mode |
34 dB |
Environment
| Operating Temp / Humidity |
0°C to 40°C / 20% to 80% (no condensation) |
| Storage Temp / Humidity |
-10°C to +60°C / 20% to 80% (no condensation) |
Power
| Requirements |
AC 100 V to 240 V, 50/60 Hz |
| Power Consumption (100–120 V) |
463 W |
| Power Consumption (220–240 V) |
434 W |
| Standby Mode (Low) |
0.5 W |
| Networked Standby Mode |
1 W (LAN), 21 W (All terminals/network active, speaker off) |
| Standby Activation Time |
Approx. 2 Minutes |
Dimensions & Weight
| Without Dust Filter |
422 x 100 x 333 mm |
| With Filter / Protrusions |
422 x 129 x 338 mm |
| Weight |
Approx. 7.0 kg (15 lbs) |
Included Accessories
