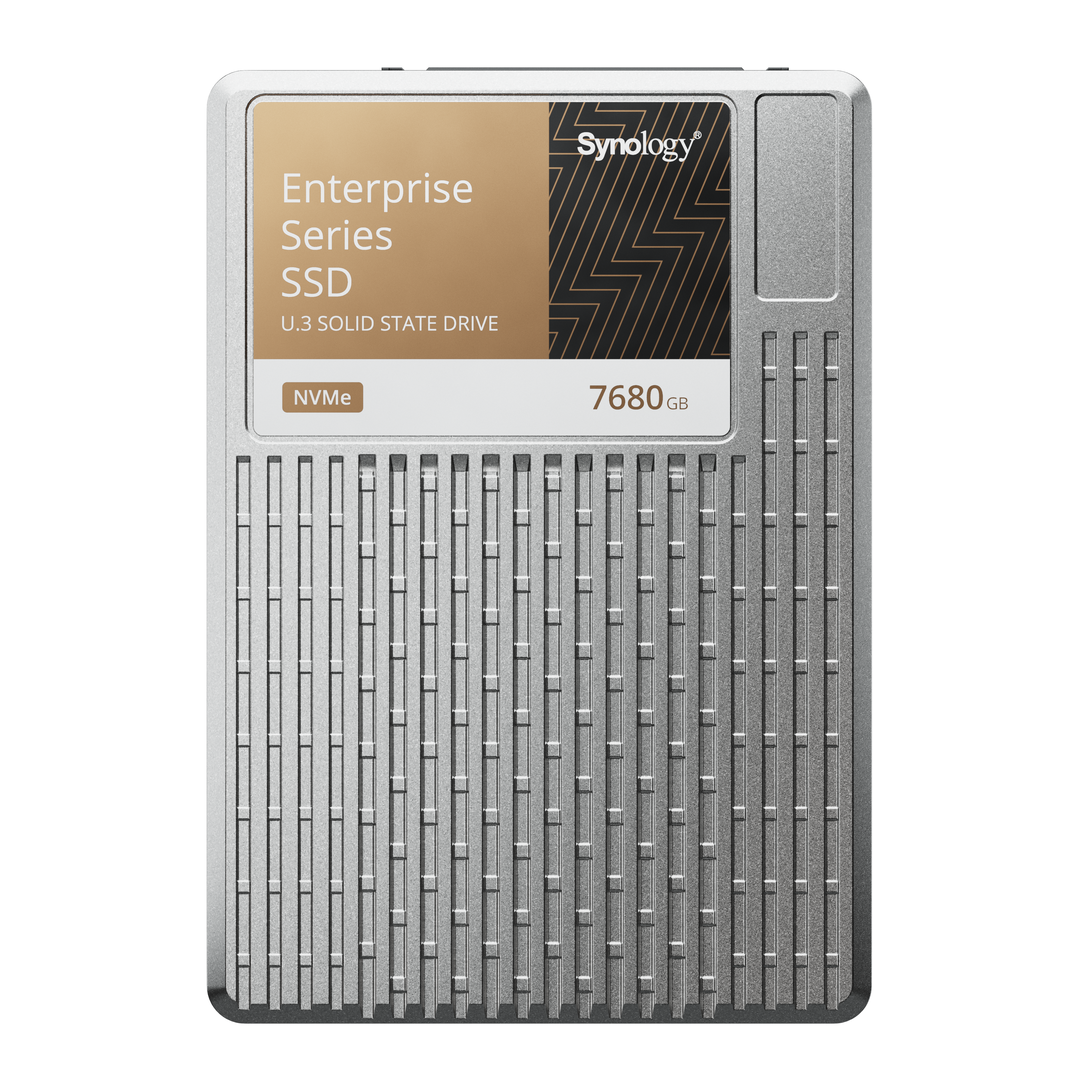

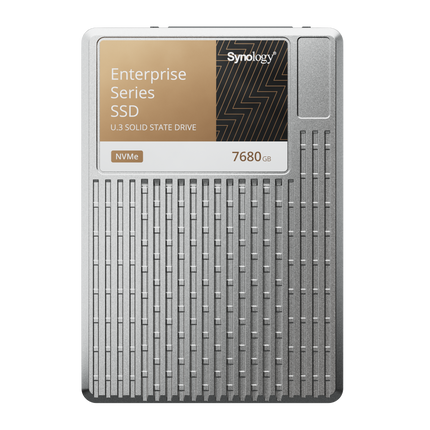

Synology SPU7200D-7680G 7.68TB Dual-Port U.3 NVMe Enterprise SSD
The Synology SPU7200D-7680G is a high-performance 7.68TB U.3 NVMe SSD engineered specifically for the Synology PAS7700 active-active all-flash storage system. Built for mission-critical enterprise workloads, this dual-port drive delivers uninterrupted access through multipathing, ensuring maximum uptime for demanding applications including business intelligence, data warehousing, AI/ML, virtualization, and OLTP databases. With blazing-fast sequential read speeds up to 7,000 MB/s and outstanding random IOPS performance, the SPU7200D-7680G is the ideal storage solution for Australian businesses seeking enterprise-grade reliability and performance.
Why Choose the Synology SPU7200D-7680G?
-
Massive 7.68TB capacity: Store vast amounts of data with enterprise-level 3D TLC NAND flash memory
-
Dual-port U.3 architecture: Ensures continuous operation and optimized performance via multipathing for zero downtime
-
Exceptional performance: Up to 7,000 MB/s sequential read, 4,000 MB/s sequential write, 1,250,000 random read IOPS, and 130,000 random write IOPS
-
Enterprise endurance: 14,016 TBW (terabytes written) rating with 2,500,000-hour MTBF for long-term reliability
-
Hardware-level security: AES-256 encryption with TCG Opal 2.0 compliance and PSID recovery support
-
5-year limited warranty: Backed by Synology's comprehensive support and hardware replacement services
Enterprise-Grade Performance for Demanding Workloads
Designed for the most intensive storage environments, the SPU7200D-7680G leverages the NVMe PCIe 4.0 x4 interface to deliver sustained high-speed data transfer. Whether you're running mixed enterprise workloads, virtualized environments, or high-transaction databases, this drive provides the low latency and consistent I/O performance your applications demand. The drive's 3D TLC NAND architecture ensures reliable performance across read-heavy, write-heavy, and mixed workloads.
Uninterrupted Access with Dual-Port Multipathing
Built for the Synology PAS7700 active-active architecture, the SPU7200D features dual-port connectivity that enables simultaneous access from multiple controllers. This multipathing capability ensures continuous data availability even during controller maintenance or unexpected failures, making it ideal for mission-critical environments where downtime is not an option.
Certified Data Security and Protection
Security is paramount in enterprise storage. The SPU7200D-7680G includes certified self-encrypting drive (SED) technology with hardware-based AES-256 encryption and TCG Opal 2.0 compliance, ensuring robust data-at-rest protection without compromising performance. The drive also features Physical Security ID (PSID) support for secure erasure and power loss protection with built-in capacitors that safeguard cached data during unexpected power failures, preventing data loss and maintaining integrity.
Seamless Integration with Synology DSM Enterprise
The SPU7200D series integrates tightly with Synology DSM Enterprise to provide continuous insights into drive health and workload performance. Administrators benefit from real-time alerts, endurance tracking, and usage analysis, enabling proactive maintenance planning and timely drive replacement. The system also supports one-click firmware updates, minimizing maintenance workload and reducing the risk of oversights.
Built to Last with Outstanding Reliability
With an endurance rating of 14,016 terabytes written (TBW) calculated using the JESD219A enterprise workload standard, and a mean time between failures (MTBF) of 2,500,000 hours, the SPU7200D-7680G is engineered for long-term, continuous operation in data centres and enterprise environments. The uncorrectable bit error rate (UBER) of less than 1 sector per 1018 bits read ensures exceptional data integrity.
What's in the Box
- Synology SPU7200D-7680G 7.68TB U.3 NVMe SSD
- Documentation
Full Specifications
General
| Capacity |
7.68 TB |
| Form Factor |
2.5" 15mm |
| Interface |
NVMe PCIe 4.0 x4 (Single Port x4 lanes / Dual Port x2 lanes) |
| NAND Type |
3D TLC |
| Security |
SED (AES-256 Encryption, TCG Opal 2.0) |
Performance
| Sustained Sequential Read (128 KB, QD32) |
7,000 MB/s |
| Sustained Sequential Write (128 KB, QD32) |
4,000 MB/s |
| Sustained Random Read (4KB, QD64) |
1,250,000 IOPS |
| Sustained Random Write (4KB, QD64) |
130,000 IOPS |
Endurance and Reliability
| Terabytes Written (TBW) |
14,016 TB |
| Mean Time Between Failures (MTBF) |
2,500,000 hours |
| Uncorrectable Bit Error Rate (UBER) |
<1 sector per 1018 bits read |
| Power Loss Protection |
Yes |
| Warranty |
5-year limited warranty |
Power Consumption
| Supply Voltage |
12V |
| Active Read (Typical) |
15.1 W |
| Active Write (Typical) |
15 W |
| Idle |
5.58 W |
Environmental
| Operating Temperature |
0°C to 70°C (32°F to 158°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
Compatibility
| Designed For |
Synology PAS7700 Active-Active NVMe All-Flash System |
| Compatible Models |
SPU7200D-1920G, SPU7200D-3840G, SPU7200D-7680G |
Specifications are sourced from the manufacturer product page and may be updated. Performance specifications represent single-unit SSD performance results obtained from Synology's testing environment; actual performance may vary according to the host system's hardware and software setup.
