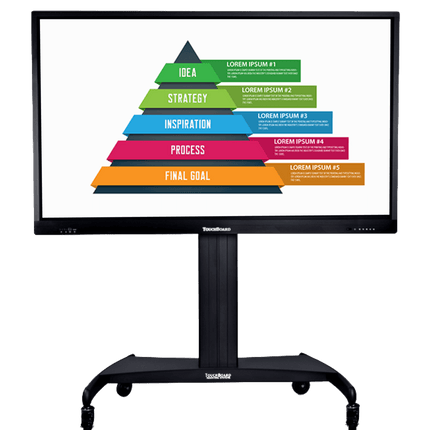

TouchBoard Mobile Height Adjustable System with Motorised Centre Lift
The TouchBoard Mobile Height Adjustable System with Centre Lift is designed to support modern LED Touch Screens up to 136kg with motorised electric height adjustment. Using a two-stage rigid aluminium lifting extrusion, this highly mobile mounting system provides a sleek, modern addition to any corporate, boardroom or education environment.
Modular and Flexible Design
This innovative system is modular in design, meaning it can be converted to a Wall Mount or Free Standing Height Adjustable System by simply removing the Mobile Base. This provides the ability to adapt with the changing needs of your organisation, offering unmatched flexibility and value.
-
Highly mobile: Easy to manoeuvre between areas and pack away when not required
-
Modular design: Convert to wall-mounted or free-standing configurations
-
Motorised height adjustment: Simple electronic actuator control for inclusive access
-
Aesthetically pleasing: More screen, less trolley
Robust Construction and Support
Built to be sturdy and robust, this mounting system supports panels up to 136kg with confidence. The system is ideal for larger LED touch panels and provides reliable, long-term performance in demanding environments.
-
Weight capacity: Supports LED touch screens up to 136kg
-
VESA compatibility: Supports VESA 400×400 up to 1200×600
-
Extended brackets: Optional brackets support VESA mounts up to 1470mm
-
Two-stage aluminium extrusion: Ensures smooth, reliable height adjustment
Inclusive Learning and Accessibility
Available in motorised electric height adjustable configuration, this system provides added flexibility and inclusive access for mixed or shared learning spaces, making it ideal for mobility-impaired users and diverse classroom environments.
Integrated Features and Accessories
-
Central laptop tray: Included as standard
-
Integrated power distribution board: With surge protection
-
Optional accessories: Side laptop tray, keyboard mount, PC mount, and webcam mount available
-
Fast installation: Installation process takes under 1 hour
What's in the Box
- TouchBoard Mobile Height Adjustable System - Centre Lift (TBMS-MOB-HA-CENT)
- Central laptop tray
- Mounting hardware and brackets (VESA 400×400 to 1200×600)
- Integrated power distribution board with surge protection
- Installation instructions
Full Specifications
| Model |
TBMS-MOB-HA-CENT |
| Maximum Load Capacity |
136kg |
| VESA Compatibility |
400×400 to 1200×600 (up to 1470mm with optional brackets) |
| Height Adjustment |
Motorised electric (two-stage aluminium lifting extrusion) |
| Construction |
High tensile steel and rigid aluminium materials |
| Mobility |
Mobile base with locking casters |
| Laptop Tray |
Central laptop tray included as standard |
| Power Distribution |
Integrated power board with surge protection |
| Modular Design |
Convertible to wall mount or free standing system |
| Application |
Corporate, boardroom, education, and presentation environments |
| Installation Time |
Under 1 hour |
| Optional Accessories |
Side laptop tray, keyboard mount, PC mount, webcam mount |
| Colour |
Black |
Specifications are sourced from the manufacturer product page and may be updated.
