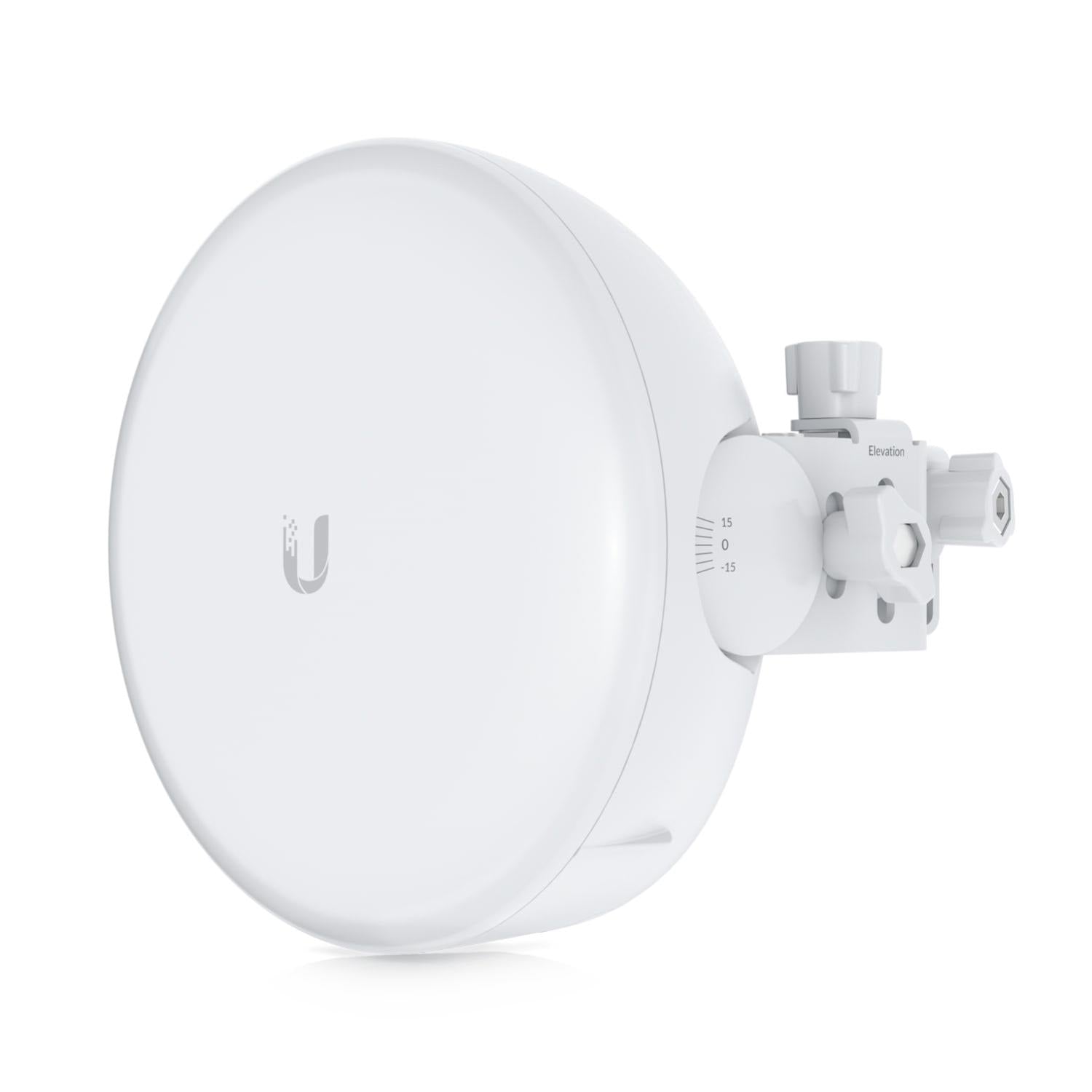

Ubiquiti GBE-Plus airMAX GigaBeam Plus 60 GHz Radio
The Ubiquiti GBE-Plus airMAX GigaBeam Plus is a high-performance 60 GHz wireless radio engineered for point-to-point (PTP) connectivity in WISP deployments, enterprise networks, and remote backhaul applications. With its integrated Cassegrain reflector design, this radio delivers 35 dBi antenna gain and achieves 1.5+ Gbps bidirectional throughput with ultra-low latency, making it ideal for high-bandwidth applications across distances up to 1.5+ km.
Why Choose the GigaBeam Plus?
Operating in the low-interference 60 GHz spectrum, the GBE-Plus provides clean, reliable wireless connectivity free from the congestion found in traditional 2.4 GHz and 5 GHz bands. The quad-core ARM Cortex A7 processor and 256 MB DDR3 memory ensure powerful processing for demanding network environments, while the Gigabit Ethernet RJ45 port supports full-speed wired connectivity.
Key Features
-
60 GHz High-Gain Radio: 35 dBi antenna gain with integrated Cassegrain reflector for superior signal focus and range
-
1.5+ Gbps Throughput: Bidirectional gigabit speeds with very low latency for seamless data transfer
-
1.5+ km Link Range: Long-distance point-to-point connectivity for backhaul and edge deployment
-
Quick Setup via Bluetooth: Easy configuration through the UISP mobile app or web dashboard
-
Outdoor-Rated Design: UV-resistant polycarbonate and stainless steel construction, operates -40° to 60°C
-
Passive PoE Powered: 11W max power consumption, powered via included 24V Gigabit PoE adapter
Advanced Connectivity & Management
The GBE-Plus features Gigabit Ethernet connectivity (10/100/1000 Mbps) and supports management via Ethernet in-band and Bluetooth for initial setup and alignment. Running airOS, the radio operates in PtP master or station mode with WPA2 AES encryption for secure wireless links. Integration with the UISP platform enables centralized monitoring, configuration, and network management across multiple devices.
Rugged, Reliable Construction
Built for harsh outdoor environments, the GBE-Plus is housed in a compact Ø155 × 137 mm enclosure made from UV-resistant polycarbonate and stainless steel. It withstands wind loading up to 50 N at 200 km/h and operates in temperatures ranging from -40°C to 60°C with 5-95% noncondensing humidity. Integrated ESD/EMP protection (±24kV) safeguards against electrical surges.
Ideal Applications
- High-throughput wireless backhaul for ISPs and WISPs
- Point-to-point links for enterprise campus networks
- Remote site connectivity and last-mile solutions
- Video surveillance network backhaul
- Disaster recovery and temporary network deployment
What's in the Box
- GBE-Plus 60 GHz Radio Unit
- 24V, 0.5A Gigabit PoE Adapter
- Mounting Bracket
- Installation Guide
Full Specifications
Hardware
| Processor |
Quad-Core ARM Cortex A7 |
| Memory |
256 MB DDR3 |
| Networking Interface |
10/100/1000 Mbps Ethernet RJ45 |
| Management Interface |
Ethernet In-Band, Bluetooth |
| RF Connections |
Internal |
Radio Frequency
| Operating Frequency |
57,000 - 66,000 MHz (60 GHz band, region dependent) |
| Channel Bandwidth |
2160 MHz |
| Operating Channels |
58320, 60480, 62640, 64800 MHz |
| Antenna Gain |
35 dBi |
| Beamwidth |
3° (Azimuth & Elevation, -6 dB) |
| Max Conducted TX Power |
17 dBm |
| Throughput |
1.5+ Gbps bidirectional |
| Link Range |
1.5+ km |
| Bluetooth Radio |
2400 - 2483.5 MHz |
Power
| Max Power Consumption |
11W |
| Power Method |
Passive PoE (Pairs 4, 5+; 7, 8-) |
| Power Supply |
24VDC, 0.5A Gigabit PoE Adapter (included) |
| Supported Voltage Range |
22 to 26 VDC |
| ESD/EMP Protection |
Air/Contact: ±24kV |
Environmental
| Operating Temperature |
-40° to 60°C (-40° to 140°F) |
| Operating Humidity |
5 to 95% noncondensing |
| Certifications |
FCC, IC, CE |
Mechanical
| Dimensions |
Ø155 × 137 mm (Ø6.1 × 5.4") |
| Weight (without mount) |
1 kg (2.2 lb) |
| Enclosure Materials |
UV-resistant polycarbonate, stainless steel |
| Mount Materials |
Metal |
| Wind Loading |
50 N at 200 km/h (11.24 lbf at 125 mph) |
Software
| Operating System |
airOS |
| Operating Modes |
PtP as Access Point or Station |
| Security |
WPA2 AES only |
| Management Platform |
UISP (web/mobile app) |
| Tools |
Antenna alignment, discovery utility, traceroute, speed test |
Specifications are sourced from the manufacturer product page and may be updated.
