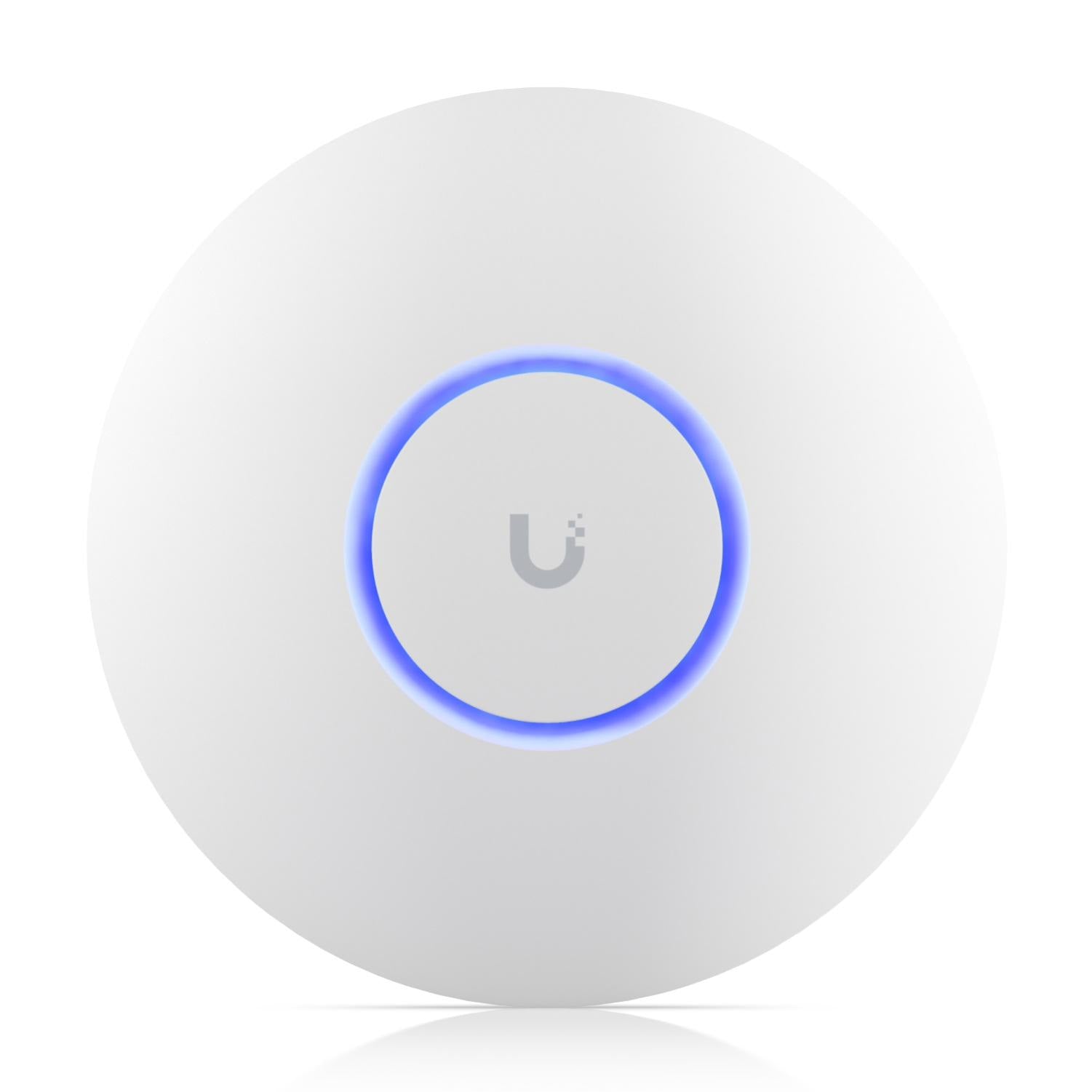

Ubiquiti U6-Plus Wi-Fi 6 Dual-Band Access Point
The Ubiquiti U6-Plus is a compact ceiling-mounted Wi-Fi 6 access point designed to deliver exceptional wireless performance for small and medium-sized businesses. With 4 spatial streams and dual-band Wi-Fi 6 (802.11ax) technology, the U6-Plus offers up to 3 Gbps aggregate throughput and supports over 300 concurrent clients. Improving upon the popular U6 Lite, this access point brings higher performance and enhanced dual-band coverage, making it ideal for high-density environments like offices, retail spaces, and educational institutions.
Why Choose the U6-Plus?
-
Wi-Fi 6 Performance: Experience faster speeds and improved efficiency with dual-band 802.11ax technology delivering up to 2.4 Gbps on 5 GHz and 573.5 Mbps on 2.4 GHz
-
High-Density Support: Connect over 300 devices simultaneously with 2x2 MU-MIMO on both bands for seamless connectivity in busy environments
-
Wide Coverage Area: Provides reliable wireless coverage across up to 140 square metres (1,500 square feet), perfect for small to medium business spaces
-
Simple PoE Installation: Powered by 802.3af PoE with just 9W max consumption, enabling single-cable installation for power and data
-
Flexible Mounting: Includes ceiling and wall mounting hardware for versatile installation options to suit any space
-
UniFi Network Management: Manage, monitor, and configure your network centrally through the intuitive UniFi Network platform
Advanced Wi-Fi 6 Technology
The U6-Plus harnesses the power of Wi-Fi 6 (802.11ax) to deliver faster speeds, greater capacity, and improved performance in congested environments. With 2x2 MIMO on both 2.4 GHz and 5 GHz bands, this access point ensures efficient data transmission and reduced latency for bandwidth-intensive applications like video conferencing, cloud services, and large file transfers. The U6-Plus supports 160 MHz channel bandwidth on 5 GHz, enabling maximum throughput for compatible Wi-Fi 6 devices while maintaining backward compatibility with legacy 802.11a/b/g/n/ac devices.
Professional Network Management
Designed to integrate seamlessly with the UniFi Network ecosystem, the U6-Plus is managed through the free UniFi Network Application. This powerful platform enables centralized configuration, real-time monitoring, and advanced features like VLAN support, guest network isolation, and multiple BSSID broadcasting (up to 8 per radio). Scalable from single-site deployments to large multi-location networks, the UniFi platform provides professional-grade network management without the complexity or cost of traditional enterprise solutions.
Reliable Performance and Efficiency
Built for demanding business environments, the U6-Plus operates reliably across a wide temperature range of -30°C to 60°C. With 5.4 dBi antenna gain on 5 GHz and 3 dBi on 2.4 GHz, it delivers strong signal coverage and penetration. The access point's maximum transmit power of 23 dBm on both bands ensures robust connectivity throughout your space. Enhanced security features including WPA, WPA2, and WPA3 encryption protect your wireless network from unauthorized access.
Connectivity and Power
-
Networking Interface: 1 × Gigabit Ethernet RJ45 port
-
Power Method: 802.3af PoE (Power over Ethernet)
-
Power Consumption: Maximum 9W
-
Voltage Range: 44-57V DC
What's in the Box
- U6-Plus Access Point
- Ceiling mount bracket
- Wall mount bracket
- Mounting screws and hardware
- Installation guide
Full Specifications
Physical
| Dimensions |
Ø160 × 33 mm (Ø6.3 × 1.3 inches) |
| Weight |
338 g (without mount), 413 g (with mount) |
| Enclosure Materials |
Polycarbonate, aluminium |
| Mounting Options |
Ceiling, wall (mounts included) |
Wireless Performance
| Wi-Fi Standard |
Wi-Fi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac |
| Spatial Streams |
4 (2x2 on 2.4 GHz, 2x2 on 5 GHz) |
| MIMO Technology |
2x2 DL/UL MU-MIMO on both bands |
| Maximum Data Rate (5 GHz) |
2.4 Gbps (with 160 MHz channel bandwidth) |
| Maximum Data Rate (2.4 GHz) |
573.5 Mbps (with 40 MHz channel bandwidth) |
| Aggregate Throughput |
Up to 3 Gbps |
| Coverage Area |
140 m² (1,500 ft²) |
| Maximum Client Count |
300+ |
Radio Specifications
| 5 GHz Antenna Gain |
5.4 dBi |
| 2.4 GHz Antenna Gain |
3 dBi |
| 5 GHz Max TX Power |
23 dBm |
| 2.4 GHz Max TX Power |
23 dBm |
| Maximum BSSIDs |
8 per radio |
Networking
| Ethernet Interface |
1 × Gigabit Ethernet (RJ45) |
| Management Interface |
Ethernet |
| Management Platform |
UniFi Network Application |
Power
| Power Method |
802.3af PoE |
| Voltage Range |
44-57V DC |
| Maximum Power Consumption |
9W |
Environment
| Operating Temperature |
-30°C to 60°C (-22°F to 140°F) |
| Operating Humidity |
5% to 95% non-condensing |
Security
| Wireless Security |
WPA, WPA2, WPA3 |
| VLAN Support |
802.1Q |
Warranty
| Standard Warranty |
1 year (from authorized reseller) |
| Extended Warranty |
Available via UI Care (up to 5 years) |
Specifications are sourced from the manufacturer product page and may be updated.
