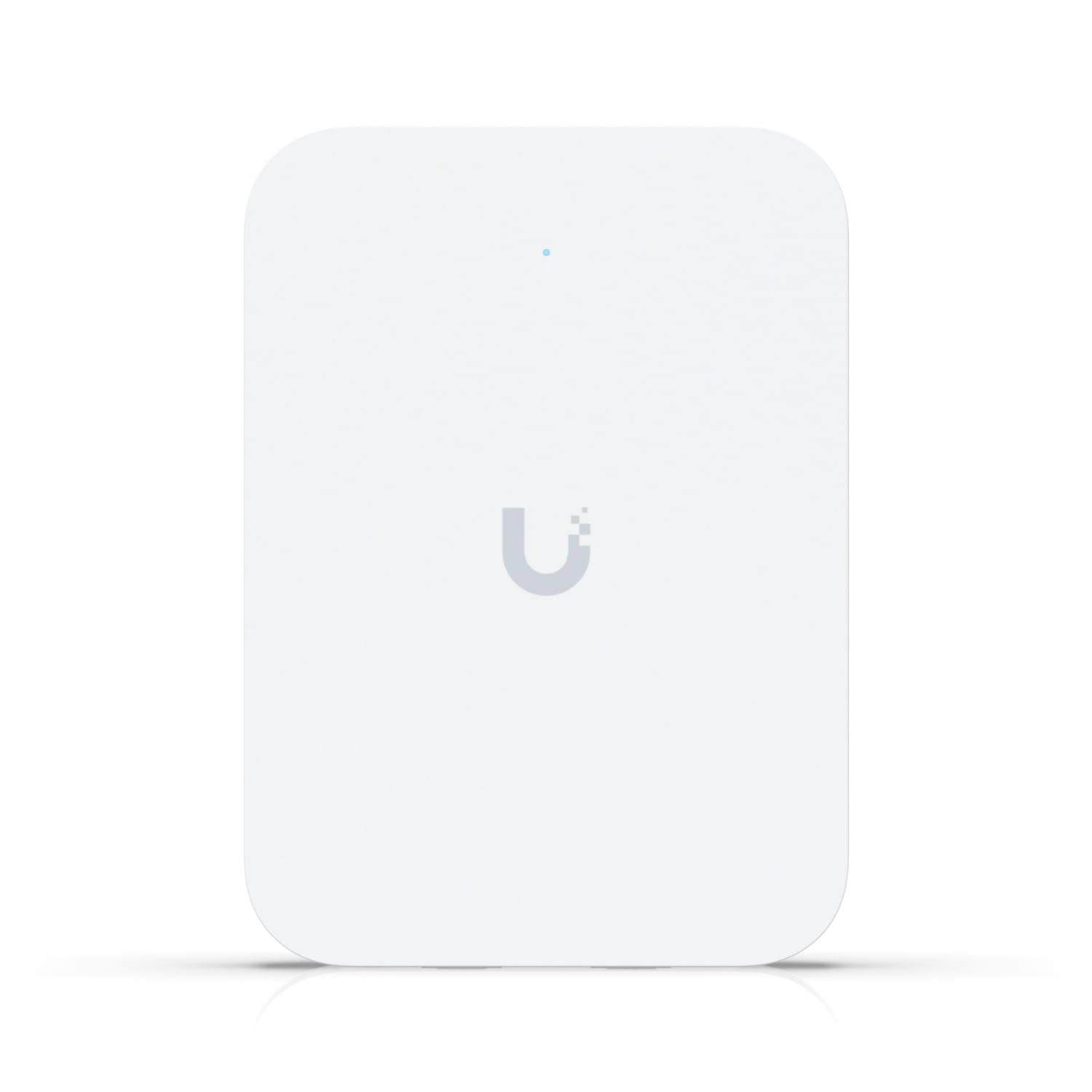

Ubiquiti UniFi U7 In-Wall WiFi 7 Access Point with Integrated 2.5GbE PoE Switch
The Ubiquiti U7-IW UniFi U7 In-Wall is a revolutionary WiFi 7 (802.11be) access point that combines ultra-fast wireless connectivity with a built-in 3-port 2.5 Gigabit Ethernet switch and PoE output. Designed for hotels, apartments, smart homes, and office environments, this compact wall-mounted AP delivers up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz, covering 115 m² (1,250 sq ft) and supporting 200+ simultaneous clients. With its sleek, low-profile design and powerful networking features, the U7-IW is perfect for installations requiring both WiFi and wired connectivity in a single, space-saving device.
Why Choose the Ubiquiti U7 In-Wall?
-
WiFi 7 Performance: Dual-band connectivity with 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz for blazing-fast wireless speeds
-
Integrated 2.5GbE Switch: Three 2.5 Gigabit Ethernet ports (1 PoE/PoE+ input, 2 LAN ports with 1 PoE output) for wired device connectivity
-
PoE Passthrough: Power downstream devices like IP cameras, phones, or additional APs using the PoE output port (requires PoE+ input)
-
Extensive Coverage: 115 m² coverage area with high-gain antennas (8 dBi at 5 GHz, 4 dBi at 2.4 GHz)
-
High Client Capacity: Supports 200+ concurrent devices with 2×2 MU-MIMO and OFDMA technologies
-
UniFi Ecosystem Integration: Seamlessly managed via UniFi Network Controller for centralised monitoring and configuration
WiFi 7 Dual-Band Performance
The U7-IW harnesses the power of WiFi 7 (802.11be) technology with 4 spatial streams and 2×2 MU-MIMO to deliver exceptional wireless performance. The 5 GHz band offers up to 4.3 Gbps using 240 MHz channel bandwidth, while the 2.4 GHz band provides 688 Mbps with 40 MHz bandwidth. Backward compatible with WiFi 6, WiFi 5, and WiFi 4, this AP ensures all your devices stay connected at optimal speeds. Internal antennas with 8 dBi gain at 5 GHz and 4 dBi at 2.4 GHz maximise signal strength and reliability throughout your space.
Built-In 2.5 Gigabit Ethernet Switch
More than just a wireless access point, the U7-IW features an integrated 3-port 2.5 Gigabit Ethernet switch, making it ideal for hospitality environments, smart homes, and offices where both wireless and wired connectivity are essential. The device includes:
-
1 × 2.5GbE PoE/PoE+ Input Port: Uplink port for network connectivity and power
-
1 × 2.5GbE LAN Port: Standard Ethernet port for wired devices
-
1 × 2.5GbE PoE Output Port: Powers downstream PoE devices (requires PoE+ input to access point)
This versatile design allows you to connect IP cameras, VoIP phones, smart displays, or additional access points directly to the U7-IW, reducing cable clutter and simplifying installations.
Compact Wall-Mounted Design
Measuring just 137 × 98.7 × 30.2 mm and weighing 400 grams, the U7-IW is designed for discrete in-wall or surface mounting. The included metal wall mount bracket enables flexible installation options, including standard junction box mounting or direct surface mounting. Its clean, modern aesthetic blends seamlessly into residential and commercial environments, making it perfect for hotel rooms, apartments, conference rooms, and classrooms.
UniFi Network Management
The U7-IW integrates seamlessly into the Ubiquiti UniFi ecosystem, offering centralised management through the UniFi Network Controller software. When paired with a UniFi Cloud Gateway, the access point can be adopted with a single click and managed alongside your entire network infrastructure. Advanced features include:
-
Band Steering: Automatically directs clients to optimal frequency bands
-
Wireless Meshing: Extends coverage wirelessly to additional APs
-
Captive Portal: Create custom guest hotspot authentication pages
-
VLAN Support: Segment network traffic for enhanced security
-
QoS Controls: Prioritise bandwidth for critical applications
The U7-IW can also function as a standalone access point on any network, managed via the UniFi mobile app for quick setup and configuration.
Ideal Applications
The Ubiquiti U7 In-Wall is purpose-built for environments where space is limited but connectivity demands are high:
-
Hospitality: Hotel rooms, serviced apartments, resorts
-
Residential: Smart homes, multi-dwelling units, bedrooms
-
Commercial: Office suites, meeting rooms, retail spaces
-
Education: Classrooms, dormitories, study areas
What's in the Box
- Ubiquiti UniFi U7 In-Wall Access Point (U7-IW)
- Metal wall mount bracket
- Mounting hardware
- Installation guide
Full Specifications
Wireless
| WiFi Standard |
WiFi 7 (802.11be), backward compatible with WiFi 6/5/4 |
| Frequency Bands |
2.4 GHz, 5 GHz (Dual-Band) |
| Spatial Streams |
4 (2×2 MU-MIMO on both bands) |
| Maximum Data Rate (5 GHz) |
4.3 Gbps (240 MHz bandwidth) |
| Maximum Data Rate (2.4 GHz) |
688 Mbps (40 MHz bandwidth) |
| Antenna Gain (5 GHz) |
8 dBi (internal) |
| Antenna Gain (2.4 GHz) |
4 dBi (internal) |
| Coverage Area |
115 m² (1,250 sq ft) |
| Maximum Client Count |
200+ |
Networking
| Uplink Port |
1 × 2.5 Gigabit Ethernet (RJ45, PoE/PoE+ input) |
| LAN Ports |
1 × 2.5 Gigabit Ethernet (RJ45)
1 × 2.5 Gigabit Ethernet (RJ45, PoE output) |
| Management |
UniFi Network Controller, UniFi mobile app |
Power
| Power Method |
PoE (802.3at) / PoE+ (802.3at, required for PoE output) |
| PoE Output |
Available on 1 port when PoE+ input is used |
Physical
| Dimensions |
137 × 98.7 × 30.2 mm (5.4 × 3.9 × 1.2") |
| Weight |
400 g (14.1 oz) |
| Mounting |
Wall (metal wall mount included), junction box compatible |
| Operating Temperature |
Indoor use |
| LED Indicator |
Status LED |
Specifications are sourced from the manufacturer product page and may be updated.
