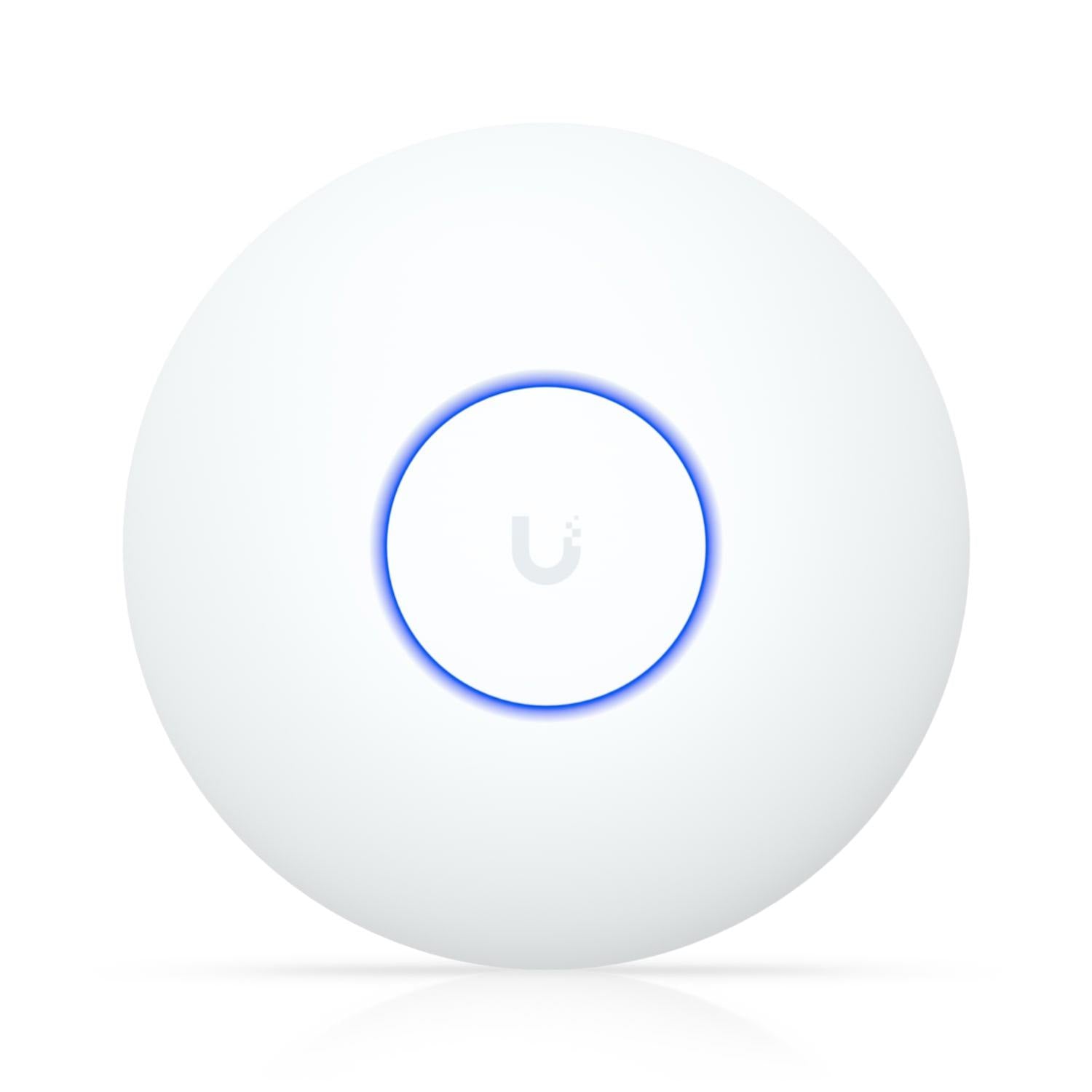

Ubiquiti U7-LITE WiFi 7 Dual-Band Access Point with 2.5GbE Uplink
The Ubiquiti U7-LITE UniFi Access Point is a compact, ceiling-mounted WiFi 7 (802.11be) access point designed to deliver next-generation wireless performance for homes, offices, and commercial environments. With 4 spatial streams, a 2.5 Gigabit Ethernet uplink, and support for 200+ concurrent devices, the U7-LITE provides ultra-fast speeds up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz, with coverage up to 1,250 ft² (115 m²). Powered via PoE, it simplifies installation and integrates seamlessly into UniFi networks for robust, scalable wireless connectivity.
Why You'll Love the U7-LITE
-
WiFi 7 Performance: Experience next-gen wireless with speeds up to 4.3 Gbps and lower latency for bandwidth-intensive applications
-
High Device Capacity: Supports 200+ simultaneous clients, perfect for high-density environments like offices, retail spaces, and multi-device homes
-
2.5GbE Uplink: Eliminates network bottlenecks with a high-speed uplink port, ensuring fast data transfer throughout your network
-
Compact & Discreet Design: Sleek ceiling or wall-mountable form factor blends seamlessly into any space
-
Advanced WiFi Features: Includes band steering, fast roaming (802.11r), MU-MIMO, OFDMA, and seamless wireless meshing for optimal performance
-
Simple PoE Deployment: Powered via Power-over-Ethernet with a maximum draw of just 13W, reducing cable clutter and installation complexity
Exceptional WiFi 7 Wireless Performance
The U7-LITE harnesses WiFi 7 (802.11be) technology with dual-band 2.4 GHz and 5 GHz operation, offering maximum data rates of 4.3 Gbps (BW240) on 5 GHz and 688 Mbps (BW40) on 2.4 GHz. With 2 × 2 DL/UL MU-MIMO on both bands, the access point efficiently handles multiple simultaneous connections, making it ideal for streaming, video conferencing, gaming, and other high-demand applications. It's also backward compatible with WiFi 6 (802.11ax), WiFi 5 (802.11ac), and WiFi 4 (802.11n), ensuring seamless connectivity for all your devices.
High-Density Coverage for Modern Networks
Designed for environments with many connected devices, the U7-LITE delivers reliable coverage over up to 115 m² (1,250 ft²) and supports over 200 concurrent clients. Whether you're deploying it in a busy office, retail location, classroom, or smart home, the U7-LITE ensures consistent, high-speed wireless connectivity. Its 5 dBi antenna gain on 5 GHz and 4 dBi on 2.4 GHz provide strong, stable signal coverage.
Advanced Radio & Guest Management
The U7-LITE includes a comprehensive suite of enterprise-grade features for network control and security:
-
Wireless Meshing: Easily extend your network without additional cabling
-
Band Steering, Fast Roaming (802.11r), BSS Transition Management (802.11v), and RRM (802.11k): Ensure devices connect to the optimal band and access point
-
Passpoint (Hotspot 2.0): Simplify guest access with automatic, secure authentication
-
Captive Hotspot Portal: Customise branding, vouchers, payment, and password authentication for guest networks
-
Enhanced Security: Guest network isolation, Private Pre-Shared Key (PPSK), WiFi speed limiting, client device isolation, WiFi schedules, RADIUS over TLS (RadSec), and dynamic RADIUS-assigned VLAN
-
Industry-Standard Encryption: Supports WPA, WPA2, and WPA3 for robust wireless security
Flexible Installation & Durable Design
The U7-LITE's compact, ceiling-mountable design (also wall-mountable) allows for discreet installation in virtually any environment. The access point features a UV-stabilised polycarbonate enclosure for durability and operates reliably in a wide temperature range from –30 to 40°C (–22 to 104°F). It's powered exclusively via PoE with a maximum power consumption of 13W, making it compatible with any active PoE switch or injector, including UniFi routers with built-in PoE ports.
UniFi Ecosystem Integration
The U7-LITE is designed to work seamlessly within the UniFi Network ecosystem, managed by a UniFi console (such as UDM, UDR, or Cloud Key) or via the UniFi mobile app. Adoption is a one-click process, and in-depth radio and SSID customisation is available. The access point can also function as a standalone AP for third-party networks when managed via the UniFi mobile app. Management requires UniFi Network version 9.0.114 or later (iOS 10.20.2+ / Android 10.21.7+ for mobile app).
What's in the Box
- U7-LITE Access Point
- Lite Mount (for ceiling or wall installation)
- Mounting hardware
- Installation guide
Full Specifications
WiFi Performance
| WiFi Standard |
WiFi 7 (802.11be), backward compatible with WiFi 6 / 5 / 4 |
| Frequency Bands |
Dual-band: 2.4 GHz & 5 GHz |
| Spatial Streams |
4 (2 × 2 DL/UL MU-MIMO on 5 GHz and 2.4 GHz) |
| Max. Data Rate (5 GHz) |
4.3 Gbps (BW240) |
| Max. Data Rate (2.4 GHz) |
688 Mbps (BW40) |
| Antenna Gain (5 GHz) |
5 dBi |
| Antenna Gain (2.4 GHz) |
4 dBi |
| Max. TX Power (5 GHz) |
24 dBm |
| Max. TX Power (2.4 GHz) |
23 dBm |
| Max. BSSIDs |
8 per Radio |
Coverage & Capacity
| Coverage Area |
115 m² (1,250 ft²) |
| Max. Client Count |
200+ |
Network Interface
| Uplink |
1 × 2.5 Gigabit Ethernet RJ45 port |
| Power Method |
PoE (Power-over-Ethernet) |
| Max. Power Consumption |
13W |
Physical
| Dimensions |
ø171.5 × 33 mm (ø6.8 × 1.3") |
| Mounting |
Ceiling, Wall (Lite Mount included) |
| Enclosure |
UV-stabilised polycarbonate |
| Operating Temperature |
–30 to 40°C (–22 to 104°F) |
Advanced Features
| Wireless Meshing |
Yes |
| Band Steering |
Yes |
| Fast Roaming |
Yes (802.11r) |
| BSS Transition Management |
Yes (802.11v) |
| RRM |
Yes (802.11k) |
| MU-MIMO & OFDMA |
Yes |
| Passpoint (Hotspot 2.0) |
Yes |
| Captive Portal |
Yes (custom branding, vouchers, payment, password auth) |
| Security |
WPA, WPA2, WPA3, Guest isolation, PPSK, RadSec, dynamic VLAN |
Management & Compliance
| Management |
UniFi Network version 9.0.114+ (iOS 10.20.2+ / Android 10.21.7+) |
| Certifications |
CE, FCC, IC, Anatel |
| Compliance |
NDAA Compliant |
Specifications are sourced from the manufacturer product page and may be updated.
