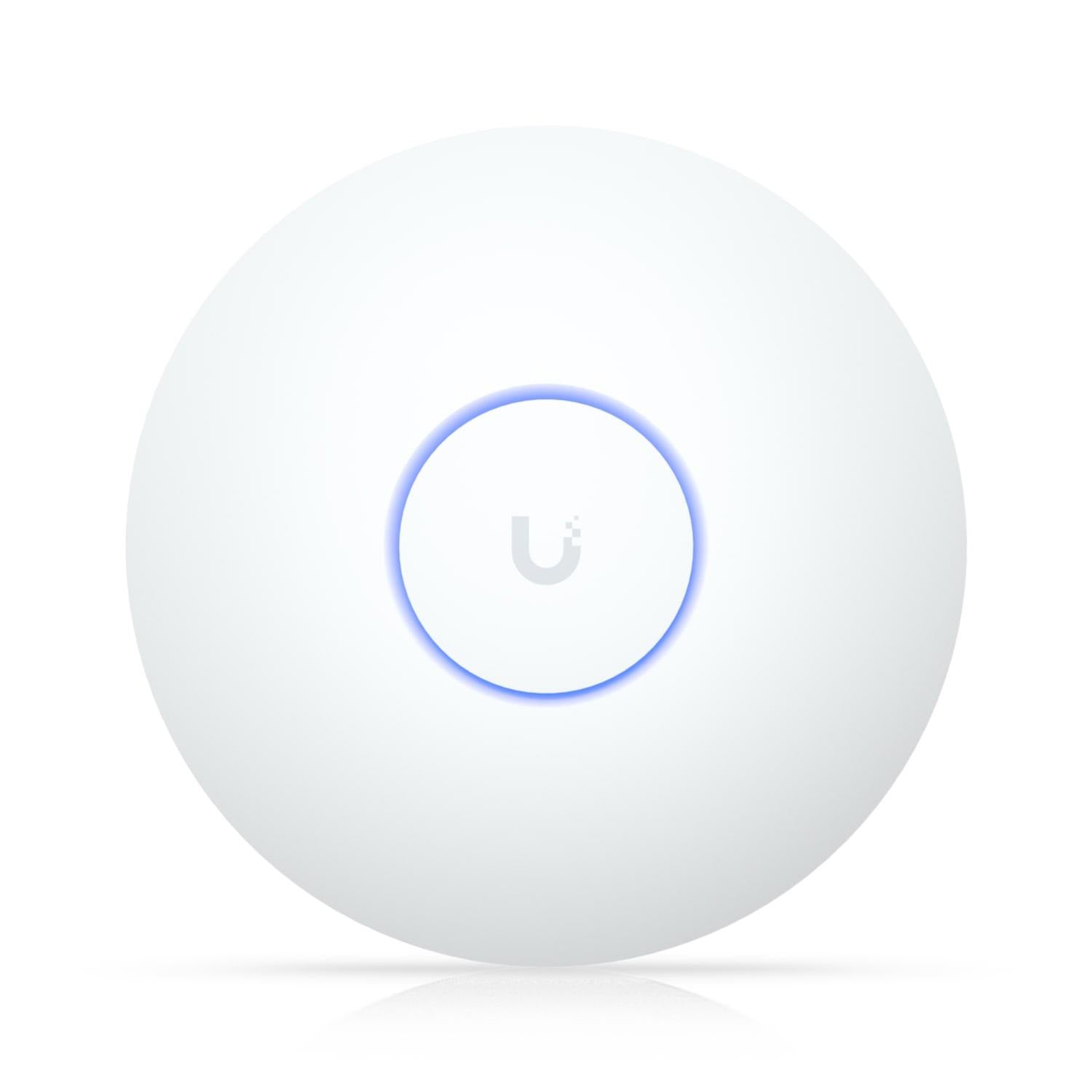

Ubiquiti U7-LR WiFi 7 Long-Range Access Point 4.3 Gbps 2.5GbE PoE
The Ubiquiti U7 Long-Range (U7-LR) is a high-performance dual-band access point powered by the latest WiFi 7 (802.11be) technology. Designed for enterprise, education, and large-scale deployments, the U7-LR delivers ultra-fast speeds up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz, exceptional range covering 160 m² (1,750 ft²), and support for over 300+ concurrent clients. With 5 spatial streams, a 2.5 Gigabit Ethernet PoE uplink, and advanced MU-MIMO technology, the U7-LR is perfect for high-density environments like offices, schools, warehouses, hotels, and public venues that demand reliable, long-range wireless connectivity.
Why You'll Love the Ubiquiti U7-LR
-
WiFi 7 Performance: Next-generation wireless with speeds up to 4.3 Gbps (5 GHz) and 688 Mbps (2.4 GHz) for lightning-fast connectivity
-
Extended Coverage: High-gain antennas (6 dBi @ 5 GHz, 4 dBi @ 2.4 GHz) provide exceptional long-range coverage up to 160 m²
-
High Client Capacity: Supports 300+ devices simultaneously, ideal for high-density office spaces, classrooms, and public areas
-
2.5 Gigabit Ethernet: Multi-gig backhaul eliminates bottlenecks and maximises WiFi 7 speeds
-
PoE Powered: Single-cable deployment with 802.3at PoE+ support (42.5–57V DC, 14W max)
-
Flexible Mounting: Ceiling or wall mounting options with included plastic mounting plate
Next-Generation WiFi 7 Technology
The U7-LR harnesses WiFi 7 (802.11be) to deliver blazing-fast throughput, reduced latency, and enhanced spectral efficiency. Backward compatible with WiFi 6, WiFi 5, and older standards, it supports EHT 20/40/80/160 MHz channels and advanced features like DL/UL MU-MIMO and OFDMA for superior performance in crowded wireless environments. Whether streaming 4K video, conducting video conferences, or running bandwidth-intensive applications, the U7-LR ensures seamless connectivity across all connected devices.
Extended Long-Range Coverage
Engineered for maximum reach, the U7-LR features integrated high-gain antennas (6 dBi on 5 GHz, 4 dBi on 2.4 GHz) and powerful transmit power (27 dBm @ 5 GHz, 26 dBm @ 2.4 GHz) to blanket large areas with fast, stable WiFi. Its long-range design makes it perfect for open office floors, campus buildings, retail spaces, and warehouses where comprehensive coverage is essential. With support for beamforming and MU-MIMO technologies, the U7-LR improves signal clarity and reduces dead zones even in challenging environments.
High-Density Client Support
Built to handle demanding deployments, the U7-LR supports over 300 concurrent clients, making it an ideal choice for schools, conference centres, hospitality venues, and enterprise networks. Its 3×3 MU-MIMO on 5 GHz and 2×2 MU-MIMO on 2.4 GHz ensure efficient multi-user performance, allowing multiple devices to communicate simultaneously without sacrificing speed or reliability.
Centralized UniFi Management
The U7-LR is fully managed through the UniFi Network Controller or UniFi Cloud Portal, providing an intuitive interface for centralized configuration, monitoring, and firmware management. IT administrators benefit from zero-touch provisioning, detailed traffic analytics, VLAN support, guest portal setup, advanced QoS policies, and real-time client-level insights. Manage user access, define SSIDs per frequency band, and monitor network performance from anywhere with ease.
Multi-Gigabit Connectivity & PoE Power
Equipped with a single 2.5 Gigabit Ethernet (2.5 GbE) RJ45 port, the U7-LR eliminates wired backhaul bottlenecks and takes full advantage of WiFi 7's multi-gigabit speeds. Powered via 802.3at PoE+ with a maximum consumption of just 14W, the access point simplifies installation by requiring only a single cable for both power and data, reducing cabling complexity and enabling flexible placement options.
Compact, Professional Design
The U7-LR features a sleek, compact form factor measuring Ø175.7 × 43 mm (Ø6.9 × 1.7") and weighing 448 g (15.8 oz). Its minimalist design with a white/blue LED indicator blends seamlessly into modern office, educational, and commercial environments. The polycarbonate and aluminium alloy enclosure is durable and professional, while the included plastic mounting plate enables quick ceiling or wall installation.
Connectivity & Interfaces
-
(1) 2.5 Gigabit Ethernet (2.5 GbE) RJ45 port with PoE input
-
802.3at PoE+ powered (42.5–57V DC)
- Managed via UniFi Network Controller or UniFi Cloud Portal
What's in the Box
- UniFi U7 Long-Range Access Point
- Plastic Mounting Plate (for ceiling and wall mounting)
Full Specifications
WiFi Performance
| WiFi Standard |
WiFi 7 (802.11be); backward compatible with 802.11a/b/g/n/ac/ax |
| Frequency Bands |
2.4 GHz / 5 GHz (dual-band) |
| Spatial Streams |
5 total (5 GHz: 3×3 DL/UL MU-MIMO; 2.4 GHz: 2×2 DL/UL MU-MIMO) |
| Maximum Data Rate |
4.3 Gbps @ 5 GHz (BW160); 688 Mbps @ 2.4 GHz (BW40) |
| Supported Data Rates |
802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0–MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0–MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0–MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n and legacy standards |
| Channel Bandwidths |
HT/VHT/HE/EHT 20/40/80/160 MHz |
| Antenna Gain |
5 GHz: 6 dBi; 2.4 GHz: 4 dBi |
| Max. TX Power |
5 GHz: 27 dBm; 2.4 GHz: 26 dBm |
| Coverage Area |
160 m² (1,750 ft²) |
| Max. Client Count |
300+ |
Hardware & Interfaces
| Networking Interface |
(1) 2.5 GbE RJ45 port |
| Management Interface |
Ethernet (via UniFi Network Controller or UniFi Cloud Portal) |
| Power Method |
PoE (802.3at PoE+) |
| Supported Voltage Range |
42.5–57V DC |
| Max. Power Consumption |
14W |
| LED Indicators |
System: White/Blue |
Physical Specifications
| Dimensions |
Ø175.7 × 43 mm (Ø6.9 × 1.7") |
| Weight |
448 g (15.8 oz) |
| Enclosure Material |
Polycarbonate, aluminium alloy |
| Mount Material |
Polycarbonate, galvanised steel (SGCC) |
| Mounting Options |
Ceiling, Wall (Plastic Mounting Plate included) |
What's in the Box
| Included Items |
UniFi U7 Long-Range Access Point, Plastic Mounting Plate |
Specifications are sourced from the manufacturer product page and may be updated.
