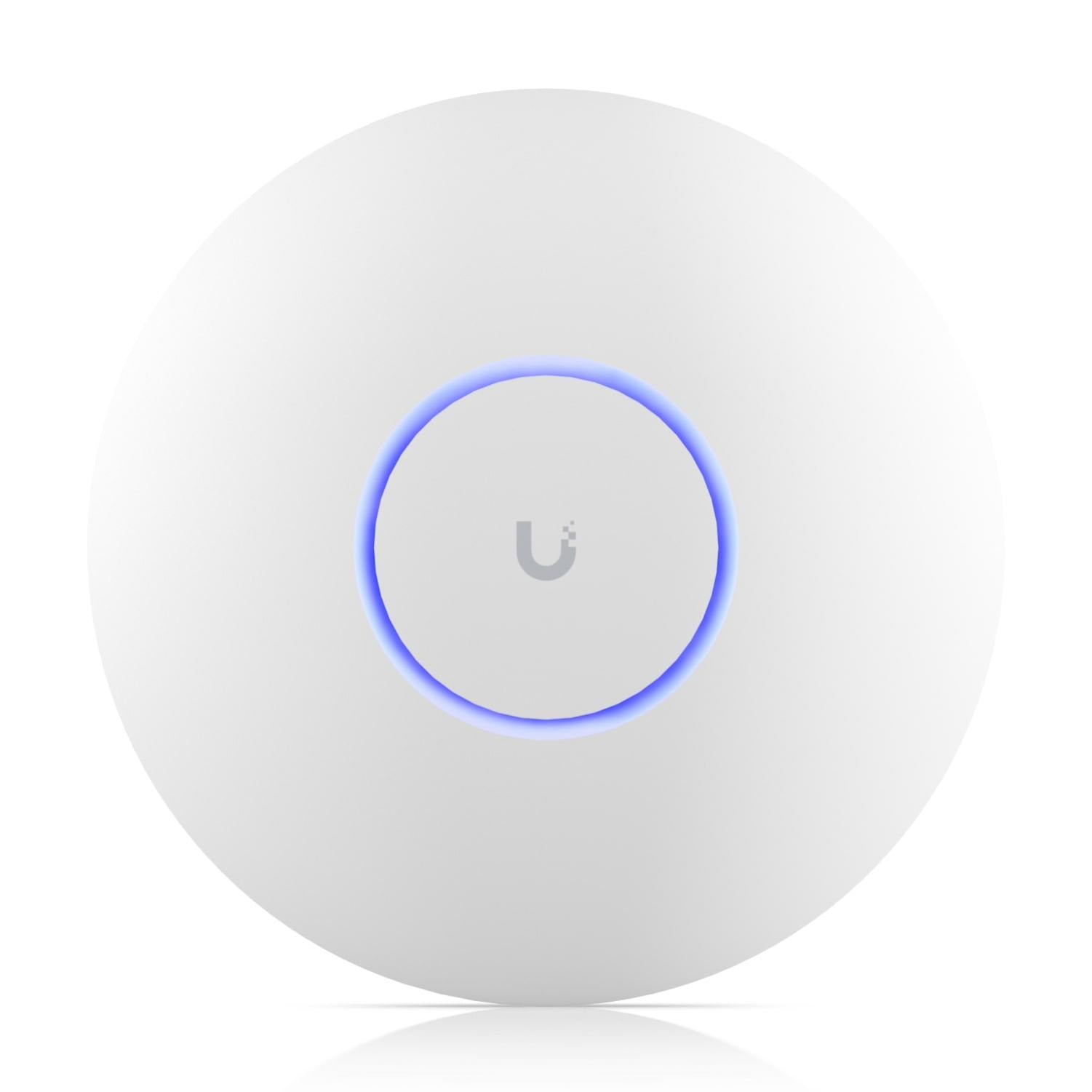

Ubiquiti U7-Pro WiFi 7 Tri-Band Access Point with 6 GHz Support
Experience next-generation wireless performance with the Ubiquiti U7-Pro, a cutting-edge WiFi 7 access point designed for demanding, high-density environments. Featuring 6 spatial streams and support for the 6 GHz band, this tri-band access point delivers interference-free connectivity with combined throughput speeds of up to 9.3 Gbps. Perfect for enterprise networks, educational institutions, large homes, and commercial spaces, the U7-Pro supports 300+ concurrent clients and covers up to 140 m² (1,500 ft²) with reliable, high-speed WiFi.
Why You'll Love the Ubiquiti U7-Pro
-
WiFi 7 Tri-Band Performance: Simultaneous 2.4 GHz, 5 GHz, and 6 GHz operation for maximum bandwidth and minimal interference
-
Lightning-Fast Speeds: Up to 5.8 Gbps on 6 GHz, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz for seamless 4K streaming, video conferencing, and large file transfers
-
High Client Density: Supports over 300 concurrent devices with 2 × 2 MU-MIMO on all three bands
-
6 GHz Interference-Free Band: Access the clean, uncongested 6 GHz spectrum for future-proof wireless connectivity
-
2.5 GbE Uplink: High-speed wired backhaul ensures no bottleneck between your access point and network
-
PoE+ Powered: Simple installation with Power over Ethernet (802.3at) – no separate power supply required
-
Pro Mount Included: Flexible ceiling or wall mounting for optimal coverage in any space
Advanced WiFi 7 Technology for Enterprise and Home
The U7-Pro leverages the latest 802.11be (WiFi 7) standard, delivering significantly improved efficiency, lower latency, and higher throughput compared to WiFi 6. With Multi-Link Operation (MLO) and advanced MU-MIMO technology, the U7-Pro ensures every connected device receives optimal performance, even in crowded network environments like offices, schools, retail spaces, or smart homes.
Seamless UniFi Ecosystem Integration
Manage the U7-Pro effortlessly through the UniFi Network application. Deploy, configure, and monitor your entire network from a single, intuitive interface. Enable advanced features such as guest traffic isolation, VLAN support (802.1Q), per-user rate limiting, and centralized firmware updates. The U7-Pro integrates seamlessly with UniFi switches, gateways, cameras, and other UniFi devices to create a unified, scalable network solution.
Built for Reliability and Performance
The U7-Pro features internal antennas with high gain across all bands (up to 6 dBi on 5 GHz), ensuring strong signal coverage and reliable connections. Operating temperatures from -30°C to 40°C make it suitable for a wide range of indoor environments. The sleek, low-profile design (206 mm diameter, 46 mm height) blends seamlessly into any ceiling or wall.
Full Specifications
Performance
| WiFi Standard |
WiFi 7 (802.11be) / WiFi 6E / WiFi 6 / WiFi 5 / WiFi 4 |
| Spatial Streams |
6 (2 × 2 per band) |
| MIMO |
2 × 2 DL/UL MU-MIMO (2.4 GHz, 5 GHz, 6 GHz) |
| Max. Data Rate (6 GHz) |
5.8 Gbps (320 MHz bandwidth) |
| Max. Data Rate (5 GHz) |
4.3 Gbps (240 MHz bandwidth) |
| Max. Data Rate (2.4 GHz) |
688 Mbps (40 MHz bandwidth) |
| Coverage Area |
140 m² (1,500 ft²) |
| Max. Client Count |
300+ |
| Max. BSSIDs |
8 per radio |
Radio Specifications
| Antenna Gain (6 GHz) |
5.8 dBi |
| Antenna Gain (5 GHz) |
6 dBi |
| Antenna Gain (2.4 GHz) |
4 dBi |
| Max. TX Power (6 GHz) |
23 dBm |
| Max. TX Power (5 GHz) |
26 dBm |
| Max. TX Power (2.4 GHz) |
23 dBm |
Hardware & Connectivity
| Networking Interface |
1 × 2.5 GbE RJ45 port |
| Management Interface |
Ethernet |
| Power Method |
PoE+ (802.3at) |
| Supported Voltage Range |
44–57V DC |
| Max. Power Consumption |
21W |
| Typical Power Consumption |
~10W (idle) |
Physical Specifications
| Dimensions |
Ø206 × 46 mm (Ø8.1 × 1.8") |
| Weight |
680 g (1.5 lb) |
| Enclosure Material |
Polycarbonate, metal |
| Mount Material |
Stainless steel (SUS304), galvanised steel (SGCC) |
| Mounting Options |
Ceiling, Wall (Pro Mount included) |
| Operating Temperature |
-30°C to 40°C (-22°F to 104°F) |
| Operating Humidity |
5 to 95% non-condensing |
Software Features
| Wireless Security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| VLAN Support |
802.1Q |
| Advanced QoS |
Per-user rate limiting |
| Guest Traffic Isolation |
Supported |
| Management |
UniFi Network application (Cloud or self-hosted) |
| Supported Data Rates |
802.11a/b/g/n/ac/ax/be (6 Mbps to 5.8 Gbps) |
Certifications
| Certifications |
CE, FCC, IC |
What's in the Box
- U7-Pro WiFi 7 Access Point
- Pro Mounting Bracket (for ceiling or wall installation)
- Mounting Hardware
- Installation Guide
Specifications are sourced from the manufacturer product page and may be updated.
