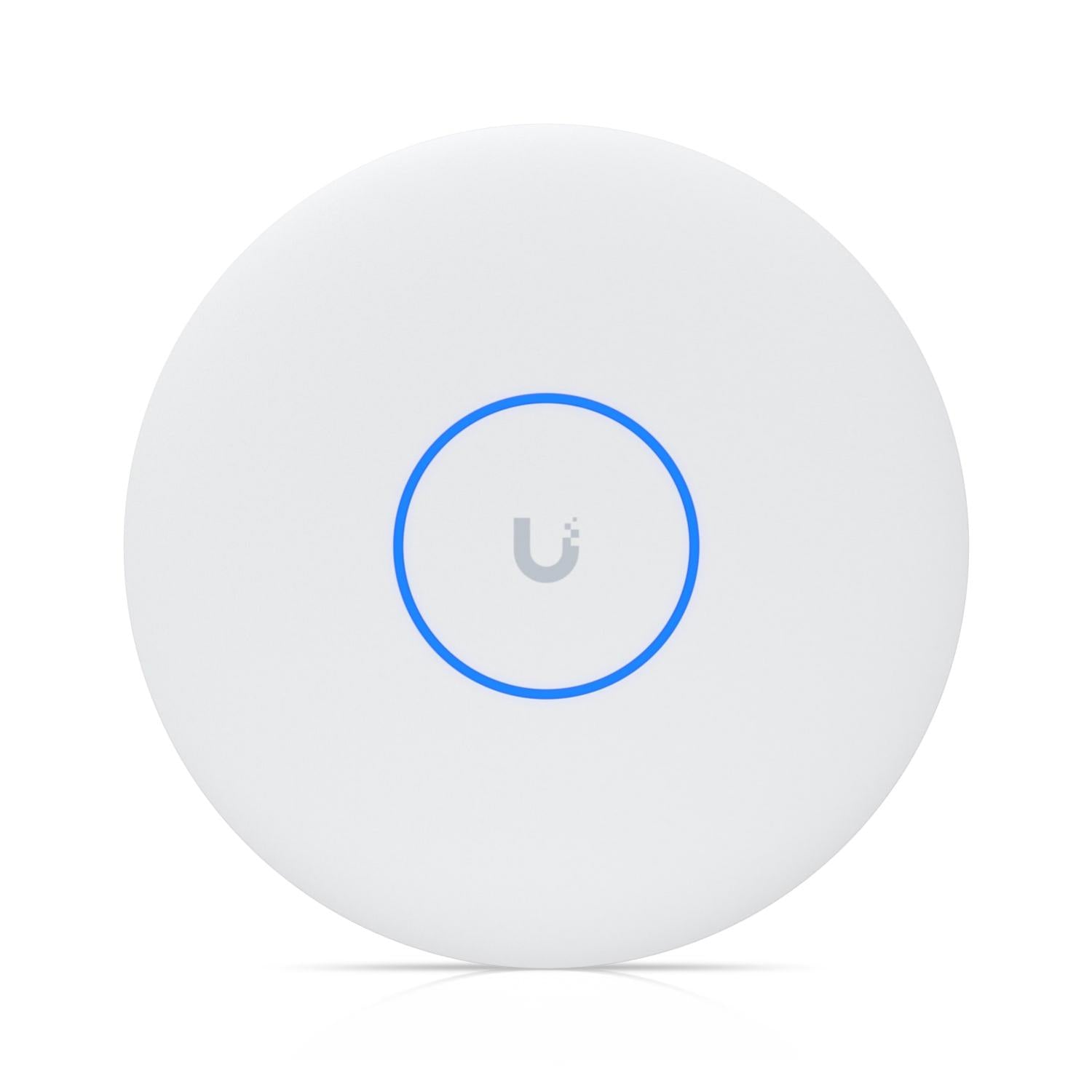

Ubiquiti U7-Pro-XGS WiFi 7 Access Point 8-Stream 10GbE PoE++
The Ubiquiti U7-Pro-XGS is a professional ceiling-mounted WiFi 7 access point with 8 spatial streams and a dedicated spectral scanning radio for superior network performance. With 10 Gigabit Ethernet uplink support and tri-band connectivity (2.4 GHz, 5 GHz, 6 GHz), this flagship AP delivers blazing-fast speeds up to 8.6 Gbps and supports 500+ concurrent devices, making it ideal for high-density office environments, educational institutions, healthcare facilities, and hospitality venues across Australia.
Key Features
-
WiFi 7 Technology: Next-generation wireless standard with Multi-Link Operation (MLO) for maximum throughput and reduced latency
-
8-Stream Tri-Band Design: 2x2 MIMO on 2.4 GHz and 6 GHz, plus 4x4 MIMO on 5 GHz for outstanding performance
-
10GbE Uplink Port: Future-proof connectivity with 10/5/2.5/1 GbE auto-negotiation for maximum flexibility
-
Dedicated Spectral Scanning Radio: Real-time RF analysis and interference detection for optimal channel selection
-
High Device Capacity: Support for 500+ simultaneous clients with exceptional reliability
-
PoE++ Powered: Simplified installation with 802.3bt power delivery (29W max consumption)
Enterprise-Grade Performance for Demanding Environments
The U7-Pro-XGS is engineered for high-density enterprise networks where performance is critical. The 4x4 MIMO configuration on 5 GHz delivers up to 8.6 Gbps throughput, while the 6 GHz band provides interference-free connectivity for WiFi 7 and WiFi 6E devices. The dedicated spectral scanning radio continuously monitors the RF environment, enabling zero-wait DFS capability and intelligent channel switching for consistently optimal performance.
Seamless UniFi Network Integration
Fully managed through the UniFi Network Controller, the U7-Pro-XGS integrates seamlessly into your existing UniFi ecosystem. Advanced features include wireless meshing, band steering, 802.11r fast roaming, guest network isolation, and granular Quality of Service (QoS) controls. Configure up to 8 BSSIDs per radio for complete network segmentation and security. No additional licensing fees required.
Professional Build Quality
Constructed with a UV-stabilized polycarbonate and aluminum alloy enclosure, the U7-Pro-XGS features a fanless design with a metal heatsink base for silent, reliable operation. The compact Ø215 x 32.5 mm form factor installs easily on ceilings or walls using the included lite mount. With an operating temperature range of -30°C to 40°C, it's suitable for diverse deployment scenarios.
Coverage and Connectivity
The U7-Pro-XGS delivers 160 m² (1,750 ft²) coverage area with internal antennas offering 6 dBi gain on 5 GHz and 6 GHz bands, and 4 dBi on 2.4 GHz. Maximum transmit power reaches 29 dBm on 5 GHz, 24 dBm on 6 GHz, and 23 dBm on 2.4 GHz, ensuring robust signal strength throughout large spaces.
Ideal Applications
-
Enterprise Offices: High-density workspaces with demanding bandwidth requirements
-
Education: Classrooms and lecture halls with multimedia streaming and device-per-student connectivity
-
Healthcare: Medical imaging transfers and reliable patient-facing systems
-
Hospitality: Hotels and convention centers requiring fast, reliable guest WiFi
-
Conference Centers: Auditoriums and meeting spaces with 500+ concurrent device support
What's in the Box
- U7-Pro-XGS Access Point
- Lite Mount (ceiling/wall installation)
- Installation Guide
Full Specifications
Overview
| Model |
U7-Pro-XGS |
| WiFi Standard |
WiFi 7 (802.11be) |
| Spatial Streams |
8 (2x2 + 4x4 + 2x2) |
| Dimensions |
Ø215 x 32.5 mm (Ø8.5 x 1.3") |
| Weight |
800 g |
| Coverage Area |
160 m² (1,750 ft²) |
| Max Client Count |
500+ |
| Mounting |
Ceiling, Wall (Lite Mount Included) |
Wireless Performance
| MIMO Configuration |
6 GHz: 2x2 (DL/UL MU-MIMO)
5 GHz: 4x4 (DL/UL MU-MIMO)
2.4 GHz: 2x2 (DL/UL MU-MIMO) |
| Max Data Rate |
6 GHz: 5.8 Gbps (BW320)
5 GHz: 8.6 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain |
6 GHz: 6 dBi
5 GHz: 6 dBi
2.4 GHz: 4 dBi |
| Max TX Power |
6 GHz: 24 dBm
5 GHz: 29 dBm
2.4 GHz: 23 dBm |
| Max BSSIDs |
8 per Radio |
| WiFi Standards |
802.11a/b/g/n/ac/ax/be |
Network Interface
| Uplink Port |
1x 10 GbE RJ45 (10/5/2.5/1 Gbps auto-negotiation) |
| Power Method |
PoE++ (802.3bt) |
| Max Power Consumption |
29W |
| Typical Power Draw |
~15W |
Advanced Features
| Spectral Scanning |
Dedicated scanning radio for real-time RF analysis |
| Zero-Wait DFS |
Instant DFS channel switching |
| Mesh Support |
Yes, wireless uplink capable |
| Fast Roaming |
802.11r supported |
| Band Steering |
Yes |
| Guest Network Isolation |
Yes |
| Quality of Service |
Advanced QoS settings |
| Management |
UniFi Network Controller |
Physical & Environmental
| Enclosure |
UV-stabilized polycarbonate and aluminum alloy |
| Cooling |
Fanless with metal heatsink base |
| Operating Temperature |
-30°C to 40°C |
| Operating Humidity |
5% to 95% non-condensing |
| Certifications |
FCC, CE, IC (US version supports 6 GHz operation in approved countries) |
Specifications are sourced from the manufacturer product page and may be updated.
