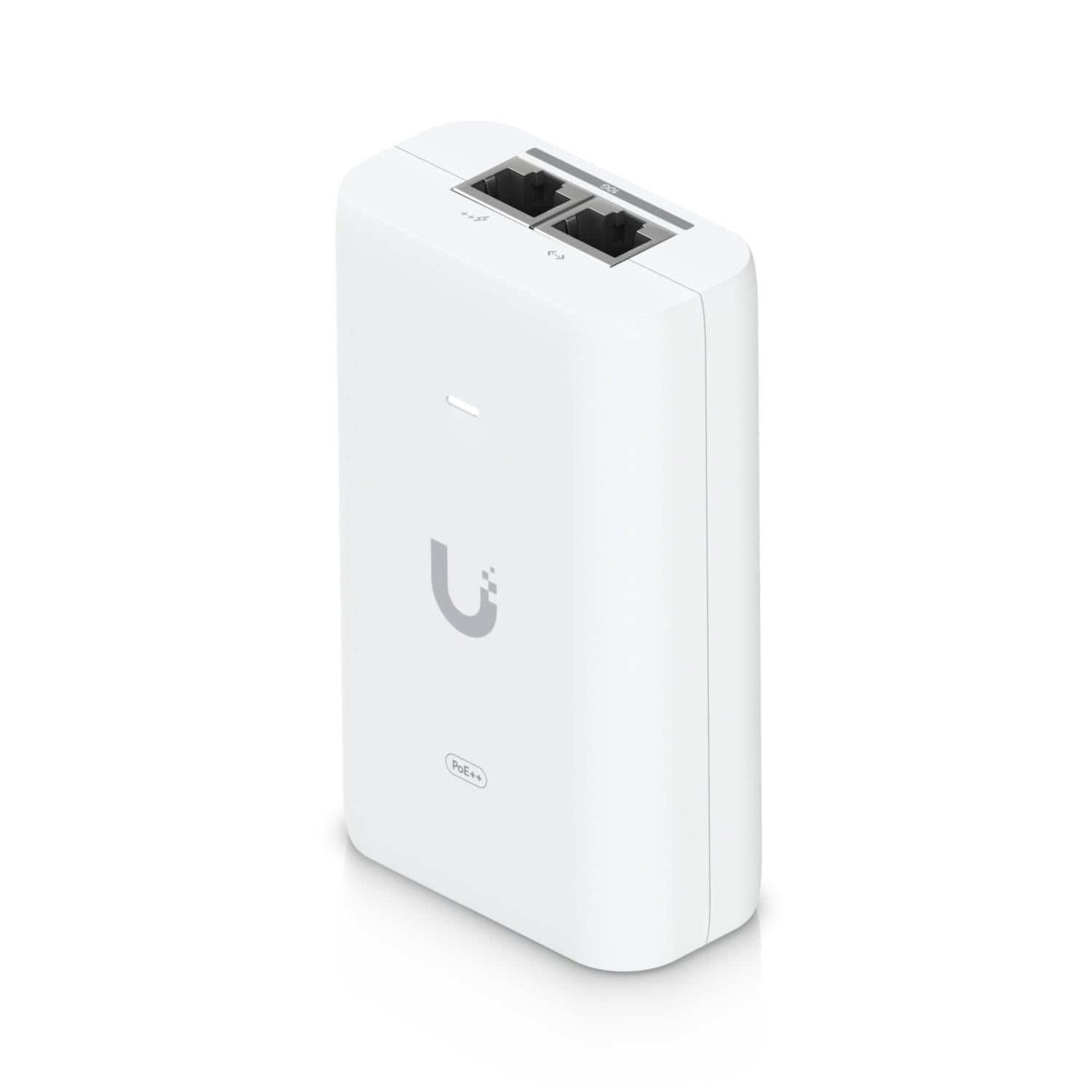

Ubiquiti UACC-PoE++-10G 10G PoE++ Injector 60W with Surge Protection
The Ubiquiti UACC-PoE++-10G is a high-performance 10 Gigabit PoE++ injector designed to power UniFi access points, IP cameras, and other network devices while delivering up to 60W of PoE++ power. This compact adapter reduces dependency on PoE switch power and provides a Multi-Gigabit LAN connection with fast 10G data transfer speeds. Perfect for extending your network infrastructure in offices, retail spaces, warehouses, and smart building deployments across Australia.
Key Features
-
60W PoE++ Output: Delivers up to 60W at 54V DC (1.12A) to power high-performance UniFi devices including the E7, E7-Campus, E7-Audience, U7-Pro-XGS, and U7-Pro-XG
-
10 Gigabit Ethernet Support: Provides Multi-Gigabit LAN connectivity for fast data transfer alongside power delivery
-
Comprehensive Surge Protection: Built-in surge, peak pulse, and overcurrent protection safeguards your valuable network equipment
-
High Efficiency: Greater than 88% energy efficiency reduces power consumption and heat generation
-
LED Status Indicator: Monitor injector operation at a glance with integrated LED status monitoring
-
Compact and Versatile: Small footprint (106 × 63 × 34 mm) makes it easy to deploy in tight spaces or alongside existing equipment
Professional Grade Power Delivery
This PoE++ injector uses 4-pair powering on pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) to deliver reliable power over Ethernet. The shielded RJ45 socket enhances signal integrity and reduces electromagnetic interference. With clamping protection at 11V for data and 60V for power, your network devices are protected from voltage spikes and surges. The adapter handles up to 1500A surge discharge (8/20 μs) on power lines and 36A peak pulse current (10/1000 μs) on data lines.
Universal AC Input and Reliable Performance
The UACC-PoE++-10G accepts a wide input voltage range of 100–240V AC at 50/60Hz, making it suitable for use anywhere in Australia and internationally. The adapter features excellent line regulation (≤2%) and load regulation (≤5%) with minimal output ripple (1% max). Operating at a 65 kHz switching frequency, the injector provides stable, clean power for demanding network applications.
Easy Installation and Monitoring
Installation is straightforward with included AC power cable with earth ground, one RJ45 data input port, and one PoE++ output port. The compact design and light weight (210 g) allow for flexible mounting options. The built-in LED indicator provides instant visual feedback on operational status, making troubleshooting quick and simple.
What's in the Box
- Ubiquiti UACC-PoE++-10G 10G PoE++ Adapter
- AC Power Cable
- Installation Guide
Full Specifications
Overview
| Dimensions |
106 × 63 × 34 mm (4.2 × 2.5 × 1.3") |
| Weight |
210 g (7.4 oz) |
| Power Cable |
Included |
Power
| Output Voltage |
54V DC at 1.12A |
| Rated Voltage |
100–240V AC at 50/60Hz |
| Input Current |
1.5A Max |
| Inrush Current |
<150A peak at 230V AC |
| Efficiency |
>88% |
| Switching Frequency |
65 kHz |
| Output Ripple |
1% Max |
| Line Regulation |
≤2% |
| Load Regulation |
≤5% Max |
| PoE++ Wattage per Port by PSE |
60W |
Interfaces
| Gigabit LAN Port |
Yes (10G capable) |
| 4-pair Powering |
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Data In / PoE Port |
RJ45 Shielded Socket |
Protection
| Clamping Protection |
11V Data, 60V Power |
| Surge Discharge |
1500A (8/20 μs) power |
| Peak Pulse Current |
36A (10/1000 μs) data |
| Response Time |
<1 ns |
| Shunt Capacitance |
<5 pF data |
Compatibility
| Compatible Devices |
UniFi E7, E7-Campus, E7-Audience, U7-Pro-XGS, U7-Pro-XG, and other PoE++ devices |
Specifications are sourced from the manufacturer product page and may be updated.
