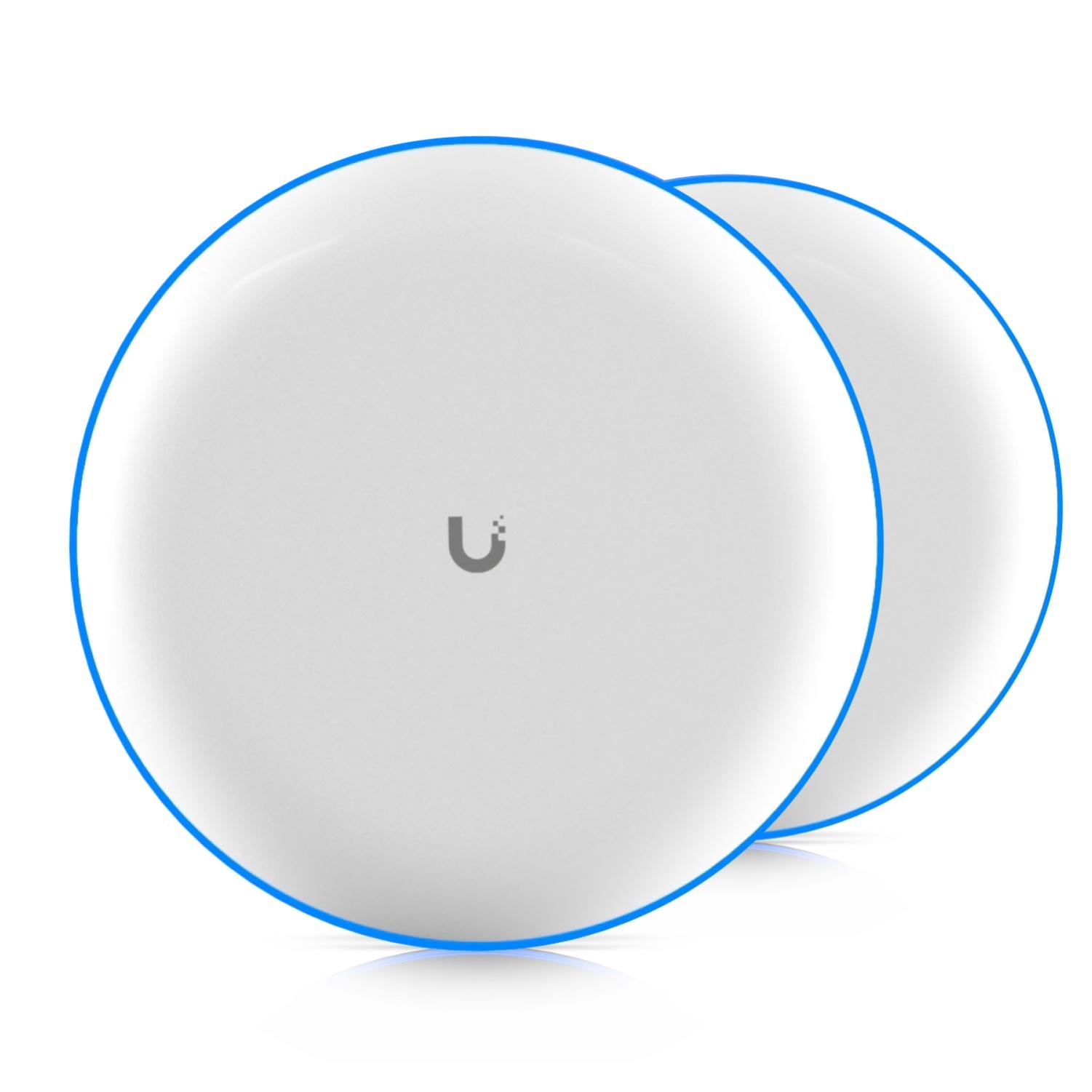

Ubiquiti UBB UniFi Building to Building Bridge with 5GHz Backup
The Ubiquiti UniFi Building-to-Building Bridge (UBB) is the ultimate solution for connecting two networks across separate buildings with 1.7+ Gbps bi-directional throughput. Using cutting-edge 60 GHz wireless technology and a reliable 5 GHz backup radio, this plug-and-play 2-pack kit delivers secure, high-speed connectivity up to 500 metres (1,640 feet) away. Perfect for businesses, campuses, and multi-building sites requiring seamless network extension without trenching cables.
Why Choose the Ubiquiti UBB?
-
Lightning-Fast 60 GHz Connection: Achieve up to 1.7 Gbps speeds using 802.11ad technology on the low-interference 60 GHz band
-
5 GHz Failover Protection: Automatic backup radio ensures connectivity even in adverse weather conditions
-
Quick Installation: Pre-paired radios with built-in LED alignment indicators for easy setup in minutes
-
UniFi Integration: Seamless management via UniFi Console, Official UniFi Hosting, or Self-Hosted Network Server
-
Weatherproof Design: IPX6-rated UV-resistant polycarbonate enclosure withstands harsh outdoor environments
-
Flexible Mounting: 3-axis ball joint mount for pole or wall installation with precise aiming adjustment
High-Speed 60 GHz Wireless Bridge Technology
The UBB utilises the 60 GHz frequency band to deliver gigabit+ wireless speeds with minimal interference. The 60 GHz band attenuates quickly due to atmospheric absorption, making it highly directional and ideal for secure point-to-point links. When paired with the 17.2 dBi antenna gain, the UBB creates a wireless wire effect, offering extremely high transmission capacity between buildings up to 500 metres apart.
Dual-Radio Redundancy for Reliable Connectivity
Because 60 GHz signals are line-of-sight dependent and can be affected by rain or obstacles, Ubiquiti engineered the UBB with dual-radio redundancy. If the 60 GHz link experiences degradation, the bridge automatically fails over to the 5 GHz radio (WiFi 5 / 802.11ac) with speeds up to 866.6 Mbps. This ensures your network stays connected even in challenging weather conditions.
Easy Installation with LED Alignment
The UBB features built-in LED alignment indicators that guide you to optimal positioning for the strongest signal. The innovative 3-axis ball joint mount allows for precise aiming and adjustment, while the tool-free pole mounting design speeds up installation. Each kit includes two PoE adapters (48V, 0.32A) and all necessary mounting hardware.
Professional Network Management
Manage your UBB bridge through the UniFi Network application for iOS, Android, or desktop. The platform provides advanced RF performance tools including spectral analysis, airtime fairness, band steering, and radio AI for optimal channel selection. The auto-optimise feature configures your bridge with best practice settings automatically.
Compact and Rugged Outdoor Design
Measuring just 140 × 140 × 90 mm and weighing only 376 grams, each UBB radio is compact yet incredibly robust. The IPX6 weatherproofing and UV-resistant polycarbonate enclosure ensure long-term reliability in outdoor installations. The unit is designed to survive wind speeds up to 200 km/h (125 mph) and includes ±24kV ESD/EMP protection.
What's in the Box
- UBB Radio (Qty. 2)
- Ball Joint Mount (Qty. 2)
- Lock Ring (Qty. 2)
- Metal Strap (Qty. 2)
- Gigabit PoE Adapter 48V, 0.32A with Power Cord (Qty. 2)
- Mounting Bracket (Qty. 2)
- Quick Start Guide
Full Specifications
Performance
| Max. Data Rate (60 GHz) |
1.7 Gbps |
| Max. Data Rate (5 GHz) |
866.6 Mbps (BW80) |
| Maximum Range |
500 m (1,640 ft) |
| WiFi Standard |
WiFi 5 (802.11ac) |
| MIMO |
5 GHz: 2 × 2 (DL MU-MIMO) |
| Spatial Streams |
2 |
Radio Specifications
| Operating Frequency |
60 GHz (57-67 GHz), 5 GHz (5725-5850 MHz), 2.4 GHz BLE (2400-2483.5 MHz) |
| Antenna Gain (60 GHz) |
17.2 dBi |
| Antenna Gain (5 GHz) |
10 dBi |
| Antenna Gain (2.4 GHz BLE) |
2 dBi |
| Max. TX Power (60 GHz) |
19 dBm |
| Max. TX Power (5 GHz) |
25 dBm |
| 60 GHz Elevation Beamwidth |
30° |
| 60 GHz Azimuthal Coverage |
±60° |
| GPS |
Yes |
Interfaces
| Networking |
(1) 10/100/1000 Gigabit Ethernet Port |
| Management |
Bluetooth |
Power
| Power Method |
802.3af Supported, Passive PoE (48V) |
| Power Supply |
48V, 0.32A Gigabit PoE Adapter (Included) |
| Max. Power Consumption |
11W |
Physical
| Dimensions |
140 × 140 × 90 mm (5.51 × 5.51 × 3.54 in.) |
| Weight |
376 g (13.3 oz) |
| Enclosure |
UV-Resistant Polycarbonate |
| Weatherproofing |
IPX6 |
| Mounting |
Pole-Mount (Kit Included), Wall-Mount (bracket not included) |
| Wind Loading |
56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Wind Survivability |
200 km/h (125 mph) |
| ESD/EMP Protection |
±24kV Contact/Air |
System Requirements
| Management |
UniFi Console, Official UniFi Hosting, or Self-Hosted UniFi Network Server (UniFi Cloud Key 1.0.5+ or UniFi Dream Machine 1.0.1+) |
Specifications are sourced from the manufacturer product page and may be updated.
