Ubiquiti UCG-Fiber Cloud Gateway Fiber
The Ubiquiti Cloud Gateway Fiber (UCG-Fiber) is a desktop 10G cloud gateway engineered for high-performance networking in small to mid-size business and home office environments. Featuring dual 10G WAN ports (one SFP+ fiber and one RJ45 Ethernet), an integrated 4-port 2.5 GbE switch with PoE+, and full UniFi application suite support, the UCG-Fiber delivers enterprise-grade security and connectivity at an accessible price point. With 5 Gbps IDS/IPS throughput, support for over 500 simultaneous users, and the ability to manage 50+ UniFi devices, this compact gateway is perfect for businesses upgrading to multi-gigabit internet or deploying fiber-optic networks.
Why You'll Love the UCG-Fiber
-
10G Fiber and Ethernet WAN Connectivity: Future-proof your network with one 10G SFP+ fiber port and one 10 GbE RJ45 port for flexible high-speed internet connections
-
Integrated 4-Port 2.5 GbE Switch with PoE+: Connect access points, cameras, and other devices directly; port 4 delivers up to 30W PoE+ power
-
5 Gbps IDS/IPS Security: Industry-leading intrusion prevention with over 55,000 threat signatures powered by CyberSecure
-
Full UniFi Suite Support: Run Network, Protect (NVR), Access, Talk, and Connect applications on a single device
-
Expandable NVR Storage: Optional M.2 NVMe SSD slot (tray sold separately) supports up to 2TB for UniFi Protect camera recordings
-
Advanced VPN & SD-WAN: License-free site-to-site VPN, WireGuard, OpenVPN, IPsec, and Teleport zero-config VPN support
Enterprise-Grade Security & Performance
Powered by a quad-core ARM Cortex-A73 processor at 2.2 GHz with 3 GB of system memory, the UCG-Fiber handles complex routing, VPN connections, and deep packet inspection (DPI) with ease. The stateful firewall and application-aware Layer 7 firewall provide granular control over network traffic, while zone-based filtering allows you to block by region, domain, or application. Advanced features include multi-WAN load balancing, content filtering, ad blocking, and dynamic routing protocols for optimized performance and redundancy.
Flexible Connectivity for Modern Networks
The UCG-Fiber is designed for versatility and scalability:
-
WAN Ports: 1 × 10G SFP+ fiber port (can be used for WAN or LAN), 1 × 10 GbE RJ45 port (10G/2.5G/1G)
-
LAN Ports: 1 × 10G SFP+ port, 4 × 2.5 GbE RJ45 ports (2.5G/1G/100M/10M), with port 4 supporting PoE+ (30W budget)
-
Management: Ethernet and Bluetooth for flexible configuration and monitoring via UniFi OS
-
Display: 0.96-inch LCM status display shows real-time throughput, connected devices, and system information
UniFi Ecosystem Integration
The UCG-Fiber supports the complete UniFi application suite, making it a central hub for your network infrastructure. Manage up to 15 HD cameras, 8 2K cameras, or 5 4K cameras with optional NVMe storage for UniFi Protect. Control 50 access hubs with UniFi Access, deploy VoIP systems with UniFi Talk, and monitor ISP performance with UniFi Connect. The intuitive UniFi Network dashboard provides real-time visibility into network activity, device health, and security threats across all your UniFi devices.
Compact, Desktop-Friendly Design

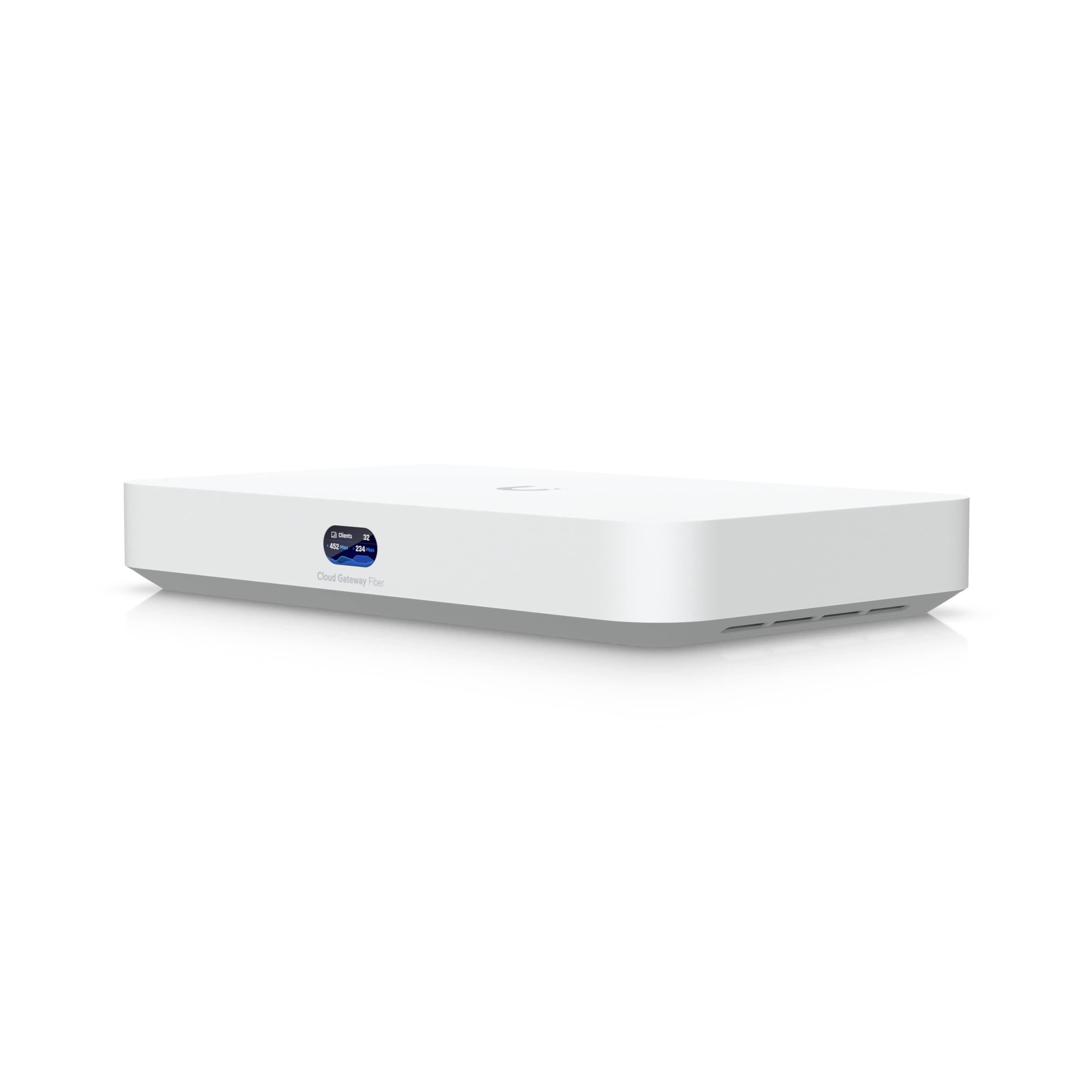

Measuring just 212.8 × 127.6 × 30 mm and weighing 675 g (without SSD), the UCG-Fiber's compact polycarbonate housing fits seamlessly on any desk or shelf. The white finish matches the aesthetic of other UniFi devices, and the fanless design ensures silent operation. Optional mounting accessories include a universal table stand and floating mount (sold separately).
What's in the Box
- Ubiquiti Cloud Gateway Fiber (UCG-Fiber)
- 54V DC/1.1A power adapter
- Quick Start Guide
Note: M.2 SSD tray and storage sold separately. Storage versions (1TB/2TB) include tray, SSD, and installation tool.
Full Specifications
Hardware
| Processor |
Quad-core ARM Cortex-A73 @ 2.2 GHz |
| System Memory |
3 GB |
| On-board Storage |
8 GB eMMC |
| Optional Storage |
M.2 NVMe SSD slot (up to 2 TB, tray required) |
| Enclosure Material |
Polycarbonate |
| Dimensions |
212.8 × 127.6 × 30 mm (8.4 × 5 × 1.2") |
| Weight |
675 g (1.5 lb) without SSD; 734 g (1.6 lb) with SSD |
| Display |
0.96" LCM status display |
Networking
| Default WAN Ports |
1 × 10G SFP+ (10G/1G)
1 × 10 GbE RJ45 (10G/2.5G/1G) |
| LAN Ports |
1 × 10G SFP+ (10G/1G)
4 × 2.5 GbE RJ45 (2.5G/1G/100M/10M) |
| PoE Support |
Port 4: PoE+ (30W budget, 54V DC) |
| Maximum WAN Ports |
6 (configurable) |
| IDS/IPS Throughput |
5 Gbps |
| Managed UniFi Devices |
50+ |
| Simultaneous Users |
500+ |
| Managed Cameras |
15 HD / 8 2K / 5 4K |
| Managed Access Hubs |
50 |
Security
| Stateful Firewall |
Yes |
| Application-Aware Layer 7 Firewall |
Yes |
| DPI & Traffic Identification |
Yes |
| Zone-Based Firewall |
Yes (Regions, Domains, Apps) |
| Content Filtering |
Yes |
| Ad Blocking |
Yes |
| Intrusion Prevention (IPS/IDS) |
Yes (55,000+ signatures with CyberSecure) |
| ESD/EMP Protection |
Air: ±8kV, Contact: ±4kV |
VPN & Routing
| VPN Protocols |
IPsec, OpenVPN, WireGuard, L2TP |
| Teleport VPN |
Yes (zero-configuration) |
| SD-WAN |
License-free, site-to-site VPN |
| Multi-WAN Load Balancing |
Yes |
| Dynamic Routing |
Yes |
UniFi Application Support
| Network |
Yes |
| Protect (NVR) |
Yes (requires optional SSD) |
| Access |
Yes |
| Talk |
Yes |
| Connect |
Yes |
Management
| Management Interface |
Ethernet, Bluetooth |
| Button |
Factory reset |
| Certifications |
CE, FCC, IC |
Power & Environment
| Power Supply |
54V DC/1.1A (included) |
| Max. Power Consumption |
29.4W (excluding PoE output) |
| Operating Temperature |
0 to 40°C (32 to 104°F) |
| Operating Humidity |
5% to 95% non-condensing |
Warranty
| Standard Warranty |
1 year limited |
| UI Care (Optional) |
5 years extended coverage with priority support |
Specifications are sourced from the official manufacturer product page and may be updated.
