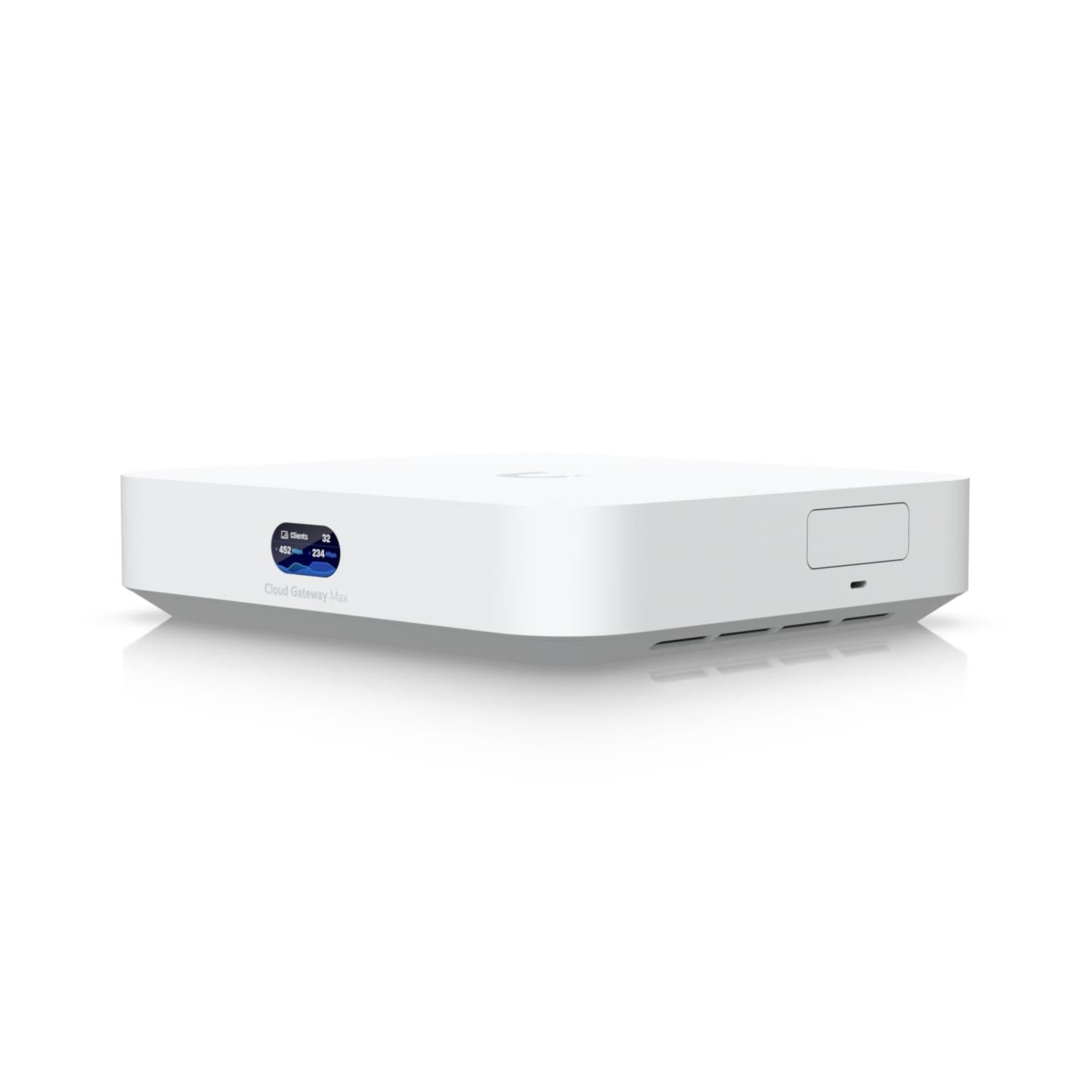

Ubiquiti UCG-Max UniFi Cloud Gateway with 2.5GbE Ports & NVR Storage
The Ubiquiti UCG-Max UniFi Cloud Gateway is a compact, fanless network gateway designed for small to medium-sized businesses and home offices. Featuring five 2.5GbE RJ45 ports, 2.3 Gbps IDS/IPS routing throughput, and a built-in 512GB NVMe SSD for UniFi Protect NVR storage, it consolidates routing, security, multi-WAN load balancing, and camera management into a single, silent device. The UCG-Max supports 30+ UniFi devices and 300+ simultaneous clients, making it ideal for offices with high-speed internet, VPN needs, and integrated video surveillance.
Key Features
-
Multi-Gigabit Networking: Five 2.5 Gigabit Ethernet ports (1 WAN, 4 LAN) for fast, future-ready connectivity
-
Advanced Security: 2.3 Gbps IDS/IPS routing with signature-based threat detection, content filtering, and stateful firewall
-
Built-in NVR Storage: 512GB NVMe SSD for UniFi Protect camera recording (supports 15 HD, 8 2K, or 5 4K cameras)
-
Complete UniFi Application Suite: Manage Network, Protect, Access, Talk, and Connect from a single interface
-
Fanless Design: Completely silent operation with passive cooling, ideal for desktop or closet deployment
-
Multi-WAN Failover & Load Balancing: Redundant WAN with automatic failover and LTE backup support
High-Performance Routing & Security
Powered by a quad-core ARM Cortex-A53 processor at 1.5 GHz and 3GB DDR4 memory, the UCG-Max delivers 2.3 Gbps of IDS/IPS throughput on UniFi OS 4.1 or newer. Advanced security features include application-aware firewall rules, country and domain filtering, signature-based intrusion prevention, and VLAN/subnet-based traffic segmentation. VPN support includes WireGuard, OpenVPN, L2TP, and IPsec for secure site-to-site and remote access connectivity.
Integrated UniFi Protect NVR
The UCG-Max includes a 512GB NVMe SSD dedicated to UniFi Protect, allowing you to record and manage up to 15 HD, 8 2K, or 5 4K cameras directly on the gateway. Models with 1TB and 2TB storage are also available for larger deployments. The device supports the full UniFi application suite, including Network, Protect, Access, Talk, and Connect, providing unified management for your entire UniFi ecosystem.
Compact, Silent, & Desk-Friendly
At just 141.8 × 127.6 × 30 mm and 519 grams, the UCG-Max features a compact desktop form factor with a sleek polycarbonate enclosure. The fanless, passively cooled design ensures completely silent operation, making it suitable for offices, retail environments, and home deployments. A 0.96-inch LCM status display provides at-a-glance system information, and USB-C power (5V DC/5A, adapter included) allows flexible placement.
Multi-WAN & Advanced Networking
The UCG-Max supports multi-WAN load balancing with failover and backup internet connectivity via LTE. QoS features include WiFi optimization with UniFi APs, application-based prioritization, and domain and country-based traffic shaping. Additional features include DHCP relay, customizable DHCP server, IGMP proxy, IPv6 ISP support, and policy-based WAN and VPN routing.
What's in the Box
- Ubiquiti UCG-Max Cloud Gateway
- USB-C power adapter (5V DC/5A)
- Quick start guide
Full Specifications
Hardware
| Processor |
Quad-core ARM Cortex-A53 at 1.5 GHz |
| System Memory |
3 GB DDR4 |
| On-board Storage |
512 GB NVMe SSD |
| Management Interface |
Ethernet, Bluetooth |
| Display |
0.96" LCM status display |
Networking
| LAN Ports |
(4) 2.5GbE RJ45 ports (1 remappable to WAN) |
| WAN Ports |
(1) 2.5GbE RJ45 port |
| IDS/IPS Throughput |
2.3 Gbps |
| VPN Support |
WireGuard, OpenVPN, L2TP, IPsec, Teleport |
| Managed UniFi Devices |
30+ |
| Simultaneous Clients |
300+ max |
UniFi Protect Camera Capacity
| HD Cameras |
15 |
| 2K Cameras |
8 |
| 4K Cameras |
5 |
Power & Environment
| Power Method |
USB Type-C (5V DC/5A, adapter included) |
| Supported Voltage Range |
100–240V AC |
| Max. Power Consumption |
16.1W |
| Operating Temperature |
-10 to 40°C (14 to 104°F) |
| Operating Humidity |
5 to 95% noncondensing |
| Cooling |
Fanless, passive |
Physical
| Dimensions |
141.8 × 127.6 × 30 mm (5.6 × 5 × 1.2") |
| Weight |
519 g (1.1 lb) |
| Enclosure Material |
Polycarbonate |
| Form Factor |
Compact desktop |
Certifications
| Certifications |
CE, FCC, IC |
Specifications are sourced from the manufacturer product page and may be updated.
