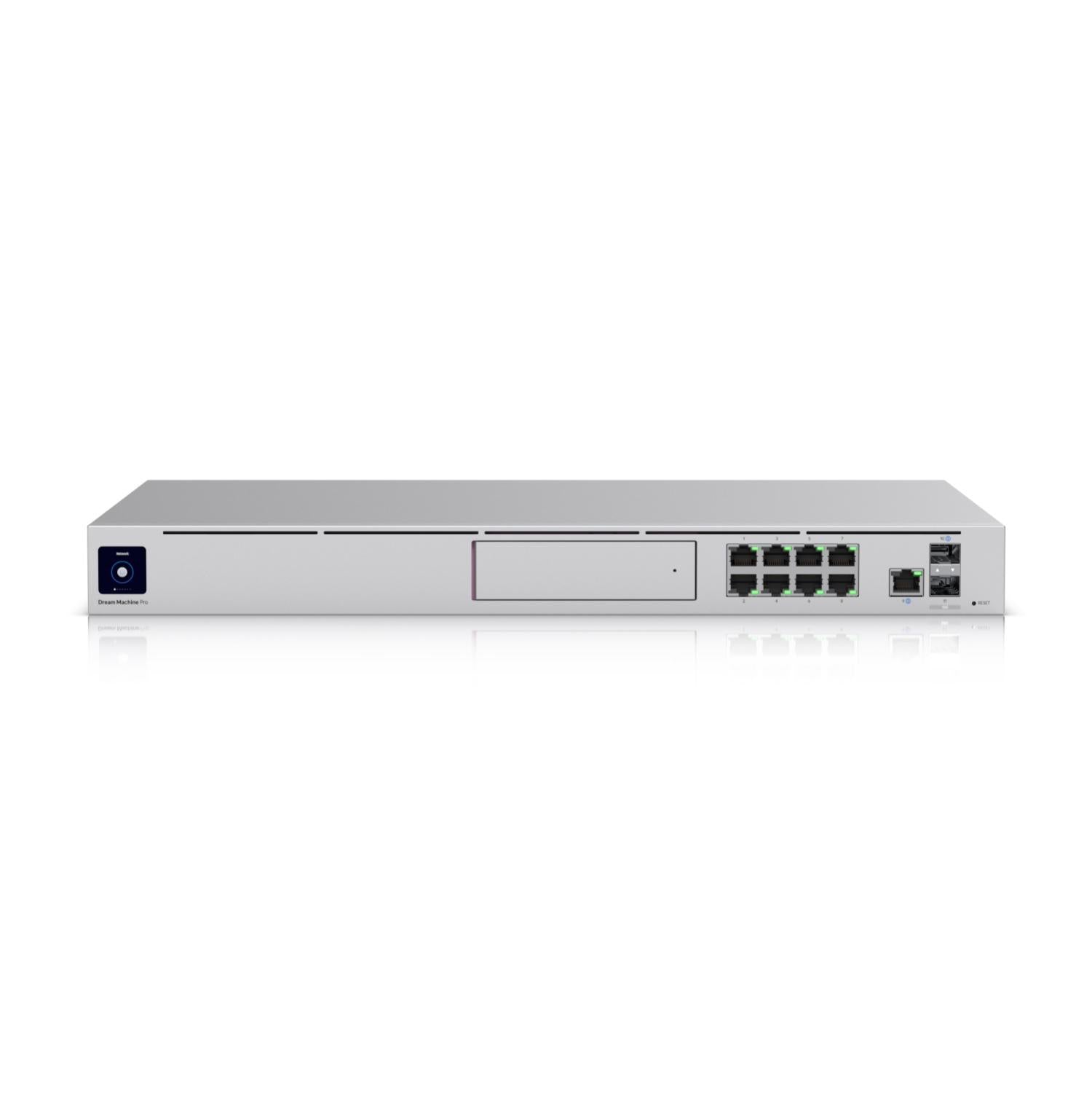

Ubiquiti UDM-Pro UniFi Dream Machine Pro Network Security Gateway
The Ubiquiti UniFi Dream Machine Pro (UDM-Pro) is an enterprise-grade, all-in-one network appliance designed for small to medium-sized businesses. Powered by a 1.7 GHz quad-core ARM Cortex-A57 processor with 4GB DDR4 memory, this professional-grade security gateway combines advanced routing, a built-in 8-port Gigabit switch, 10G SFP+ connectivity, and comprehensive network management into a single 1U rack-mountable device. Perfect for businesses seeking scalable, secure networking with 3.5 Gbps IDS/IPS throughput and integrated UniFi Protect NVR capabilities.
Key Features
-
All-in-One Network Solution: Combines security gateway, managed switch, UniFi Network controller, and UniFi Protect NVR in a single device
-
High-Performance Processing: Quad-core 1.7 GHz ARM Cortex-A57 processor with 4GB DDR4 memory for reliable multi-application performance
-
10G SFP+ Connectivity: Dual 10G SFP+ ports (1 WAN, 1 LAN) plus 1 GbE RJ45 WAN and 8 GbE RJ45 LAN ports for flexible network design
-
Enterprise Security: Advanced IDS/IPS with 3.5 Gbps throughput, DPI, threat management, and GeoIP filtering
-
Integrated NVR Storage: 3.5-inch HDD bay supports UniFi Protect video surveillance with up to 100+ managed cameras
-
1.3-inch Touchscreen: Front-panel LCD for quick status monitoring and device management
-
Redundancy Options: Dual WAN failover, LTE failover support, and USP-RPS power backup capability
-
UniFi OS Ecosystem: Runs full UniFi application suite including Network, Protect, Access, Talk, and Connect
Advanced Security & Network Management
The UDM-Pro delivers enterprise-class security features including intrusion prevention system (IPS), intrusion detection system (IDS), and deep packet inspection (DPI). Advanced threat management protects against viruses, malware, and network attacks with customizable security levels. Built-in DNS content filtering, endpoint scanning, and honeypot functionality detect and block malicious traffic automatically. Configure site-to-site VPN and WireGuard VPN for secure remote access, while automatic QoS prioritizes voice and video traffic for optimal performance.
Unified Management with UniFi OS
Powered by UniFi OS, the Dream Machine Pro provides streamlined access to all UniFi applications from a single interface. Manage over 100 UniFi devices and 1,000+ simultaneous users effortlessly. The integrated UniFi Network Controller manages switches, access points, and network policies, while UniFi Protect handles video surveillance with support for HD, 2K, and 4K cameras. Bluetooth and Ethernet management interfaces ensure easy setup via the UniFi mobile app. Single Sign-On (SSO) authentication and centralized user management simplify administration across your entire network.
Scalability & Expansion
Built for growth, the UDM-Pro features a fully managed 8-port Gigabit switch with advanced Layer 2 capabilities and a 10G SFP+ LAN port for high-speed uplink to additional switches. The dual WAN configuration supports automatic failover between internet connections, with optional LTE backup via UniFi LTE devices. The internal 3.5-inch (or 2.5-inch) HDD bay provides expandable storage for UniFi Protect video recordings, accessible remotely via the UniFi Protect mobile app.
Connectivity & Interfaces
-
WAN Ports: (1) 10G SFP+, (1) GbE RJ45
-
LAN Ports: (1) 10G SFP+, (8) GbE RJ45
-
Storage: (1) 3.5-inch or 2.5-inch HDD bay (hard drive not included)
-
Management: Ethernet, Bluetooth, 1.3-inch touchscreen
-
Power: Universal AC input 100-240V AC, 50/60 Hz, 33W typical consumption
Professional 1U Rack-Mount Design
The UDM-Pro features a durable aluminium CNC and SGCC steel enclosure designed for standard 19-inch racks. The compact 1U form factor (442.4 × 43.7 × 285.6 mm) fits seamlessly into server rooms, data centers, or network closets. Front-panel LED indicators show status for Ethernet ports, SFP+, power, HDD, and RPS connections. Ambient operating temperature range of -10°C to 40°C (14°F to 104°F) ensures reliable performance in varied environments.
What's in the Box
- Ubiquiti UniFi Dream Machine Pro (UDM-Pro)
- Rack-mount brackets (Qty. 2)
- Bracket screws (Qty. 8)
- Mounting screws (Qty. 4)
- Cage nuts (Qty. 4)
- Power cord
- Quick start guide
Full Specifications
Hardware
| Processor |
Quad-core ARM Cortex-A57 at 1.7 GHz |
| System Memory |
4 GB DDR4 |
| On-board Storage |
16 GB eMMC |
| HDD Bay |
1 × 3.5-inch or 2.5-inch (hard drive not included) |
| IDS/IPS Throughput |
3.5 Gbps |
Networking Interfaces
| LAN Ports |
(8) GbE RJ45 10/100/1000 Mbps
(1) 10G SFP+ 1G/10G |
| WAN Ports |
(1) GbE RJ45 10/100/1000 Mbps
(1) 10G SFP+ 1G/10G |
| Max. WAN Port Count |
8 (configurable) |
| Management Interface |
Ethernet, Bluetooth |
UniFi Application Suite
| Network |
Included (pre-installed) |
| Protect |
Included |
| Access |
Included |
| Talk |
Included |
| Connect |
Included |
| Managed UniFi Devices |
100+ |
| Simultaneous Users |
1,000+ |
| Managed Cameras |
(24) HD, (14) 2K, (8) 4K |
| Managed Access Hubs |
150 |
Physical Specifications
| Dimensions |
442.4 × 43.7 × 285.6 mm (17.4 × 1.7 × 11.2 inches) |
| Weight |
3.9 kg (8.6 lb) |
| Form Factor |
1U rack-mount |
| Enclosure Material |
Aluminium CNC, SGCC steel |
| Mount Material |
SGCC steel |
| LCM Display |
1.3-inch touchscreen |
Power & Environment
| Power Method |
(1) Universal AC input, 100-240V AC, 50/60 Hz
(1) USP-RPS DC input (sold separately) |
| Max. Power Consumption |
33W (typical) |
| Power Supply |
AC/DC, internal |
| Ambient Operating Temperature |
-10 to 40°C (14 to 104°F) |
| Ambient Operating Humidity |
5 to 95% non-condensing |
| ESD/EMP Protection |
Air: ±15kV, contact: ±8kV |
Certifications & Compliance
| NDAA Compliant |
Yes |
| Certifications |
FCC, IC, CE |
Specifications are sourced from the manufacturer product page and may be updated.
