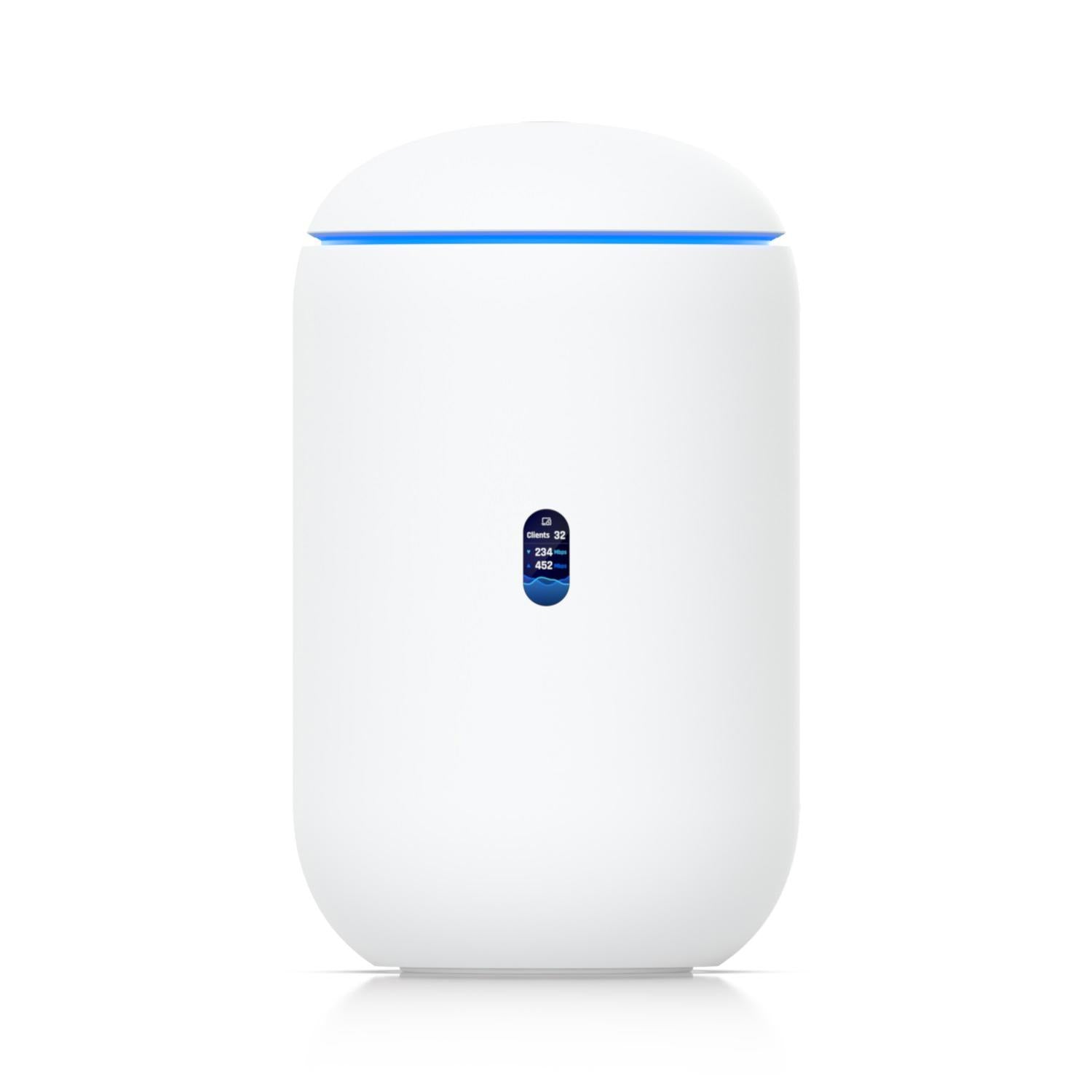

Ubiquiti UDR7 Dream Router 7 - WiFi 7 Cloud Gateway with Integrated PoE Switch
The Ubiquiti UDR7 Dream Router 7 is a powerful all-in-one networking solution that combines a 10G cloud gateway, WiFi 7 (802.11be) tri-band router, and PoE switch in a compact desktop form factor. Designed for modern homes and small businesses, the UDR7 delivers exceptional wireless speeds up to 10.7 Gbps across 2.4 GHz, 5 GHz, and 6 GHz bands, supports 300+ simultaneous users, and manages 30+ UniFi devices. With 2.3 Gbps IDS/IPS throughput, multi-gigabit connectivity, and full UniFi Application Suite integration, this router is perfect for demanding network environments requiring advanced security, scalability, and seamless device management.
Key Features
-
WiFi 7 Tri-Band Performance: Blazing speeds up to 5.7 Gbps on 6 GHz, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz with 2×2 MIMO on all bands
-
10G SFP+ Connectivity: One 10G SFP+ WAN port and one 2.5 GbE RJ45 WAN port for flexible high-speed internet connections
-
Multi-Gig LAN Ports: Three 2.5 GbE RJ45 LAN ports including one PoE port (15.4W budget) for powering access points or IP cameras
-
Advanced Security: Stateful firewall, application-aware Layer 7 firewall, DPI, and IPS/IDS with 20,000+ signatures powered by CyberSecure
-
UniFi Protect Support: Pre-installed 64GB microSD card for NVR storage, manages up to 5 HD, 2 2K, or 1 4K camera
-
Compact Design: Desktop form factor with 0.96" status display, covering up to 160 m² (1,750 ft²)
Unmatched WiFi 7 Performance for Modern Networks
The UDR7 leverages the latest WiFi 7 (802.11be) technology to deliver exceptional wireless performance across three frequency bands. With tri-band support, the router minimises interference and maximises network capacity, ensuring stable, high-speed connections for streaming, gaming, video conferencing, and IoT devices. The 2×2 MIMO configuration on each band ensures efficient data transmission, while Multi-Link Operation (MLO) enhances overall wireless performance for compatible devices.
Multi-Gigabit Wired Connectivity
The UDR7 is equipped with versatile ports to handle diverse networking needs. It features one 10G SFP+ port and one 2.5 GbE RJ45 port for WAN connections, providing flexible options for ultra-fast internet connectivity. For LAN, there are three 2.5 GbE RJ45 ports, including one PoE port with a 15.4W budget, perfect for powering compatible devices such as UniFi access points, IP cameras, or VoIP phones. All ports are fully configurable, allowing you to switch WAN/LAN roles as needed.
Comprehensive Security & Network Management
The UDR7 offers enterprise-grade security and management features. It includes a stateful firewall, application-aware Layer 7 firewall, deep packet inspection (DPI), and intrusion prevention systems (IPS/IDS) with over 20,000 signatures powered by CyberSecure. The router supports VLAN and subnet-based traffic segmentation, advanced QoS, dynamic routing with OSPF, and an integrated RADIUS server for granular network control. With 2.3 Gbps IDS/IPS throughput, the UDR7 provides robust protection without compromising performance.
Full UniFi Application Suite Integration
The UDR7 is fully integrated with the UniFi Application Suite, supporting Network, Protect, Access, Talk, and Connect applications. This integration allows for centralised management of networking, security, and communication devices through a single intuitive interface. Manage your network via the UniFi Network mobile app or web interface, configure SSIDs and security protocols (WPA3 recommended), set up VLANs, establish guest networks with captive portals, and monitor real-time performance. The router can manage over 30 UniFi devices and supports more than 300 simultaneous users, making it a scalable solution for growing networks.
Integrated Video Surveillance
The UDR7 includes UniFi Protect for video surveillance management, utilising a pre-installed 64GB microSD card for NVR storage. It can manage up to 5 HD cameras, 2 2K cameras, or 1 4K camera, providing a complete security solution. An expansion slot is available for additional storage needs, ensuring you never run out of recording capacity.
Compact & Elegant Design
The UDR7 features a compact desktop form factor with an eye-catching cylindrical design measuring ø110 × 184.1 mm (ø4.3 × 7.3"). It includes a 0.96" status display for quick system information and supports management via Ethernet and Bluetooth. With an internal 50W AC/DC power supply and maximum power consumption of 26W (excluding PoE output), the UDR7 is both powerful and energy-efficient. Its sleek minimalist design fits seamlessly into any home or office environment.
Ideal for Home & Small Business Networks
Whether you're setting up a home network with multi-gigabit internet, deploying a small business network with advanced security, or building a UniFi ecosystem with access points and cameras, the UDR7 is the perfect entry-level multi-gigabit WiFi 7 solution. Its ability to efficiently handle 2.5 Gbps broadband and operate as a standalone unit or primary host for a robust WiFi system makes it an incredibly versatile choice for demanding network environments.
What's in the Box
- Ubiquiti UDR7 Dream Router 7
- Power cable (2-prong)
- Pre-installed 64GB microSD card
- Installation guide
Full Specifications
Wireless
| WiFi Standard |
WiFi 7 (802.11be), WiFi 6E (802.11ax), WiFi 6 (802.11ax), WiFi 5 (802.11ac), WiFi 4 (802.11n), 802.11a/b/g |
| Radio Configuration |
Tri-band 2×2 MIMO (2.4 GHz, 5 GHz, 6 GHz) |
| Maximum Throughput |
6 GHz: 5.7 Gbps
5 GHz: 4.3 Gbps
2.4 GHz: 688 Mbps
Total: 10.7 Gbps aggregated |
| Coverage Area |
160 m² (1,750 ft²) |
Hardware
| Processor |
Quad-core ARM Cortex-A53 at 1.5 GHz |
| Memory |
3GB RAM |
| Storage |
Pre-installed 64GB microSD for NVR (expandable) |
| Antennas |
Internal fixed antennas |
| Display |
0.96" status LCM display |
Network Interfaces
| WAN Ports |
(1) 10G SFP+ (10G/1G)
(1) 2.5 GbE RJ45 |
| LAN Ports |
(3) 2.5 GbE RJ45 (2.5G/1G/100M/10M)
Including (1) PoE port (802.3af, 15.4W budget) |
| Management |
Ethernet, Bluetooth |
Performance & Capacity
| IDS/IPS Throughput |
2.3 Gbps |
| Simultaneous Users |
300+ |
| Managed UniFi Devices |
30+ |
| Managed Cameras |
(5) HD, (2) 2K, or (1) 4K |
Security Features
| Firewall |
Stateful firewall
Application-aware Layer 7 firewall
Zone-based firewall with advanced filtering |
| IPS/IDS |
20,000+ signatures powered by CyberSecure |
| DPI |
Deep packet inspection & traffic identification |
| Additional |
VLAN & subnet-based traffic segmentation
Advanced QoS
Dynamic routing with OSPF
Integrated RADIUS server |
UniFi Applications
| Supported Applications |
UniFi Network
UniFi Protect
UniFi Access
UniFi Talk
UniFi Connect |
Power
| Power Supply |
Internal 50W AC/DC |
| Max Power Consumption |
26W (excluding PoE output) |
| PoE Output |
15.4W (802.3af) on one port |
Physical
| Dimensions |
ø110 × 184.1 mm (ø4.3 × 7.3") |
| Form Factor |
Compact desktop |
| Colour |
White |
What's in the Box
| Included Items |
UDR7 Dream Router 7
Power cable
Pre-installed 64GB microSD card
Installation guide |
Specifications are sourced from the manufacturer product page and may be updated.
