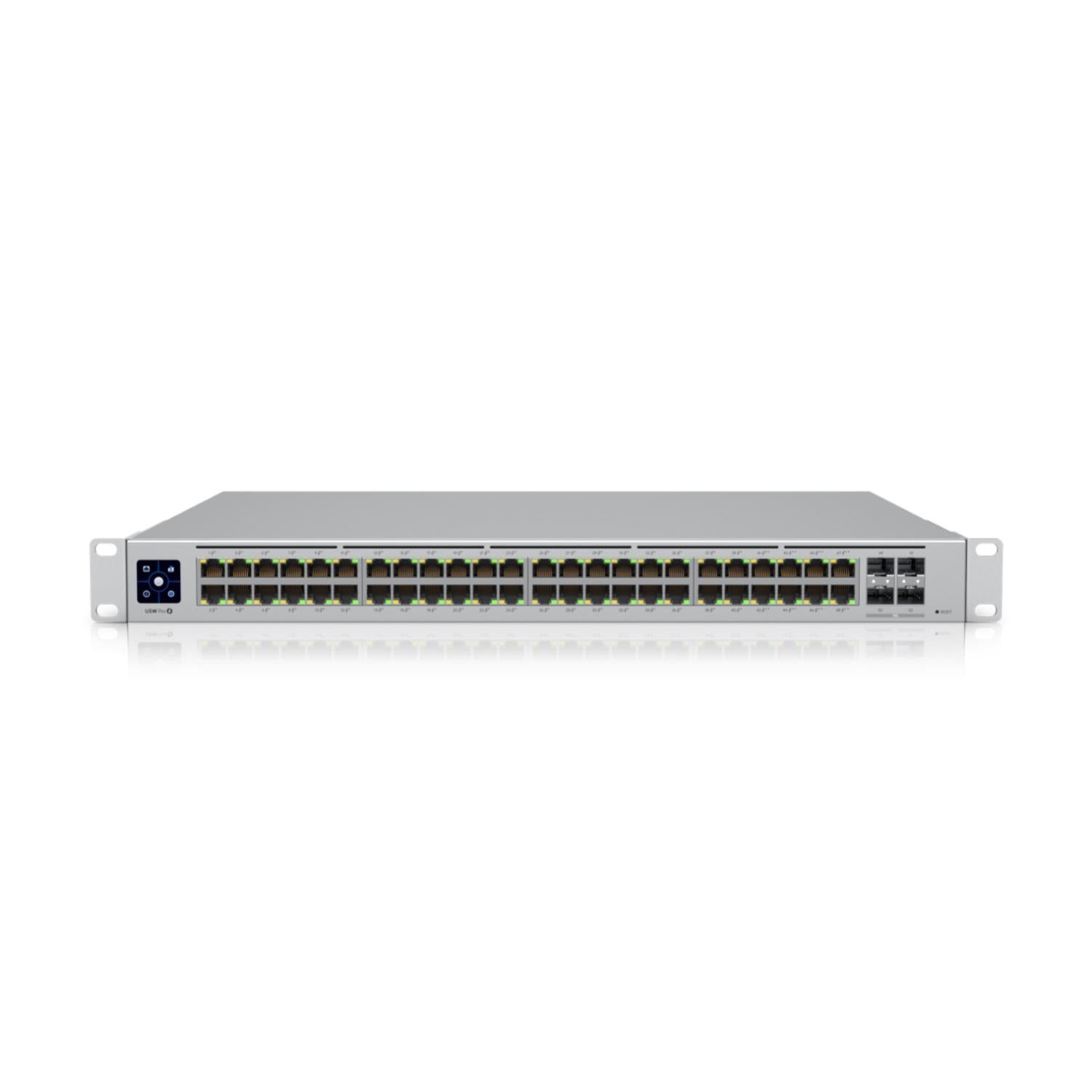

Ubiquiti US-48 UniFi 48-Port Managed Gigabit Switch with SFP/SFP+
The Ubiquiti UniFi US-48 is a fully managed Layer 2 Gigabit switch designed to expand and optimize your network infrastructure. With 48 Gigabit Ethernet ports, 2 x 1G SFP ports, and 2 x 10G SFP+ ports, this rack-mountable switch delivers enterprise-grade performance with 52 Gbps non-blocking throughput and a 77 Mpps forwarding rate. Ideal for businesses, offices, schools, and AV installations requiring reliable, high-speed connectivity and centralized management through the UniFi Network Controller.
Key Features
-
48 Gigabit Ethernet Ports: Connect multiple devices including computers, printers, projectors, AV equipment, and network storage with blazing-fast Gigabit speeds
-
10G SFP+ Uplinks: Two 10 Gigabit SFP+ ports provide ultra-fast fiber uplinks to other switches or network backbone
-
Fanless Silent Operation: Passively cooled design ensures whisper-quiet performance, perfect for offices, classrooms, and boardrooms
-
UniFi Controller Management: Intuitive cloud-based or local management with advanced Layer 2 switching features, VLANs, QoS, port mirroring, and traffic monitoring
-
Rack-Mountable Design: Professional 1U form factor fits standard server racks and cabinets (19-inch rackmount)
-
Energy Efficient: Only 40W maximum power consumption, reducing operating costs and heat output
Enterprise-Grade Performance
The US-48 delivers 104 Gbps switching capacity and 52 Gbps total non-blocking throughput, ensuring all 48 ports can operate simultaneously at full Gigabit line rate without packet loss. The 77.376 Mpps forwarding rate handles heavy network traffic with ease, making it ideal for demanding applications like IP surveillance systems, digital signage networks, AV over IP installations, and multi-device office environments.
UniFi Ecosystem Integration
Seamlessly integrate the US-48 into your UniFi network ecosystem alongside UniFi access points, routers, security cameras, and VoIP phones. The UniFi Network Controller provides a single pane of glass to monitor and configure your entire network, with real-time statistics, topology mapping, and Deep Packet Inspection (DPI) for application-aware traffic analysis.
Advanced Layer 2 Switching Features
- VLAN support (up to 1,000 VLANs) for network segmentation
- Link Aggregation (LACP) for increased bandwidth and redundancy
- Spanning Tree Protocol (STP/RSTP) for loop prevention
- IGMP snooping for optimized multicast traffic (ideal for video streaming and IPTV)
- 802.1X authentication for secure network access control
- Port mirroring for network monitoring and troubleshooting
- QoS (Quality of Service) for traffic prioritization
- DHCP snooping and MAC address filtering for enhanced security
Flexible Connectivity Options
The US-48 offers versatile connectivity with 48 auto-sensing RJ45 Gigabit ports (10/100/1000 Mbps), 2 x 1G SFP fiber ports for medium-distance uplinks, and 2 x 10G SFP+ ports for high-speed fiber backbone connections to your core network or NAS devices. The included 1.3-inch touchscreen LCD provides at-a-glance status information and quick diagnostics without requiring computer access.
Ideal Applications
- Corporate office networks and small business infrastructure
- Education campuses and classroom technology installations
- AV over IP deployments for video distribution
- IP surveillance systems with multiple network cameras
- Digital signage networks across retail or hospitality environments
- Hotel guest and management network infrastructure
- Conference and event facilities with high device density
What's in the Box
- Ubiquiti UniFi US-48 48-Port Managed Gigabit Switch
- Rack mount brackets
- Power cord
- Quick start guide
Full Specifications
Hardware
| Model |
US-48 |
| Dimensions |
443 x 286 x 43 mm (17.44 x 11.26 x 1.69 inches) |
| Weight (without mounting brackets) |
3.9 kg (8.6 lb) |
| Weight (with mounting brackets) |
4 kg (8.8 lb) |
| Enclosure Material |
SGCC steel |
| Form Factor |
Rack mount (1U) |
| Supported Rack Depth |
400-1200 mm (15.7-47.2 inches) |
| LCM Display |
1.3-inch touchscreen |
Port Layout
| Gigabit Ethernet RJ45 Ports |
48 (10/100/1000 Mbps, auto-sensing) |
| 1G SFP Ports |
2 (1 Gbps fiber) |
| 10G SFP+ Ports |
2 (10 Gbps/1 Gbps fiber) |
| Management Port |
1 x GbE RJ45 |
Performance
| Switching Capacity |
104 Gbps |
| Total Non-Blocking Throughput |
52 Gbps |
| Forwarding Rate |
77 Mpps (million packets per second) |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
16,000 |
| Packet Buffer Size |
1.5 MB |
| Access Lists (IPv4) |
128 |
| Access Lists (MAC) |
128 |
Layer 2 Features
| LACP Port Aggregation |
Yes |
| Spanning Tree Protocol |
STP & RSTP |
| IGMP Snooping |
Yes (with advanced configuration) |
| 802.1X Authentication |
Yes |
| VLAN Support |
Yes (802.1Q) |
| Port Mirroring |
Yes |
| QoS (Quality of Service) |
Yes |
| Storm Control |
Yes |
| DHCP Snooping & Guarding |
Yes |
| MAC Address Blocking |
Yes |
| Port Isolation |
Yes |
Power
| Maximum Power Consumption |
40W |
| Power Method |
Universal input, 100-240V AC, 50/60 Hz |
| Power Supply |
AC/DC, internal, 60W |
| Heat Dissipation |
136.5 BTU/hr |
Environment
| Operating Temperature |
-15 to 40°C (5 to 104°F) |
| Operating Humidity |
10 to 90% non-condensing |
| Cooling |
Fanless (passive cooling) |
| ESD Protection |
Air: ±16kV, Contact: ±12kV |
Management & Software
| Management Interface |
UniFi Network Controller (cloud or self-hosted) |
| Application Requirements |
UniFi Network application |
| Web Interface |
Via UniFi Controller |
| SNMP |
Yes |
Certifications & Compliance
| Certifications |
CE, FCC, IC |
| NDAA Compliant |
Yes |
Specifications are sourced from the official manufacturer product page and may be updated.
