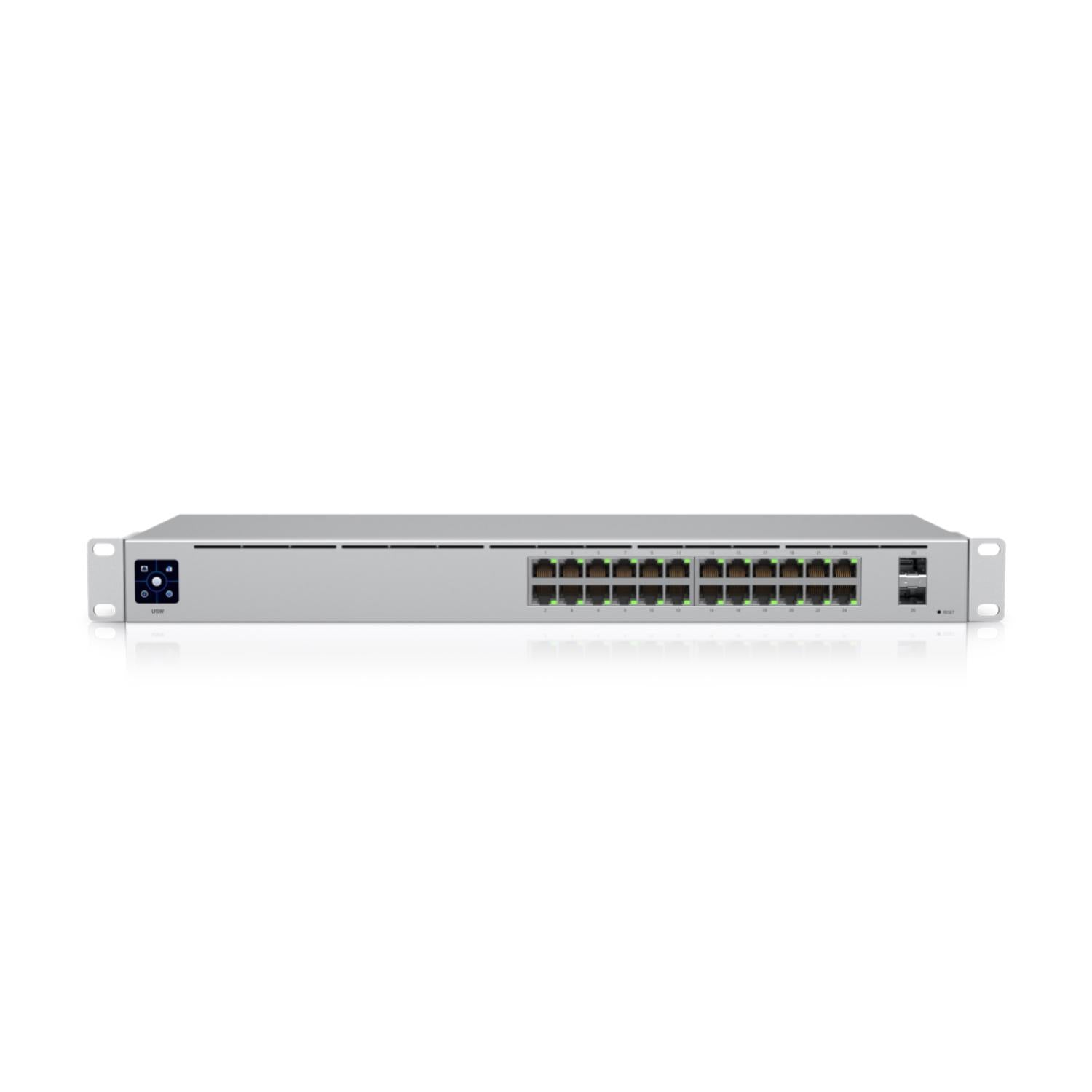

Ubiquiti USW-24 24-Port Gigabit Managed Switch with SFP Ports
The Ubiquiti UniFi USW-24 is a powerful Layer 2 managed switch featuring 24 Gigabit Ethernet ports and 2 SFP ports for flexible network expansion. Designed for business networks, office environments, and advanced home setups, this fanless, silent switch delivers 52 Gbps switching capacity with 26 Gbps non-blocking throughput and a 39 Mpps forwarding rate. With its compact 1U rack-mountable design and intuitive 1.3-inch touchscreen for quick diagnostics, the USW-24 is perfect for small to medium-sized networks that demand reliable, high-performance connectivity managed through the UniFi Network Controller.
Key Features
-
24 Gigabit Ethernet Ports: Connect computers, printers, access points, IP cameras, and other network devices with full Gigabit speeds (1G/100M/10M)
-
2 x 1G SFP Ports: Fiber uplink support for long-distance connections and high-capacity backbone links
-
52 Gbps Switching Capacity: Delivers 26 Gbps non-blocking throughput to ensure optimal traffic flow without bottlenecks
-
Silent Fanless Design: Passively cooled for quiet operation, ideal for offices, studios, and noise-sensitive environments
-
Compact 1U Rack Mount: 442 x 200 x 44 mm form factor with only 7.9-inch depth, perfect for shallow rack installations or desktop use
-
1.3-Inch Touchscreen Display: Provides real-time switch status and diagnostic information at a glance
-
UniFi Network Controller Management: Centralized management, monitoring, and configuration through Ubiquiti's powerful UniFi platform
-
Advanced Layer 2 Features: Supports VLAN management (1,000 VLANs), LACP port aggregation, STP/RSTP, IGMP snooping, 802.1X control, DHCP snooping, and MAC-based ACLs
Performance & Connectivity
The USW-24 is engineered to handle demanding network traffic with a forwarding rate of 39 Mpps, ensuring all ports can operate at full line rate simultaneously. With support for 8,000 MAC addresses and 1,000 VLANs, this switch is ideal for segmenting network traffic in enterprise environments, schools, hotels, multi-tenant buildings, and surveillance installations. The two SFP ports provide flexibility for fiber connections, enabling long-distance uplinks or high-speed connections to servers and storage systems.
Silent Operation for Any Environment
Thanks to its fanless, passively cooled design, the USW-24 operates completely silently, making it perfect for offices, conference rooms, studios, classrooms, and other noise-sensitive spaces. The durable SGCC steel enclosure ensures reliable operation while the compact form factor allows installation in tight spaces or standard 19-inch racks.
Unified Network Management
Manage your entire network from a single interface using the UniFi Network Controller. The USW-24 integrates seamlessly into the UniFi ecosystem, enabling centralized configuration, real-time monitoring, traffic analysis, and firmware updates across multiple sites. Advanced port management lets you configure port names, VLANs, operation modes (switching, mirroring, aggregate), 802.1X authentication, and RADIUS support on a per-port basis.
Ideal Applications
- Small to medium business networks
- Office connectivity for workstations, printers, and VoIP phones
- IP camera surveillance systems
- Network expansion with UniFi access points
- Multi-site deployments managed via UniFi Controller
- Home lab and advanced home network setups
- Hospitality and education network infrastructure
What's in the Box
- USW-24 Switch
- Rack mount kit
- Power cable
- Quick start guide
Full Specifications
Hardware
| Dimensions |
442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
| Weight |
2.70 kg (5.95 lb) without mount; 2.79 kg (6.15 lb) with mount |
| Enclosure Material |
SGCC Steel |
| Form Factor |
Rack mount (1U) |
| Cooling |
Fanless (passive) |
| Touchscreen |
1.3" LCM colour display with AR switch management |
Port Configuration
| Gigabit Ethernet (RJ45) |
24 ports (1G/100M/10M) |
| SFP Ports |
2 x 1G SFP |
| Total Ports |
26 |
Performance
| Switching Capacity |
52 Gbps |
| Total Non-Blocking Throughput |
26 Gbps |
| Forwarding Rate |
39 Mpps |
| MAC Address Table Size |
8,000 |
| Supported VLANs |
1,000 |
| Packet Buffer Size |
0.5 MB |
| Access Lists (IPv4) |
128 |
| Access Lists (MAC) |
128 |
Layer 2 Features
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| Advanced IGMP Configuration |
Yes (Querier, Fast Leave, Router Port) |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
Management
| Management Interface |
UniFi Network Controller |
| On-Device Management |
1.3" touchscreen display |
| Controller Requirements |
UniFi Network Application v5.12.x or newer |
Power
| Power Method |
AC/DC, internal power supply |
| AC Input |
100-240V AC, 50/60 Hz |
Specifications are sourced from the manufacturer product page and may be updated.
