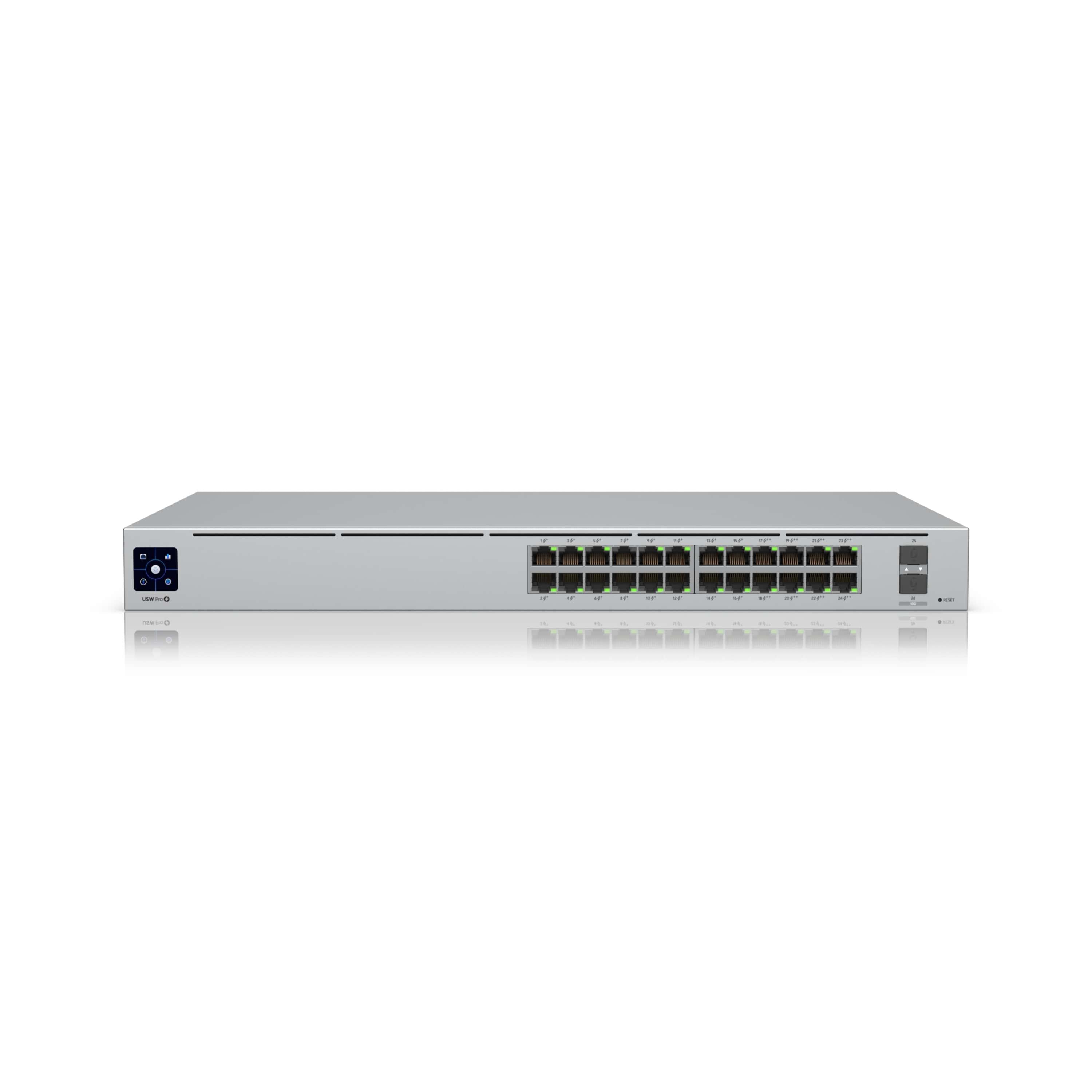

Ubiquiti USW-24 UniFi 24-Port Managed Gigabit Switch with SFP Ports
The Ubiquiti USW-24 is a fully managed Layer 2 Gigabit Ethernet switch designed for businesses, offices, and advanced home networks that demand reliable, high-performance connectivity. With 24 Gigabit Ethernet ports and 2 x 1G SFP ports for fiber uplinks, this switch delivers seamless network expansion, optimized traffic management, and silent operation with its fanless cooling system. Ideal for connecting workstations, servers, printers, access points, and storage devices, the USW-24 is managed via the intuitive UniFi Network Controller for centralized configuration and monitoring across your entire network.
Why Choose the Ubiquiti USW-24?
-
24 Gigabit Ethernet Ports: Connect multiple devices with full 1 Gbps speeds for fast file transfers, streaming, and data-intensive applications
-
2 x 1G SFP Ports: Add fiber uplinks for long-distance connections or high-speed inter-switch connectivity
-
Silent Fanless Design: Perfect for office environments, the fanless cooling system ensures whisper-quiet operation
-
Powerful Performance: 52 Gbps switching capacity, 26 Gbps non-blocking throughput, and 39 Mpps forwarding rate eliminate bottlenecks
-
1.3-Inch Touchscreen Display: View real-time switch status, port activity, and diagnostic information at a glance
-
Compact Rack-Mountable Design: 1U form factor fits standard 19-inch racks with a depth of just 200mm (7.9 inches)
Advanced Layer 2 Switching Features
The USW-24 is packed with enterprise-grade Layer 2 features to optimize your network performance and security:
-
VLAN Support: Create up to 1,000 VLANs to segment traffic for security, performance, and organization
-
LACP Port Aggregation: Combine multiple ports for increased bandwidth and redundancy
-
STP & RSTP: Spanning Tree Protocol prevents network loops and ensures network stability
-
IGMP Snooping: Optimizes multicast traffic for streaming and video applications
-
802.1X Authentication: Control network access with port-based authentication
-
DHCP Snooping & Guarding: Protect against rogue DHCP servers and network attacks
-
MAC-Based ACLs: Fine-grained access control and device isolation for enhanced security
Unified Network Management
Manage the USW-24 seamlessly with the UniFi Network Controller application (version 5.10.5 or later). Configure VLANs, monitor traffic, set up port profiles, and view real-time analytics from a single, intuitive dashboard. The UniFi ecosystem allows you to manage switches, access points, gateways, and security cameras from one centralized platform, whether on-premises or in the cloud.
Perfect for Business & Office Networks
Whether you're building a small office network, expanding an existing infrastructure, or deploying a campus-wide solution, the USW-24 delivers the performance and flexibility you need. Its 52 Gbps switching capacity ensures that all ports can operate at full speed simultaneously without packet loss. The 8,000-entry MAC address table and 0.5 MB packet buffer provide ample resources for demanding network environments.
Silent, Compact, and Reliable
The USW-24's fanless design makes it ideal for noise-sensitive environments like offices, conference rooms, studios, and retail spaces. The durable SGCC steel enclosure ensures long-term reliability, while the wide operating temperature range of -5°C to 45°C allows deployment in a variety of environments. Desktop or rack-mount installation options give you flexibility in placement.
Universal Connectivity
-
24 x Gigabit Ethernet RJ45 Ports: 10/100/1000 Mbps auto-sensing
-
2 x 1G SFP Ports: For fiber optic uplinks or long-distance connections
-
1 x AC Power Input: Universal 100-240V AC, 50/60 Hz
What's in the Box
- USW-24 Switch
- Power Cord
- Rack Mount Brackets
- Mounting Screws
- Quick Start Guide
Full Specifications
Hardware
| Port Layout |
24 x Gigabit Ethernet RJ45 (1G/100M/10M), 2 x 1G SFP |
| Form Factor |
Rack mount (1U), Desktop |
| Dimensions |
442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
| Weight |
2.7 kg (6 lb) without brackets, 2.8 kg (6.2 lb) with brackets |
| Enclosure Material |
SGCC steel |
| Cooling System |
Fanless (silent operation) |
| LCM Display |
1.3" touchscreen |
Performance
| Switching Capacity |
52 Gbps |
| Total Non-Blocking Throughput |
26 Gbps |
| Forwarding Rate |
39 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
8,000 |
| Packet Buffer Size |
0.5 MB |
| Access Lists (IPv4) |
128 |
| Access Lists (MAC) |
128 |
Layer 2 Features
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| Advanced IGMP Configuration |
Yes (Querier, Fast Leave, Router Port) |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
Power
| Max. Power Consumption |
25W |
| Power Method |
Universal input, 100-240V AC, 50/60 Hz |
| Power Supply |
AC/DC, internal, 36W |
| Heat Dissipation |
85.3 BTU/hr |
Environment
| Operating Temperature |
-5 to 45°C (23 to 113°F) |
| Operating Humidity |
10 to 90% noncondensing |
| ESD Protection |
Air: ±16kV, Contact: ±12kV |
| Certifications |
CE, FCC, IC, Anatel |
| NDAA Compliant |
Yes |
Management
| Management Interface |
UniFi Network Controller |
| Minimum Software Version |
UniFi Network application (version 5.10.5 or later) |
| Configuration |
Web-based GUI, Mobile App |
Specifications are sourced from the manufacturer product page and may be updated.
