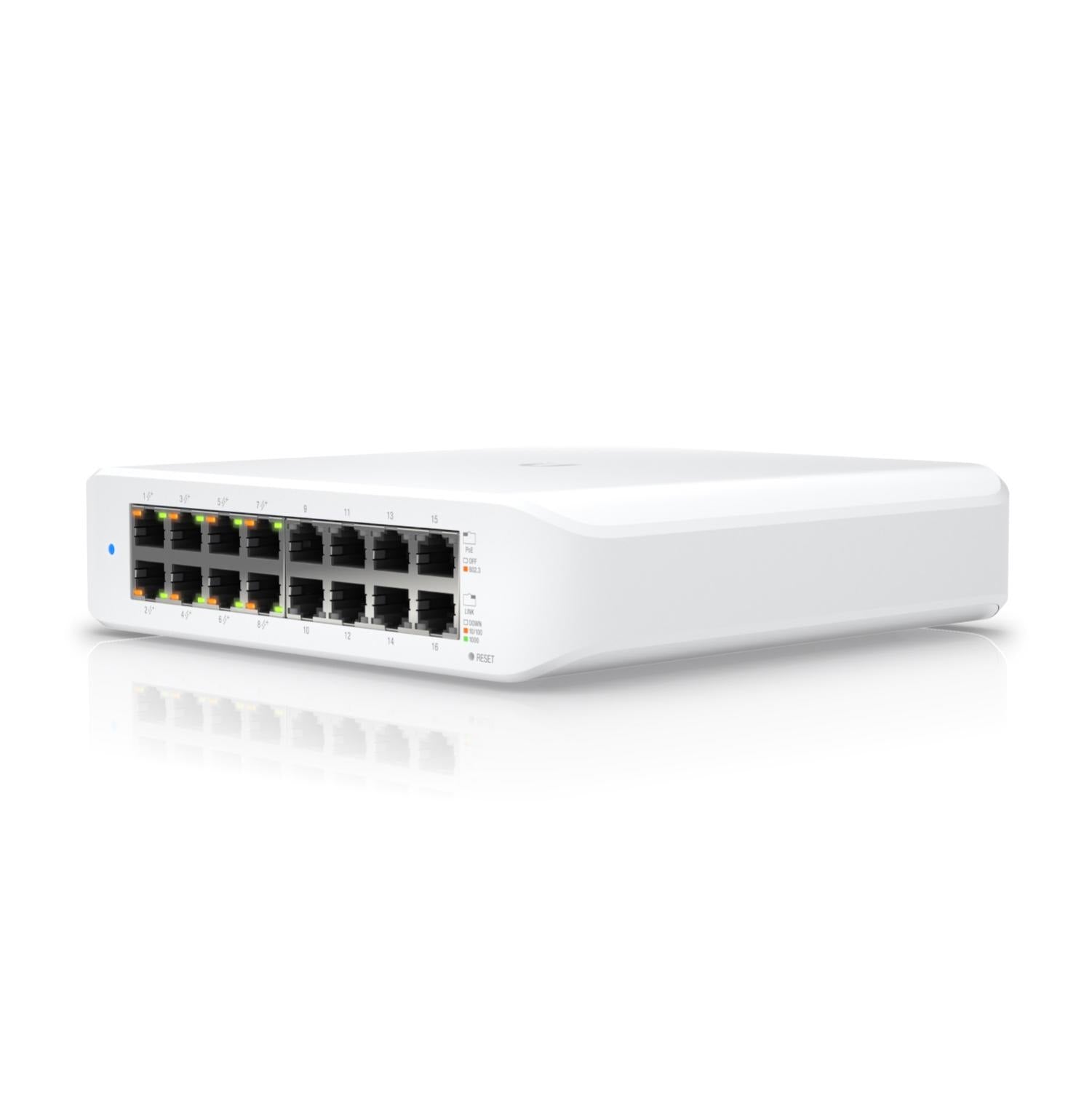

Ubiquiti USW-Lite-16-PoE 16-Port Gigabit Managed Switch with 8x PoE+
The Ubiquiti USW-Lite-16-PoE is a fully managed Layer 2 switch designed for small to medium-sized networks that demand reliable performance, power over Ethernet capabilities, and advanced management features. With 16 Gigabit Ethernet ports (8 with PoE+), a 45W total PoE budget, and fanless silent operation, this compact switch is perfect for home offices, small businesses, classrooms, and network expansions. Managed via the intuitive UniFi Network Controller, it delivers enterprise-grade features in a wall-mountable, desktop-friendly form factor.
Key Features
-
16 Gigabit Ethernet ports: Connect computers, printers, storage devices, and more with high-speed 10/100/1000 Mbps connectivity
-
8 PoE+ ports (802.3af/at): Power UniFi access points, IP cameras, VoIP phones, and other PoE devices with up to 30W per port and a 45W total budget
-
Layer 2 managed switch: Advanced features including VLAN support (1,000 VLANs), LACP port aggregation, STP/RSTP, IGMP snooping, 802.1X authentication, and MAC-based ACLs
-
Fanless design: Silent operation ideal for noise-sensitive environments like offices, studios, and meeting rooms
-
UniFi Network Controller: Centralized cloud-based or local management with graphical interface and mobile app support for configuration and monitoring from anywhere
-
Compact and versatile: Wall-mountable or desktop installation with included mounting kit
Enterprise Performance in a Compact Package
The USW-Lite-16-PoE delivers 32 Gbps switching capacity and 16 Gbps total non-blocking throughput, ensuring your network can handle demanding applications without bottlenecks. With a 24 Mpps forwarding rate, 8,000-entry MAC address table, and 0.5 MB packet buffer, this switch is built for real-world network traffic. Whether you're deploying IP surveillance systems, expanding office connectivity, or building out a UniFi ecosystem, the USW-Lite-16-PoE scales to meet your needs.
Power Over Ethernet for Simplified Deployment
Eight ports support 802.3af/at PoE+ with auto-sensing capabilities, delivering up to 30W per port and a total power budget of 45W. This eliminates the need for separate power adapters for compatible devices like UniFi access points, IP cameras, VoIP phones, and IoT devices, reducing cable clutter and installation costs. The remaining eight ports provide standard Gigabit Ethernet connectivity for non-PoE devices.
Advanced Layer 2 Management
Managed via the UniFi Network Controller software (available for Windows, macOS, Linux, and as a Cloud Key appliance), the USW-Lite-16-PoE offers comprehensive network control. Configure up to 1,000 VLANs for network segmentation, enable LACP port aggregation for increased bandwidth, and deploy 802.1X authentication for enhanced security. The controller provides real-time monitoring, traffic analytics, and firmware updates, all accessible via desktop or the UniFi mobile app.
Silent, Efficient, and Reliable
The fanless cooling system ensures whisper-quiet operation, making the USW-Lite-16-PoE ideal for installations where noise is a concern. With a 15W power consumption (excluding PoE output) and an internal 60W AC/DC power supply supporting universal 100-240V AC input, this switch is energy-efficient and ready to deploy worldwide. Its robust metal chassis and compact 192 x 185 x 44 mm footprint fit seamlessly into any environment.
Flexible Installation Options
The USW-Lite-16-PoE can be deployed on a desktop or mounted to a wall using the included mounting kit, offering flexibility for different installation scenarios. Its compact design makes it easy to integrate into network racks, under desks, or in server rooms without taking up valuable space.
What's in the Box
- USW-Lite-16-PoE switch
- 60W AC power cord
- Wall mounting kit
- Installation guide
Full Specifications
Ports & Interfaces
| Total Ports |
16 Gigabit Ethernet RJ45 (10/100/1000 Mbps) |
| PoE+ Ports |
8 ports (802.3af/at PoE+) |
| Management Port |
1 GbE RJ45 |
| Max PoE Wattage per Port |
30W |
| Total PoE Budget |
45W |
Performance
| Switching Capacity |
32 Gbps |
| Total Non-Blocking Throughput |
16 Gbps |
| Forwarding Rate |
24 Mpps |
| MAC Address Table Size |
8,000 entries |
| Packet Buffer Size |
0.5 MB |
Layer 2 Features
| VLANs Supported |
1,000 |
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs |
Yes |
| IPv4 Access Lists |
128 |
| MAC Access Lists |
128 |
Power
| Power Supply |
Internal 60W AC/DC |
| AC Input |
100-240V AC (universal) |
| Max Power Consumption |
15W (excluding PoE output)
60W (including PoE output) |
Physical
| Dimensions |
192 x 185 x 44 mm (7.6 x 7.3 x 1.7 inches) |
| Weight |
1.2 kg (2.65 lb) |
| Form Factor |
Compact desktop, wall-mountable |
| Cooling |
Fanless (silent operation) |
| Operating Temperature |
0 to 40°C (32 to 104°F) |
Management
| Management Interface |
UniFi Network Controller (software or Cloud Key) |
| Mobile App Support |
Yes (UniFi mobile app) |
| Layer |
Layer 2 managed switch |
Specifications are sourced from the manufacturer product page and may be updated.
