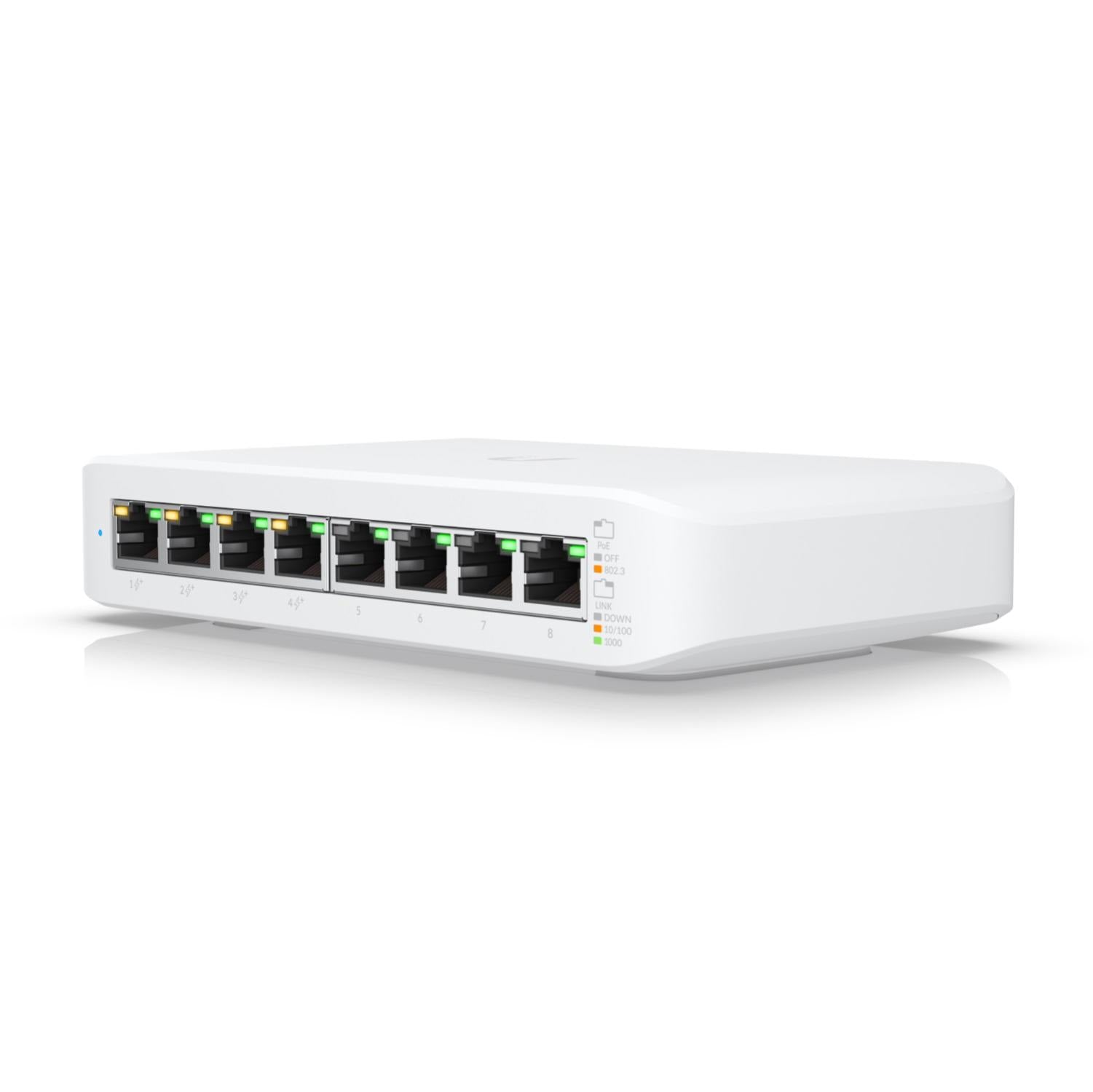

Ubiquiti USW-Lite-8-PoE 8-Port Managed Gigabit Switch with PoE+
The Ubiquiti USW-Lite-8-PoE is a fully managed Layer 2 Gigabit switch with 8 Gigabit Ethernet ports, including 4 PoE+ ports (802.3af/at) delivering up to 52W total PoE power. Perfect for expanding your UniFi network with access points, cameras, and VoIP phones, this compact switch offers silent fanless cooling, desktop or wall-mount installation, and centralized management through the UniFi Network Controller.
Key Features
-
8 Gigabit Ethernet Ports: Connect multiple devices with fast Gigabit speeds (1G/100M/10M)
-
4 PoE+ Ports: Auto-sensing 802.3at PoE+ with up to 30W per port and 52W total power budget
-
Fanless Design: Completely silent operation, ideal for offices, meeting rooms, and home environments
-
Compact & Lightweight: Just 295g and wall-mountable with included kit
-
Centralized Management: Managed via UniFi Network Controller with mobile app support
-
Advanced Layer 2 Features: VLAN support, IGMP snooping, link aggregation (LACP), and STP/RSTP
Powerful Network Performance
Despite its compact size, the USW-Lite-8-PoE delivers robust Layer 2 switching performance with 16 Gbps switching capacity and 8 Gbps non-blocking throughput. With a forwarding rate of 12 Mpps, it can handle demanding Gigabit traffic from multiple devices without bottlenecks.
The switch supports up to 1,000 VLANs for network segmentation, an 8,000-entry MAC address table, and advanced features like LACP port aggregation, 802.1X authentication, and IGMP snooping for efficient multicast traffic management. Perfect for small offices, retail environments, classrooms, or home networks requiring professional-grade performance.
Power Over Ethernet for All Your Devices
The USW-Lite-8-PoE includes 4 PoE+ ports supporting 802.3af/at standards, delivering up to 30W per port and a total PoE budget of 52W. Power and connect UniFi access points, IP cameras, VoIP phones, and other PoE-enabled devices without needing separate power adapters.
An external 60W power adapter is included, providing stable power delivery via 54V DC input (supported voltage range: 50-57V). The switch consumes just 8W excluding PoE output, making it energy-efficient and cost-effective for 24/7 operation.
Silent, Compact, and Flexible Installation
With its fanless cooling design, the USW-Lite-8-PoE operates completely silently, making it perfect for noise-sensitive environments like home offices, conference rooms, or reception areas. The compact form factor (99.6 x 163.7 x 31.7 mm) and lightweight polycarbonate enclosure (295g) allow for desktop placement or wall mounting with the included mounting kit.
Centralized Management with UniFi Network Controller
The switch is managed through the UniFi Network Controller (version 7.2.94 or later) and supports the UniFi mobile app, allowing you to configure, monitor, and troubleshoot your network from anywhere. Enjoy features like remote firmware upgrades, port configuration, traffic monitoring, and guest network management all from a single, intuitive interface.
Advanced management features include port mirroring for traffic analysis, MAC-based ACLs for device isolation, Voice VLAN support for VoIP prioritization, and jumbo frame support for data-intensive workloads.
What's in the Box
- Ubiquiti USW-Lite-8-PoE Switch
- External 60W Power Adapter (54V DC, 1.1A)
- Wall Mounting Kit
- Quick Start Guide
Full Specifications
Hardware
| Ports |
8 x Gigabit Ethernet RJ45 (4 PoE+, 4 standard) |
| PoE Standard |
802.3af/at PoE+ |
| Total PoE Budget |
52W |
| Max. PoE per Port |
30W |
| Management Interface |
Ethernet In-Band |
| LEDs |
System and port status indicators |
Performance
| Switching Capacity |
16 Gbps |
| Total Non-Blocking Throughput |
8 Gbps |
| Forwarding Rate |
12 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
8,000 |
| Packet Buffer Size |
0.5 MB |
Layer 2 Features
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| IGMP Snooping |
Yes (with Querier, Fast Leave, Router Port) |
| 802.1X Control |
Yes |
| MAC-Based ACLs |
Yes (128 MAC ACLs) |
| IPv4 Access Lists |
128 |
| Jumbo Frames |
Supported |
| Port Mirroring |
Yes |
Power
| Power Method |
54V DC, 1.1A power adapter (included) |
| Power Supply |
External 54V/60W adapter |
| Supported Voltage Range |
50-57V DC |
| Max. Power Consumption |
8W (excluding PoE), 60W (including PoE) |
Physical
| Dimensions |
99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25") |
| Weight |
295 g (10.4 oz) |
| Enclosure |
Polycarbonate |
| Form Factor |
Compact desktop, wall-mountable |
| Cooling |
Fanless (silent operation) |
Environmental
| Operating Temperature |
-15 to 40°C (5 to 104°F) |
| Operating Humidity |
10-90% non-condensing |
| Certifications |
CE, FCC, IC |
Specifications are sourced from the manufacturer product page and may be updated.
