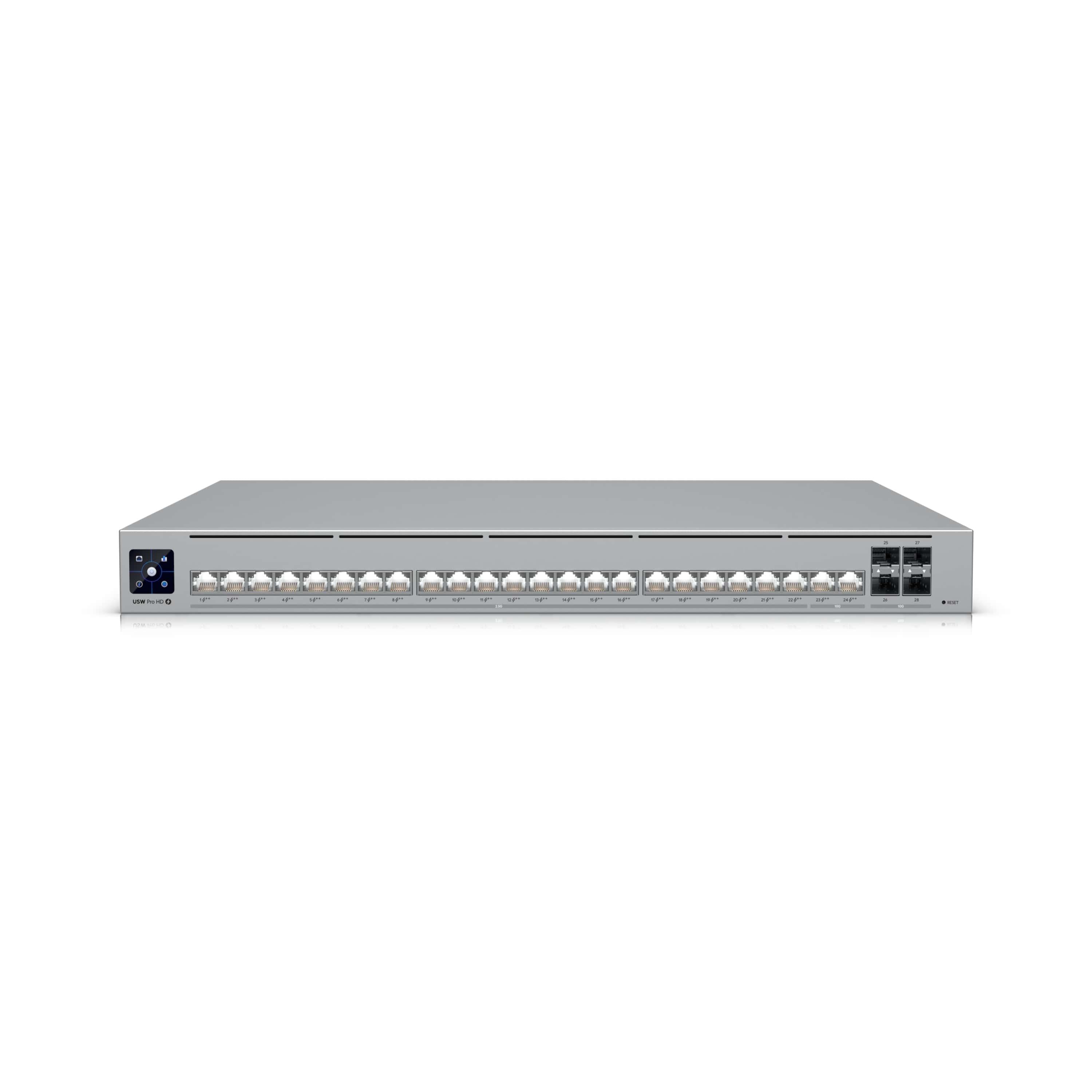

Ubiquiti USW-Pro-HD-24-PoE UniFi Switch Pro HD 24 PoE
The Ubiquiti USW-Pro-HD-24-PoE is a professional-grade Layer 3 Etherlighting switch designed for high-performance enterprise and commercial networks. With 22 x 2.5GbE PoE++ ports, 2 x 10GbE PoE++ ports, and 4 x 10G SFP+ ports, this switch delivers exceptional multi-gigabit performance and 600W total PoE budget to power IP cameras, Wi-Fi 6E access points, PTZ cameras, LED panels, and other high-demand PoE devices. Perfect for UniFi Protect deployments, surveillance installations, campus networks, and professional AV systems across Australia.
Why You'll Love the USW-Pro-HD-24-PoE
-
Multi-Gigabit Performance: 22 ports of 2.5GbE connectivity future-proof your network for Wi-Fi 6E access points, NVRs, and high-bandwidth devices
-
Massive PoE++ Budget: 600W total PoE budget with up to 60W per port supports even the most power-hungry devices without external injectors
-
10G Uplinks: 2 x 10GbE RJ45 and 4 x 10G SFP+ ports provide high-speed uplinks and fiber connectivity for backbone aggregation
-
Layer 3 Routing: Full Layer 3 capabilities with VLAN routing, STP, RSTP, and support for up to 1,000 VLANs for complex network segmentation
-
Etherlighting Technology: Illuminated ports indicate port location, speed/link status, and native VLAN for easy troubleshooting and remote identification
-
1.3-inch Touchscreen: Built-in LCM display provides real-time status, diagnostics, and configuration without connecting a controller
Professional Layer 3 Switching for Demanding Networks
The USW-Pro-HD-24-PoE delivers 230 Gbps switching capacity and 115 Gbps non-blocking throughput with a 171.12 Mpps forwarding rate, ensuring wire-speed performance across all ports simultaneously. The switch supports advanced Layer 3 routing, STP/RSTP protocols, and up to 1,000 VLANs, making it ideal for enterprise environments requiring traffic segmentation and high-performance routing. Managed via the UniFi Network Controller, this switch integrates seamlessly into UniFi ecosystems for centralized management and monitoring.
High-Power PoE++ for Next-Generation Devices
Each of the 24 PoE++ ports delivers up to 60W per port with 600W total PoE budget, allowing you to power demanding devices like Wi-Fi 6E APs, 4K PTZ cameras, video conferencing systems, and LED lighting without additional power supplies. The switch supports 802.3bt PoE++, 802.3at PoE+, and 802.3af PoE standards, providing backward compatibility with all PoE device types. Redundant DC power backup (via optional UniFi RPS) ensures uninterrupted PoE delivery in mission-critical installations.
Etherlighting for Instant Visual Identification
The Etherlighting feature illuminates each Ethernet port with customizable RGB LEDs, allowing you to instantly identify port location, link speed, and VLAN assignment from across the room. This feature is invaluable for remote troubleshooting, datacenter rack identification, and large-scale deployments where visual port identification saves time and reduces errors.
Robust Enterprise-Grade Construction
Housed in a 1U rack-mountable chassis constructed from durable SGCC steel, the USW-Pro-HD-24-PoE is built for demanding environments. The switch operates reliably in ambient temperatures from -5 to 40°C with 10 to 90% non-condensing humidity, making it suitable for server rooms, telecom closets, and climate-controlled installations. The 1.3-inch touchscreen provides on-device diagnostics and status monitoring, while the switch supports rack depths from 600 to 1,200 mm for flexible installation.
Connectivity & Performance
-
22 x 2.5GbE RJ45 PoE++ ports: Multi-gigabit Ethernet supporting 2.5G/1G/100M/10M speeds with up to 60W PoE++ per port
-
2 x 10GbE RJ45 PoE++ ports: High-speed uplinks supporting 10G/5G/2.5G/1G/100M with up to 60W PoE++ per port
-
4 x 10G SFP+ ports: Fiber uplinks supporting 10G/1G SFP+ modules for backbone connectivity
-
230 Gbps switching capacity with 115 Gbps non-blocking throughput
-
171.12 Mpps forwarding rate for wire-speed switching
-
Layer 3 routing with VLAN support (up to 1,000 VLANs)
Power & Redundancy
-
600W total PoE budget with up to 60W per port (PoE++)
-
Internal 660W AC/DC power supply: Universal input 100-240V AC, 50/60 Hz
-
Redundant DC power backup: USP RPS DC input (UniFi RPS sold separately)
-
Power consumption: 60W excluding PoE output, 660W including PoE output
Management & Certifications
- Managed via UniFi Network Controller (version 9.0.114 or later)
- Ethernet in-band management
- NDAA compliant
-
Certifications: CE, FCC, IC, Anatel (03853-25-08356)
What's in the Box
- USW-Pro-HD-24-PoE switch
- Rack-mount brackets
- Power cord
- Quick start guide
Full Specifications
Physical
| Dimensions |
442 × 400 × 44 mm (17.4 × 15.7 × 1.7") |
| Weight (without brackets) |
6.2 kg (13.7 lb) |
| Weight (with brackets) |
6.3 kg (13.9 lb) |
| Enclosure Material |
SGCC steel |
| Form Factor |
1U rack-mountable |
| Supported Rack Depth |
600 - 1,200 mm (23.6 - 47.2") |
| LCM Display |
1.3" touchscreen |
Networking Interfaces
| 2.5 GbE RJ45 PoE++ Ports |
22 (2.5G/1G/100M/10M, all PoE++) |
| 10 GbE RJ45 PoE++ Ports |
2 (10G/5G/2.5G/1G/100M, all PoE++) |
| 10G SFP+ Ports |
4 (10G/1G) |
| Total PoE Ports |
24 |
Performance
| Switching Capacity |
230 Gbps |
| Total Non-Blocking Throughput |
115 Gbps |
| Forwarding Rate |
171.12 Mpps |
| Layer 3 |
Yes |
| VLAN Support |
Up to 1,000 VLANs |
PoE Specifications
| Max PoE Output |
Up to PoE++ (802.3bt) |
| Max PoE Wattage per Port |
60W |
| Total PoE Budget |
600W |
| PoE Standards |
802.3af, 802.3at, 802.3bt |
Power
| Power Method |
(1) Universal input, 100-240V AC, 50/60 Hz
(1) USP RPS DC input (optional) |
| Power Supply |
AC/DC, internal, 660W |
| Supported Voltage Range |
100-240V AC |
| Power Consumption |
60W (excluding PoE output)
660W (including PoE output) |
| Redundancy |
DC power backup (via optional UniFi RPS) |
Environment
| Operating Temperature |
-5 to 40°C (23 to 104°F) |
| Operating Humidity |
10 to 90% non-condensing |
Management & Certifications
| Management Interface |
Ethernet in-band |
| Application Requirements |
UniFi Network Controller (version 9.0.114 or later) |
| Etherlighting |
Ethernet: Yes
SFP+: Yes |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 03853-25-08356 |
Specifications are sourced from the manufacturer product page and may be updated.
