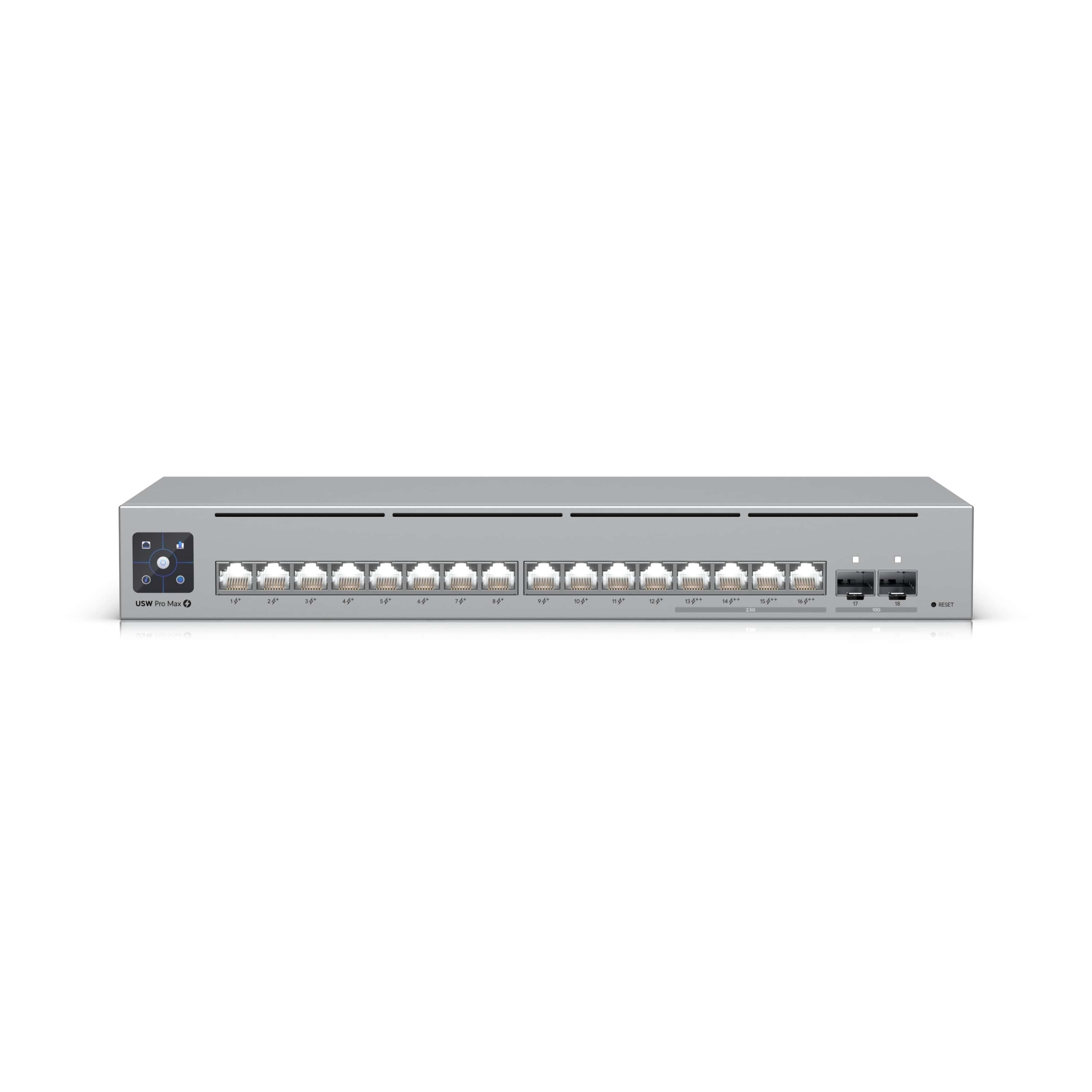

Ubiquiti USW-Pro-Max-16-PoE UniFi 16-Port Layer 3 Managed Network Switch with PoE++
The Ubiquiti USW-Pro-Max-16-PoE is a powerful Layer 3 Etherlighting switch designed for businesses, educational institutions, and professional installations requiring high-speed networking with advanced Power over Ethernet (PoE++) capabilities. This 16-port managed switch features 12 Gigabit Ethernet PoE+ ports and 4 × 2.5GbE PoE++ ports, delivering a total 180W PoE budget to power IP cameras, wireless access points, VoIP phones, and other network devices without additional power supplies. With dual 10G SFP+ uplinks, a 1.3-inch touchscreen display, and innovative Etherlighting technology, the USW-Pro-Max-16-PoE is the ideal solution for modern network deployments that demand flexibility, performance, and intelligent management.
Why Choose the USW-Pro-Max-16-PoE?
-
Multi-Gigabit PoE++ Ports: 4 × 2.5GbE PoE++ ports deliver up to 60W per port for high-power devices like WiFi 7 access points and PTZ cameras
-
180W Total PoE Budget: Power multiple PoE devices simultaneously with 12 PoE+ (30W) and 4 PoE++ (60W) ports across the 16-port layout
-
Layer 3 Routing & Advanced Switching: Supports inter-VLAN routing, static routing, DHCP server/relay, LACP, STP/RSTP, QoS, and advanced IGMP for professional-grade network segmentation
-
Dual 10G SFP+ Uplinks: Connect to aggregation or core switches with high-speed 10 Gigabit fibre uplinks for maximum throughput
-
Etherlighting Technology: Colour-coded port illumination indicates link speed, PoE status, and VLAN/network assignments at a glance
-
Integrated Touchscreen Display: 1.3-inch LCM touchscreen provides real-time device status, network info, and alerts without opening software
-
Versatile Mounting Options: Deploy as desktop, wall-mounted, or rack-mounted (1U) with optional rack mount kit for flexible installation
-
UniFi Network Management: Seamlessly managed via the UniFi Network application for centralised configuration, monitoring, and alerts
High-Performance Switching for Modern Networks
The USW-Pro-Max-16-PoE delivers an impressive 84 Gbps switching capacity and 42 Gbps non-blocking throughput with a 62.496 Mpps forwarding rate, ensuring smooth, lag-free data transfers even under heavy network loads. Whether you're deploying high-resolution IP surveillance, connecting multi-gigabit access points, or building a professional AV network, this switch provides the backbone performance you need. Layer 3 capabilities include support for 512 IPv4 routes, 256 static routes, and 6,000 ARP entries, making it suitable for complex routed networks and multi-site installations.
Advanced Power over Ethernet
With a total PoE availability of 180W, the USW-Pro-Max-16-PoE provides flexible power distribution across all 16 ports. The 12 Gigabit Ethernet ports support PoE/PoE+ standards (up to 30W per port), ideal for standard access points, IP phones, and basic cameras. The 4 × 2.5GbE ports deliver PoE++ power (up to 60W per port), perfect for the latest WiFi 7 access points, high-power PTZ cameras, video conferencing equipment, and other demanding devices. PoE power settings can be configured per port for optimised power usage and device protection.
Etherlighting: Visual Network Intelligence
Ubiquiti's innovative Etherlighting technology uses colour-coded LED illumination on each Ethernet and SFP+ port to provide instant visual feedback. Ports can be configured to display speed-based colours (indicating 100M, 1G, 2.5G, or 10G link speeds) or network-based colours tied to specific VLANs or network roles. Brightness and breathing mode controls let you adjust lighting for different environments, whether in a rack, office, or lab. Etherlighting is especially useful in dense or low-light installations, enabling quick visual confirmation during deployment, troubleshooting, or network changes.
Layer 3 & Pro AV Features
As a full Layer 3 switch, the USW-Pro-Max-16-PoE supports advanced routing protocols including inter-VLAN routing, static routing, DHCP server and relay, and comprehensive access control lists (ACLs). Layer 2 features include LACP link aggregation, Spanning Tree Protocol (STP/RSTP), QoS with DSCP tagging, 802.1X authentication, DHCP snooping, rate limiting, port mirroring, jumbo frame support, and loop protection. The switch also supports Pro AV profiles optimised for professional audio/video applications including Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron, making it an excellent choice for integrators and AV professionals.
UniFi Network Management
The USW-Pro-Max-16-PoE integrates seamlessly with the UniFi Network application (version 8.1.127 or later), enabling centralised management, configuration, and monitoring of all network devices. The intuitive Port Manager view displays all 16 Ethernet ports and both SFP+ uplinks with real-time indicators for link speed, connection state, and PoE mode. The software provides live PoE usage meters, traffic statistics, and comprehensive alerts, making day-to-day network management straightforward. Management can be self-hosted, run on a UniFi Cloud Key, or deployed on a Dream Machine appliance. The switch can also be managed via SSH for advanced users.
Compact & Flexible Design
Measuring just 325.1 × 160 × 43.7 mm (12.8 × 6.3 × 1.7 inches) and weighing 2.1 kg (4.6 lb), the USW-Pro-Max-16-PoE is a true compact 1U device with a shallow depth that fits easily on desks, shelves, or in shallow wall cabinets. The rugged SGCC steel enclosure ensures durability, while the included mounting options support desktop, wall, or rack installation (optional Pro Max 16 Rack Mount Kit required for rack mounting). The switch uses an external 210W AC/DC power supply (50-54V DC), keeping the chassis smaller and cooler while delivering the full 180W PoE budget. Maximum power consumption is 25W excluding PoE output or 210W including PoE output.
Reliable Operation in Demanding Environments
Built for professional deployments, the USW-Pro-Max-16-PoE operates reliably in ambient temperatures from -5°C to 40°C (23°F to 104°F) and humidity levels from 10% to 90% non-condensing. The switch supports 1,000 VLANs, a 16,000 MAC address table, and a 1.5 MB packet buffer for optimal traffic handling. Heat dissipation is 102.36 BTU/hr (excluding PoE output), and the switch is certified to CE, FCC, and IC standards.
What's in the Box
- USW-Pro-Max-16-PoE network switch
- 210W AC/DC external power supply
- Power cord (AU plug)
- Installation guide
Full Specifications
Hardware
| Dimensions |
325.1 × 160 × 43.7 mm (12.8 × 6.3 × 1.7 in.) |
| Weight |
2.1 kg (4.6 lb) |
| Enclosure Material |
SGCC steel |
| Form Factor |
1U rack mount, desktop, wall mount |
| LCM Display |
1.3-inch touchscreen |
| Etherlighting |
Yes (Ethernet and SFP+ ports) |
Networking Interface
| 1 GbE RJ45 Ports |
12 (All PoE+) (1G/100M/10M) |
| 2.5 GbE RJ45 Ports |
4 (All PoE++) (2.5G/1G/100M/10M) |
| 10G SFP+ Ports |
2 (10G/1G) |
| Total Ports |
16 RJ45 + 2 SFP+ |
PoE Interface
| PoE+ Ports |
12 ports (Pins 1, 2+; 3, 6-) |
| PoE++ Ports |
4 ports (Pair A: 1, 2+; 3, 6-) (Pair B: 4, 5+; 7, 8-) |
| Max PoE Wattage per Port |
PoE: 15.4W, PoE+: 30W, PoE++: 60W |
| Total PoE Availability |
180W |
Performance
| Switching Capacity |
84 Gbps |
| Total Non-Blocking Throughput |
42 Gbps |
| Forwarding Rate |
62.496 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
16,000 |
| ARP Entries |
6,000 |
| IPv4 Routes |
512 |
| IPv4 Static Routes |
256 |
| Packet Buffer Size |
1.5 MB |
Layer 2 & Layer 3 Features
| Layer 3 |
Yes (Inter-VLAN Routing, Static Routing, DHCP Server/Relay) |
| Layer 2 Features |
LACP, STP/RSTP, QoS (DSCP), Pro AV Profiles (Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron), IGMP Snooping, 802.1X, ACLs, DHCP Snooping, Rate Limiting, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection |
Power
| Power Method |
External AC/DC adapter |
| Power Supply |
AC/DC, external, 210W |
| Supported Voltage Range |
50-54V DC |
| Max Power Consumption |
25W (Excluding PoE Output)
210W (Including PoE Output) |
| Heat Dissipation |
102.36 BTU/hr (Excluding PoE Output) |
Management
| Management Interface |
UniFi Network Application (v8.1.127+), Ethernet In-Band, SSH |
| Management Features |
Centralised management, port configuration, PoE monitoring, traffic statistics, real-time alerts |
Environmental
| Ambient Operating Temperature |
-5°C to 40°C (23°F to 104°F) |
| Ambient Operating Humidity |
10% to 90% non-condensing |
| Certifications |
CE, FCC, IC |
What's in the Box
| Included Items |
USW-Pro-Max-16-PoE switch, 210W AC/DC power supply, power cord (AU plug), installation guide |
| Optional Accessories |
Pro Max 16 Rack Mount Kit (sold separately) |
Specifications are sourced from the manufacturer product page and may be updated.
