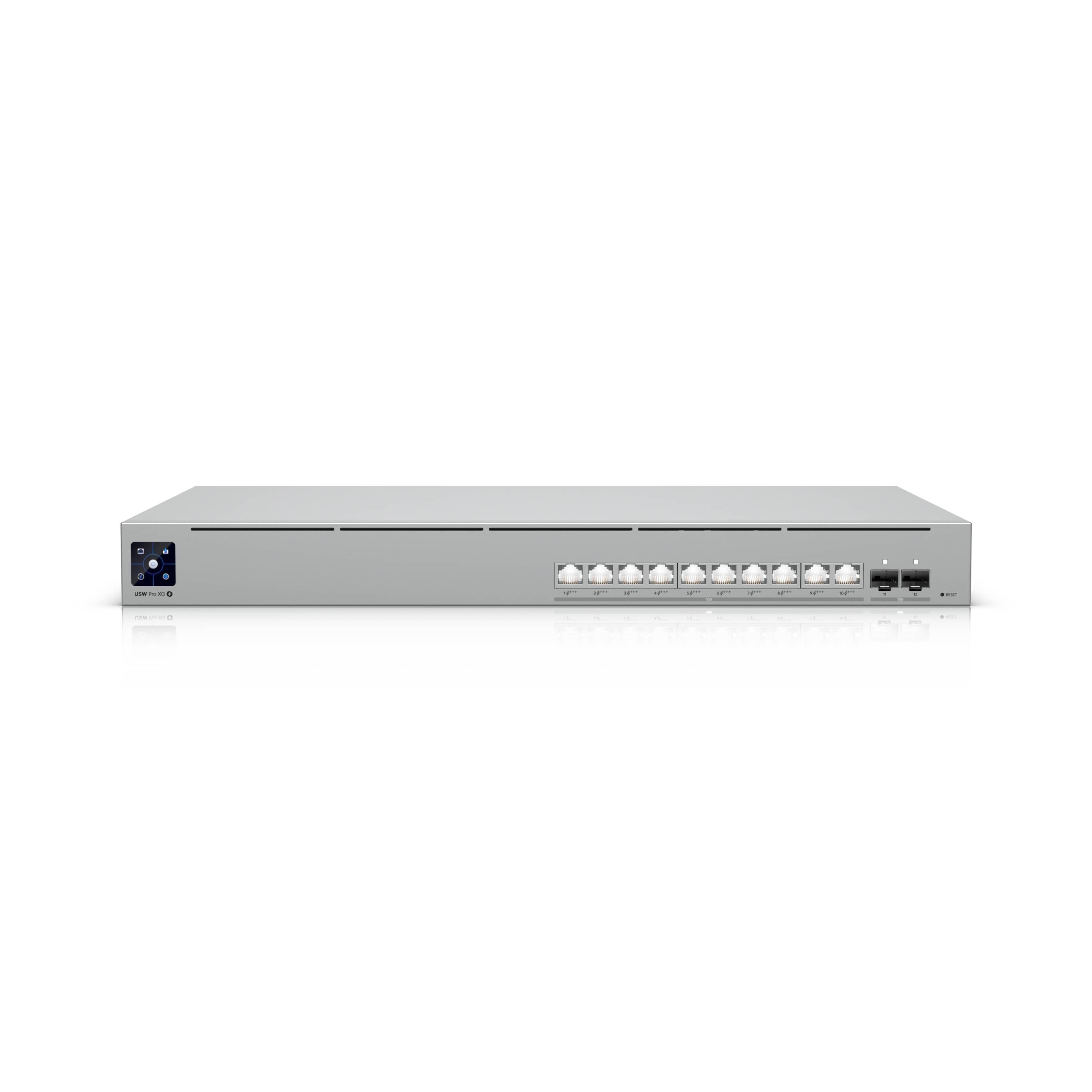

Ubiquiti USW-Pro-XG-10-PoE 10-Port 10GbE Layer 3 PoE Switch with 400W Total Power
The Ubiquiti USW-Pro-XG-10-PoE is a professional-grade 1U rack-mountable network switch designed for high-performance enterprise, professional AV, and advanced home networking applications. Featuring 10 multi-gigabit 10GbE RJ45 ports with full PoE+++ support (up to 90W per port), plus 2 dedicated 10G SFP+ uplink ports, this Layer 3 switch delivers exceptional throughput, advanced routing capabilities, and a massive 400W total PoE budget to power even the most demanding connected devices including Wi-Fi 7 access points, PTZ security cameras, and AV-over-IP equipment.
Key Features
-
10 Multi-Speed 10GbE PoE+++ Ports: All RJ45 ports support 10G/5G/2.5G/1G/100M speeds and deliver up to 90W per port for ultimate flexibility
-
2 High-Speed 10G SFP+ Uplinks: Fiber or copper connectivity for high-throughput backhaul and inter-switch connections
-
400W Total PoE Availability: Industry-leading power budget supports multiple high-power devices simultaneously
-
Layer 3 Switching: Advanced routing features including DHCP server, inter-VLAN routing, and static routing for intelligent network segmentation
-
Etherlighting Technology: Illuminated ports indicate port location, speed/link status, and VLAN assignment for easier management
-
1.3-Inch Touchscreen Display: On-device LCD with AR-based switch management for quick diagnostics and configuration
Enterprise-Grade Performance and Reliability
With a 240 Gbps switching capacity, 120 Gbps non-blocking throughput, and a 179 Mpps forwarding rate, the USW-Pro-XG-10-PoE ensures low-latency, high-throughput performance suitable for demanding applications. It supports up to 1,000 VLANs and a 32,000-entry MAC address table, accommodating complex network topologies with ease. The switch also offers DC power backup via the optional UniFi SmartPower RPS system for mission-critical uptime.
Advanced Layer 3 and Layer 2 Networking
The USW-Pro-XG-10-PoE provides comprehensive Layer 3 features including DHCP server and relay, inter-VLAN routing, and support for up to 256 IPv4 static routes, 12,000 ARP entries, and 12,000 IPv4 routes. Layer 2 capabilities include LACP link aggregation, STP/RSTP redundancy, jumbo frame support, DSCP QoS prioritization, IGMP snooping and querier, LLDP-MED, voice VLAN, and loop protection for robust AV and IT performance.
Professional Construction and Environmental Durability
Housed in a robust SGCC steel 1U rack-mountable enclosure, the switch is built for professional installations and operates reliably in temperatures from -5 to 40°C with 10 to 90% non-condensing humidity tolerance. Advanced ±30kV ESD/EMP protection (air and contact) ensures long-term reliability in demanding environments. The integrated cooling system maintains optimal performance under load.
UniFi Cloud Management and Seamless Integration
Managed via the intuitive UniFi Network Controller software, the USW-Pro-XG-10-PoE integrates seamlessly with the entire UniFi ecosystem including gateways, access points, cameras, and door access systems. Centralized cloud-based or on-premise management provides real-time monitoring, traffic analytics, and simple configuration across your entire network infrastructure.
Ideal for Professional Applications
- Enterprise network aggregation and high-speed access layer deployments
- Professional AV installations requiring multi-gigabit bandwidth and high-power PoE
- Data centers and server rooms needing 10GbE copper connectivity
- IP security camera systems with high-resolution PTZ cameras
- Advanced home labs and workstation clusters for content creation and development
- Wi-Fi 7 and Wi-Fi 6E access point deployments with high backhaul requirements
What's in the Box
- USW-Pro-XG-10-PoE Switch
- Rack mount brackets
- Power cord
- Quick start guide
Full Specifications
Port Layout and Performance
| 10GbE RJ45 Ports |
10 (All PoE+++) (10G/5G/2.5G/1G/100M) |
| 10G SFP+ Ports |
2 (10G/1G) |
| Max PoE Output per Port |
Up to 90W (PoE+++) |
| Total PoE Availability |
400W |
| Switching Capacity |
240 Gbps |
| Total Non-Blocking Throughput |
120 Gbps |
| Forwarding Rate |
179 Mpps |
Network Features
| Layer 3 Support |
Yes |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
32,000 |
| ARP Entries |
12,000 |
| IPv4 Routes |
12,000 |
| IPv4 Static Routes |
256 |
| Packet Buffer Size |
2 MB |
| IPv4 Access Lists |
128 |
| MAC Access Lists |
128 |
Power and Physical
| Power Consumption |
65W (excluding PoE output)
520W (including PoE output) |
| Power Method |
(1) Universal input, 100-240V AC, 50/60 Hz
(1) USP RPS DC input |
| Power Supply |
AC/DC, internal, 550W |
| Form Factor |
Rack mount (1U) |
| Dimensions |
442.4 × 285 × 44 mm (17.4 × 11.2 × 1.7") |
| Weight (without brackets) |
4.6 kg (10.14 lb) |
| Weight (with brackets) |
4.7 kg (10.36 lb) |
| Enclosure Material |
SGCC steel |
Environmental and Certifications
| Operating Temperature |
-5 to 40°C (23 to 104°F) |
| Operating Humidity |
10 to 90% non-condensing |
| ESD/EMP Protection |
±30kV air, ±30kV contact |
| Certifications |
CE, FCC, IC |
| NDAA Compliant |
Yes |
Management and Features
| Touchscreen Display |
1.3" LCD with AR management |
| Etherlighting |
Yes (Ethernet and SFP+) |
| DC Power Backup |
Ready (requires UniFi SmartPower RPS, sold separately) |
| Management Software |
UniFi Network Controller (Version 9.1.120 and later) |
Specifications are sourced from the manufacturer product page and may be updated.
