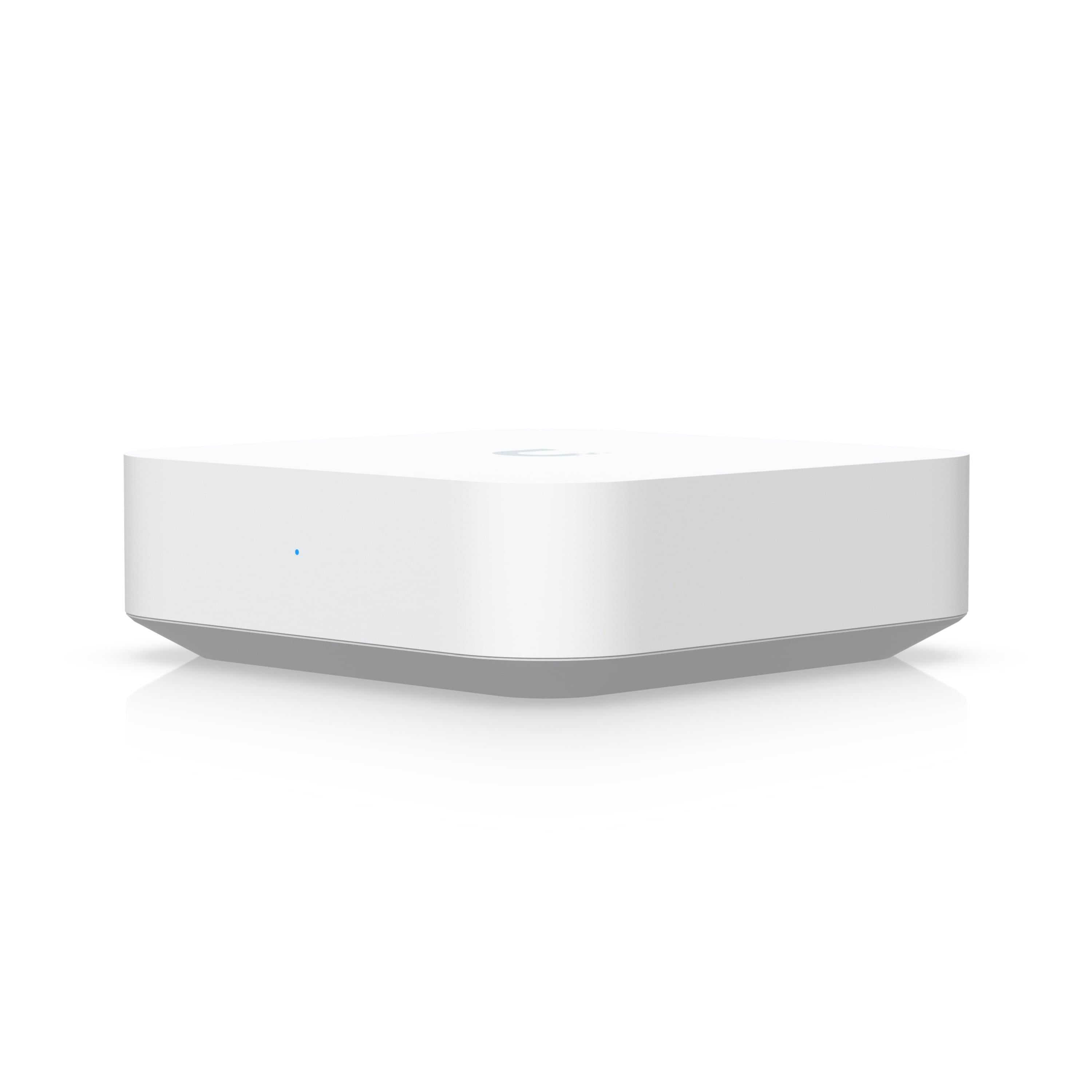

Ubiquiti UXG-Lite UniFi Gateway Lite with Advanced Routing & Security
The Ubiquiti UXG-Lite UniFi Gateway Lite is a compact and powerful network gateway designed to deliver advanced routing and security features for small to medium-sized networks. Measuring just 98 × 98 × 30 mm, this fanless gateway packs enterprise-grade capabilities into an ultra-compact footprint, making it ideal for home offices, small businesses, and remote work environments. With up to 10x the routing performance of the legacy USG when IPS/IDS, QoS, and Smart Queues are enabled, the UXG-Lite provides reliable, high-speed connectivity and comprehensive network protection.
Why You'll Love the UXG-Lite
-
Up to 10x Faster Routing Performance: Compared to the USG, with IPS/IDS, QoS, and Smart Queues enabled for superior network efficiency
-
Advanced Security Suite: Includes stateful firewall, application-aware Layer 7 firewall, intrusion prevention (IPS/IDS), content filtering, ad blocking, and DPI traffic identification
-
Dual-Core ARM Processor: Powered by a 1 GHz ARM Cortex-A53 dual-core CPU with 1 GB DDR3L memory for efficient performance
-
Compact & Silent Design: Fanless operation with a polycarbonate enclosure, weighing just 320 g (11.3 oz)
-
USB-C Powered: Simple setup with included USB-C adapter (5V/3A, max 3.83W power consumption)
-
VPN & SD-WAN Support: Built-in WireGuard, L2TP, and OpenVPN server capabilities for secure remote access and license-free SD-WAN
Enterprise-Grade Security for Small Networks
The UXG-Lite delivers next-generation security features typically found in enterprise-class equipment. The application-aware firewall provides intelligent traffic filtering based on application type, while signature-based IPS/IDS threat detection actively monitors and prevents network intrusions. Additional features include content filtering, country and domain-based blocking, ad blocking, and VLAN/subnet-based traffic segmentation for enhanced network control and isolation.
Powerful Routing & Quality of Service
Optimise your network performance with WiFi QoS for UniFi APs, application-based QoS, and device type identification. The UXG-Lite supports LTE Backup failover for continuous connectivity, along with internet quality and outage reporting. Advanced networking capabilities include license-free SD-WAN deployment, making it an excellent choice for distributed or multi-site networks.
Seamless UniFi Ecosystem Integration
Managed via the UniFi Network application version 8.0.7 and later, the UXG-Lite integrates seamlessly with CloudKey, Official UniFi Hosting, or a UniFi Network Server. This allows for centralised management of your entire UniFi ecosystem, including switches, access points, cameras, and door access systems. The intuitive interface provides real-time monitoring, traffic analytics, and easy configuration of advanced features.
Connectivity
-
(1) Gigabit Ethernet WAN port: RJ45 for internet connection
-
(1) Gigabit Ethernet LAN port: RJ45 for network connection (requires additional switch for multiple devices)
-
USB Type-C power port: For power adapter connection
What's in the Box
- UXG-Lite Gateway Lite
- USB-C Power Adapter (5V/3A)
- Quick Start Guide
Full Specifications
Hardware
| Processor |
Dual-core ARM Cortex-A53 at 1 GHz |
| Memory |
1 GB DDR3L |
| IDS/IPS Throughput |
1 Gbps |
Networking Interface
| WAN Port |
(1) GbE RJ45 |
| LAN Port |
(1) GbE RJ45 |
Security Features
| Stateful Firewall |
Yes |
| Application-Aware Layer 7 Firewall |
Yes |
| DPI & Traffic Identification |
Yes |
| Zone-Based Firewall |
Advanced Filtering (Regions, Domains, Apps) |
| Content Filtering |
Yes |
| Intrusion Prevention (IPS/IDS) |
Yes |
| Ad Blocking |
Yes |
Advanced Features
| VPN Support |
WireGuard, L2TP, OpenVPN |
| SD-WAN |
License-free |
| WiFi QoS |
With UniFi APs |
| LTE Backup Failover |
Yes |
| Traffic Segmentation |
VLAN/subnet-based |
Power
| Power Method |
USB Type-C (5V/3A) |
| Supported Voltage Range |
100-240V AC |
| Max Power Consumption |
3.83W |
Physical
| Dimensions |
98 × 98 × 30 mm (3.9 × 3.9 × 1.2") |
| Weight |
320 g (11.3 oz) |
| Enclosure Material |
Polycarbonate |
| Form Factor |
Compact desktop |
Environment
| Operating Temperature |
-10 to 40°C (14 to 104°F) |
| Operating Humidity |
5 to 95% noncondensing |
Management
| Management Platform |
CloudKey, Official UniFi Hosting, or UniFi Network Server |
| Required Software Version |
UniFi Network 8.0.7 and later |
Certifications
| Certifications |
CE, FCC, IC |
Specifications are sourced from the manufacturer product page and may be updated.
