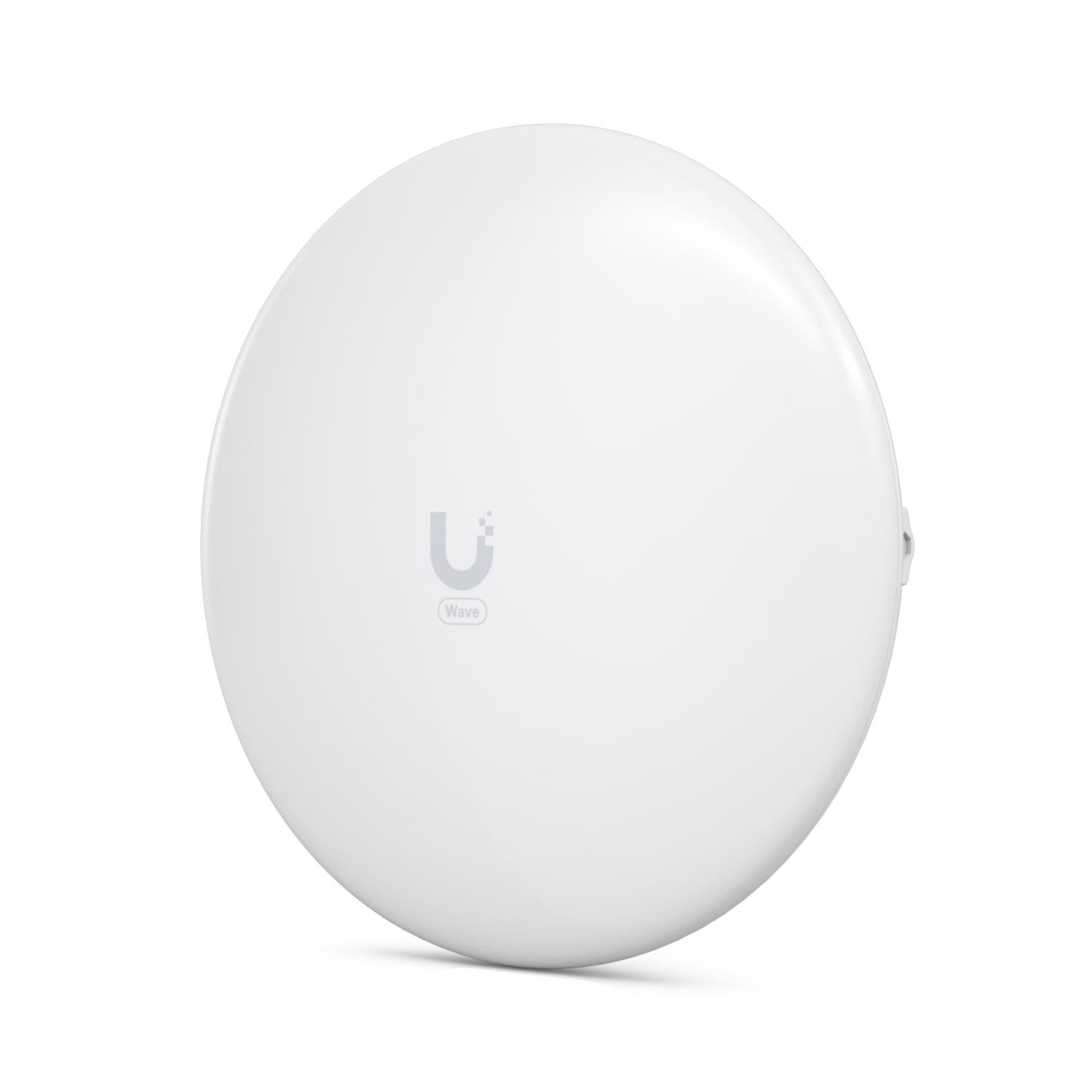

Ubiquiti Wave Nano 60 GHz Wireless Point-to-Multipoint Station
The Ubiquiti UISP Wave Nano is a high-performance 60 GHz Point-to-Multipoint (PtMP) wireless station designed for robust outdoor network connectivity. Powered by advanced Wave Technology, it delivers 2 Gbps total throughput (1 Gbps duplex) and features a 5 GHz backup radio with 800+ Mbps for weather-resilient connectivity. Perfect for ISPs, WISPs, and enterprise deployments requiring reliable long-range wireless links up to 5 km.
Why You'll Love the Wave Nano
-
High-Speed 60 GHz Connectivity: 2 Gbps total throughput (1 Gbps duplex) for demanding data applications
-
Weather-Resilient Backup Radio: 5 GHz 802.11ax (Wi-Fi 6) radio delivers 800+ Mbps when 60 GHz encounters interference
-
Extended Range: Up to 5 km link range with Wave AP, 4 km with Wave AP Micro
-
Bluetooth Setup: Easy installation and configuration via UISP Mobile app with integrated Bluetooth and GPS
-
Rugged Outdoor Design: IPX6 weatherproof rating, operates -40° to 60°C (-40° to 140°F)
-
Versatile Deployment: Supports PtMP station mode and PtP mode (firmware 3.2.0+)
Cutting-Edge Wave Technology
The Wave Nano leverages Ubiquiti's proprietary Wave Technology to deliver exceptional performance in the low-interference 60 GHz spectrum. With a 41 dBi antenna gain at 60 GHz and a 19 dBi backup antenna at 5 GHz, this compact spherical device provides enterprise-grade wireless connectivity for challenging outdoor deployments. The dual-core ARM Cortex-A53 processor at 1 GHz ensures smooth operation and efficient traffic management.
Simple Management & Deployment
Installation is streamlined with integrated GPS and Bluetooth for easy alignment and setup through the UISP Mobile app. The device supports centralized management via the UISP platform, allowing ISPs to manage networks, monitor performance, configure clients, and handle billing from a single interface. Advanced features include Wave AI, traffic shaping with burst support, ping watchdog, SNMP, and comprehensive diagnostic tools.
Universal Connectivity
-
1 × Gigabit Ethernet RJ45 port for high-speed wired backhaul
-
Passive PoE support: 44-54V DC (4-pair or 2-pair) and 22-27V DC (4-pair)
- Included 48V DC, 0.65A Gigabit PoE adapter
- Compatible with UISP Router or UISP Switch for power
Built for Extreme Environments
Constructed from aluminum alloy and UV-stabilized polycarbonate, the Wave Nano is engineered to withstand harsh outdoor conditions. The IPX6 weatherproof rating protects against heavy rain and water jets, while the robust design handles wind loading up to 127 N at 200 km/h (28.6 lbf at 125 mph). The versatile pole mount accommodates diameters from 25 to 63.5 mm (1 to 2.5 inches).
What's in the Box
- Wave Nano 60 GHz PtMP station
- Pole mount with hardware
- 48V DC, 0.65A Gigabit PoE adapter
- Power cord
- Installation guide
Full Specifications
Wireless
| Operating Frequency |
60 GHz: 57-71 GHz 5 GHz: 5.15-5.785 GHz |
| Antenna Gain |
60 GHz: 41 dBi 5 GHz: 19 dBi |
| Polarization |
Dual Linear |
| Max Throughput |
60 GHz: 2 Gbps (1 Gbps duplex) 5 GHz backup: 800+ Mbps |
| Max Link Range |
Wave AP: 5 km (3.1 mi) Wave AP Micro: 4 km (2.5 mi) |
| Standards |
60 GHz: 802.11ad 5 GHz: 802.11n/ax (Wi-Fi 6) |
Hardware
| Processor |
Dual-core ARM Cortex-A53 at 1 GHz |
| Memory |
512 MB DDR3L |
| Networking Interface |
(1) Gigabit Ethernet RJ45 port |
| GPS |
Integrated GPS |
| Bluetooth |
Integrated for mobile app setup |
| LEDs |
Power, Ethernet, GPS, Link |
| Button |
Factory reset |
Power
| Max Power Consumption |
18-20W |
| Power Method |
Passive PoE 4-pairs (1,2+; 3,6-)(4,5+; 7,8-) Passive PoE 2-pairs (4,5+; 7,8-) for 44-54V DC only |
| Supported Voltage Range |
44-54V DC 22-27V DC (4-pair only) |
| Power Supply |
48V DC, 0.65A Gigabit PoE adapter (included) |
Mechanical
| Dimensions |
Ø256.5 × 113.5 mm (Ø10.1 × 4.5") |
| Weight |
Without mount: 932 g (2.1 lb) With mount: 1.2 kg (2.6 lb) |
| Enclosure Material |
Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material |
Aluminum alloy, UV-stabilized polycarbonate |
| Mounting |
Pole mount |
| Pole Mount Diameter |
25 to 63.5 mm (1 to 2.5") |
| Wind Loading |
127 N at 200 km/h (28.6 lbf at 125 mph) |
| Weatherproofing |
IPX6 |
Environment
| Operating Temperature |
-40 to 60°C (-40 to 140°F) |
| Operating Humidity |
5 to 95% noncondensing |
| Certifications |
FCC, IC, CE |
| NDAA Compliant |
Yes |
Software
| Operating System |
airOS |
| Operating Modes |
PtMP station, PtP (firmware 3.2.0+) |
| Management |
UISP platform, Web UI, Bluetooth via UISP Mobile app |
| Network Modes |
Bridge/Router |
| Features |
Wave Technology, Wave AI, Discovery Protocol, Traffic Shaping with Burst Support |
| Services |
UISP, Ping Watchdog, NTP Client, SNMP |
| Tools |
Cable Test, Antenna Alignment, Discovery Utility, Ping, Trace Route, Speed Test |
Specifications are sourced from the manufacturer product page and may be updated.
