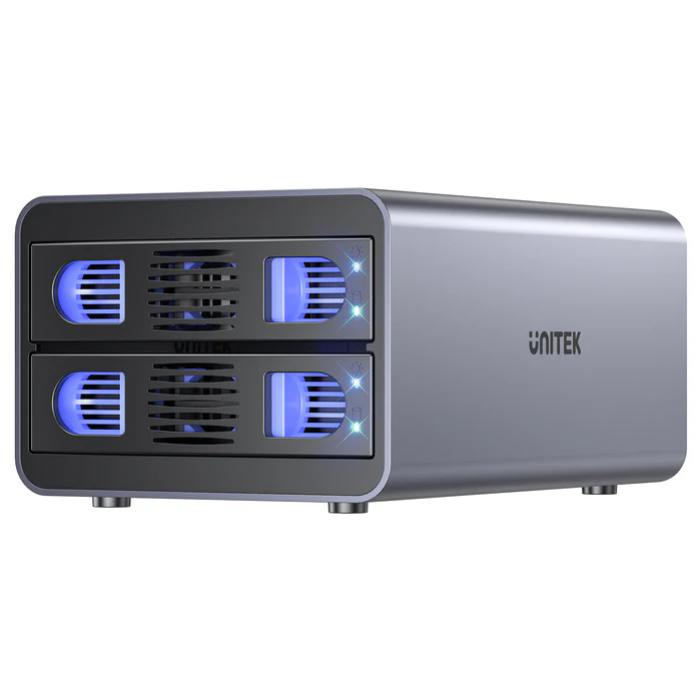

Unitek S1308C01 2-Bay USB-C RAID Hard Drive Enclosure 10Gbps 40TB
The Unitek S1308C01 2-Bay SATA Enclosure is the ultimate storage solution for professionals and home users who demand reliability, speed, and flexibility. With support for up to 40TB of storage capacity and 10Gbps USB 3.2 Gen 2 transfer speeds, this dual-bay enclosure enables lightning-fast data transfers and robust RAID configurations to protect and optimise your valuable data. Whether you're backing up critical files, managing large media libraries, or running a home server, the Unitek S1308C01 delivers professional-grade performance in a compact, well-cooled aluminium chassis.
Key Features
-
Massive 40TB Capacity: Supports two 2.5-inch or 3.5-inch SATA HDDs or SSDs (up to 20TB each)
-
10Gbps USB-C Interface: USB 3.2 Gen 2 for blazing-fast file transfers and backups
-
4 RAID Modes: RAID 0 (performance), RAID 1 (mirroring), JBOD (combined), and PM (normal)
-
Offline Clone Function: Duplicate drives without a computer for easy backups
-
Active Cooling: Built-in fan and aluminium alloy housing for excellent heat dissipation
-
Triple Protection: Overcurrent, short-circuit, and overvoltage protection for data safety
Flexible RAID Configuration for Every Workflow
The S1308C01 supports four RAID modes to suit your specific needs. Choose RAID 0 to combine both drives for maximum performance and capacity, or select RAID 1 to mirror your data across both drives for complete redundancy and protection against drive failure. JBOD mode merges the drives into one large volume, while PM (Pass-Through Mode) allows each drive to operate independently. Tool-free installation for 3.5-inch drives and plug-and-play operation make setup effortless.
Lightning-Fast 10Gbps Transfer Speeds
Equipped with a USB-C 10Gbps interface, the Unitek S1308C01 delivers data transfer rates up to 10Gbps, ensuring you can move large files, HD video, and photo libraries in seconds. The enclosure is backward compatible with USB 3.0 and USB 2.0, and supports UASP for optimised read and write performance. An included 1.2m USB-C to USB-C cable ensures seamless connectivity with modern laptops, desktops, and workstations.
Superior Cooling and Durability
Designed for continuous operation, the S1308C01 features a powerful built-in cooling fan and a premium aluminium alloy housing that work together to provide excellent heat dissipation and maintain optimal operating temperatures. Anti-slip silicone pads keep the enclosure stable on your desk, while LED indicators provide clear status feedback: blue for power on, flashing green during data transfer.
Advanced Power Protection and Energy Efficiency
The included 12V/4A power adapter delivers stable, reliable power with triple protection features: overcurrent, short-circuit, and overvoltage protection. These safeguards help prevent disruptions and reduce the risk of data loss. The enclosure also features an auto sleep mode that activates after 30 minutes of inactivity to conserve energy and extend the life of your drives.
Universal Compatibility
The Unitek S1308C01 is fully compatible with Windows, macOS, and Linux operating systems. It supports both 2.5-inch and 3.5-inch SATA I/II/III hard drives and SSDs, making it ideal for a wide range of storage devices. No drivers are required for plug-and-play convenience.
What's in the Box
- Unitek S1308C01 2-Bay External Hard Drive Enclosure
- USB-C to USB-C 1.2m 10Gbps cable
- 12V/4A power adapter (Australian plug)
- HDD tray buckle
- Screwdriver kit
- User manual
Full Specifications
Storage
| Capacity |
Up to 40TB (2 × 20TB) |
| Drive Compatibility |
2.5-inch and 3.5-inch SATA I/II/III HDD/SSD |
| Number of Bays |
2 |
| RAID Support |
RAID 0, RAID 1, JBOD, PM (Pass-Through Mode) |
Connectivity & Performance
| Interface |
USB 3.2 Gen 2 Type-C (10Gbps) |
| Transfer Speed |
Up to 10Gbps |
| Cable Included |
1.2m USB-C to USB-C cable |
| Compatibility |
Windows, macOS, Linux |
Power & Protection
| Power Supply |
12V DC, 4A (adapter included) |
| Protection Features |
Overcurrent, short-circuit, overvoltage |
| Auto Sleep Mode |
After 30 minutes of inactivity |
Physical Specifications
| Dimensions |
196 × 126 × 92 mm |
| Weight |
0.862 kg |
| Material |
Aluminium alloy |
| Colour |
Space Grey |
| Cooling |
Built-in fan |
Additional Features
| LED Indicators |
Blue (power on), Green (data transfer) |
| Installation |
Tool-free for 3.5-inch drives |
| Offline Clone |
Yes (1-to-3 offline cloning) |
| Anti-Slip Pads |
Yes |
Warranty
Specifications are sourced from the manufacturer product page and may be updated.
