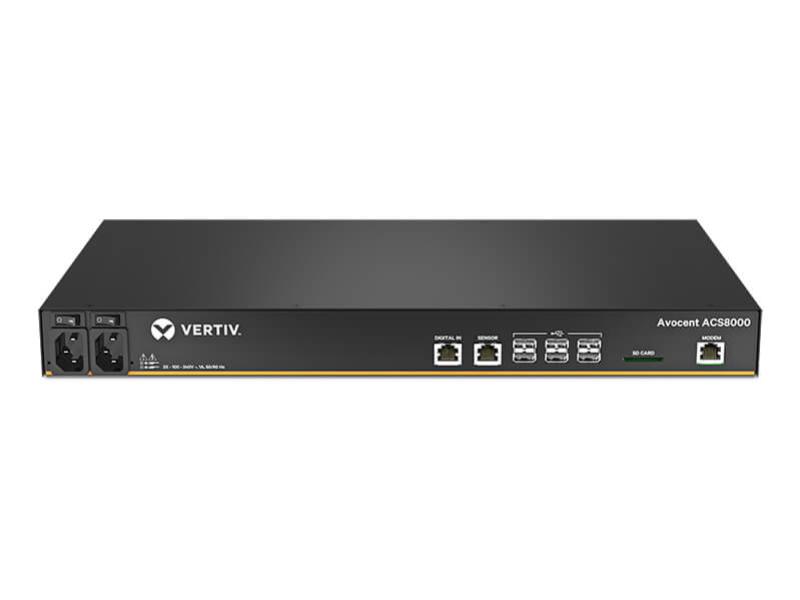

Vertiv Avocent ACS 8000 48-Port Serial Console Server with Dual AC Power and Analog Modem
The Vertiv Avocent ACS 8000 is an advanced 48-port serial console server designed for secure in-band and out-of-band network management of IT infrastructure. This rack-mountable unit features dual AC power supplies for redundancy, a built-in v.92 analog modem, and delivers comprehensive remote access to critical IT equipment across enterprise data centers, edge locations, and colocation facilities.
Key Features
-
48 RS-232 Serial Ports: Connect and manage up to 48 devices including servers, routers, switches, firewalls, UPS systems, and PDUs
-
Dual Gigabit Ethernet Ports: Network redundancy with automatic failover ensures continuous connectivity
-
Built-in Analog Modem: v.92 modem provides out-of-band access for troubleshooting when primary network is unavailable
-
Dual AC Power Supplies: Redundant internal power for maximum uptime and reliability
-
8 USB 2.0 Ports: Support external devices, IoT products, and IT equipment management
-
Environmental Sensor Port: Connect temperature, humidity, differential pressure, leak, and door pin sensors (up to 8 can be daisy chained)
Advanced Management Capabilities
The ACS 8000 features a dual-core ARM Cortex-A9 processor with 1GB DDR3L RAM and 16GB flash memory, providing powerful automation and scripting capabilities. The console server supports Zero Touch Provisioning (ZTP) for fast, automated configuration, and includes automated discovery tools that identify connected Vertiv and third-party equipment including servers, switches, and power devices.
Security and Compliance
Built with security at its core, the ACS 8000 includes FIPS 140-2 validated cryptographic module, IPsec VPN, customizable ACLs, and multiple access levels to ensure compliance with data center security policies. The system acts as a single point of entry for all connected devices, limiting access points and providing comprehensive event logging and notifications.
Connectivity and Network Failover
The console server supports multiple connection methods for maximum reliability:
-
Dual Gigabit Ethernet (10/100/1000Base-T): Primary network connectivity with automatic failover
-
Dual Gigabit Fiber SFP Ports (1000Base-X): Fiber connectivity options
-
v.92 Analog Modem: Out-of-band dial-up access with secure dial-back capability
-
RS-232, RS-485, RS-422 Serial Protocols: Auto-sensing pin-out with automatic Cyclades and Cisco conversions
-
IPv6 and IPv4 Support: Ready for modern network deployments
Integration and Third-Party Support
The ACS 8000 offers expanded support for Rack PDUs from Vertiv Geist, ServerTech, APC, Raritan, and Eaton, along with Vertiv GXT4 and GXT5 UPS systems. Integration with Avocent DSView software enables centralized management across multiple console servers and locations.
Ideal Applications
- Enterprise data centers requiring secure out-of-band access
- Cloud and colocation facilities with strict security requirements
- Financial institutions, healthcare, government, and military installations
- Remote edge locations needing automated failover capabilities
- Network equipment manufacturers requiring device testing and qualification
- Retail chains and educational institutions with distributed IT infrastructure
What's in the Box
- Vertiv Avocent ACS 8000 48-Port Console Server
- Dual internal AC power supplies
- Built-in v.92 analog modem
- Rack mounting hardware
- Documentation and quick start guide
Full Specifications
General
| Device Type |
Console Server |
| Form Factor |
Rack-mountable 1U |
| Model Number |
ACS8048MDAC-400 |
| TAA Compliant |
Yes |
Processor and Memory
| Processor |
Dual-core ARM Cortex-A9 MPCore |
| RAM |
1GB DDR3L SDRAM |
| Flash Memory |
16GB |
| Operating System |
Linux (embedded) |
Interfaces and Ports
| Serial Ports |
48 × RJ-45 (RS-232/RS-485/RS-422, auto-sensing) |
| Network Ports |
2 × Gigabit Ethernet (RJ-45) |
| Fiber Ports |
2 × Gigabit SFP |
| USB Ports |
8 × USB 2.0 Type-A |
| Environmental Sensor Port |
1 × RJ-45 (supports up to 8 daisy-chained sensors) |
| Digital I/O Ports |
4 × Digital input (smoke, leak, pressure, dry contact sensors) |
| Local Console Port |
Yes (CLI and Linux Shell access) |
| SD Card Slot |
1 × Full-size SD card slot |
Network and Communication
| Ethernet Technology |
Gigabit Ethernet |
| Network Standards |
10/100/1000Base-T, 1000Base-X |
| Protocols |
IPv4, IPv6 |
| Wireless LAN |
No |
| Built-in Modem |
v.92 analog modem |
| Network Failover |
Automatic (Ethernet to Ethernet or modem) |
| Routing |
Multiple routing tables supported |
Security and Management
| Cryptographic Module |
FIPS 140-2 validated (certificate 1747) |
| VPN Support |
IPsec VPN |
| Access Control |
Customizable ACLs, multiple access levels |
| Authentication |
RADIUS, TACACS+, LDAP, Active Directory |
| Zero Touch Provisioning |
Yes (ZTP) |
| Auto-Discovery |
Yes (servers, routers, switches, power devices) |
| Management Software |
Web GUI, CLI, Avocent DSView integration |
| Event Logging |
Comprehensive console event logging and notification |
Power
| Power Supply |
Dual internal AC power supplies |
| Power Redundancy |
Yes |
| Input Voltage |
AC 100-240V, 50/60Hz (auto-sensing) |
Physical Characteristics
| Dimensions (W × D × H) |
17.3" × 9.5" × 1.8" (439mm × 241mm × 46mm) |
| Weight |
7.2 lb (3.27 kg) |
| Rack Height |
1U |
| Color |
Black |
Environmental
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-4°F to 158°F (-20°C to 70°C) |
| Humidity |
10% to 90% RH, non-condensing |
Compliance and Certifications
| Safety |
UL (USA), cUL (Canada), EN-60950 (EU), CB |
| EMC |
FCC Class A, CE Class A (EU), VCCI (Japan), ICES-003 (Canada) |
| Regional |
RCM (Australia), Customs Union (CU), KCC (Korea) |
| TAA Compliance |
Yes |
| Country of Origin |
Mexico |
Warranty and Support
| Warranty |
2-Year Full Coverage Factory Warranty |
| Extended Warranty |
Available (optional) |
Specifications are sourced from the manufacturer product page and may be updated.
