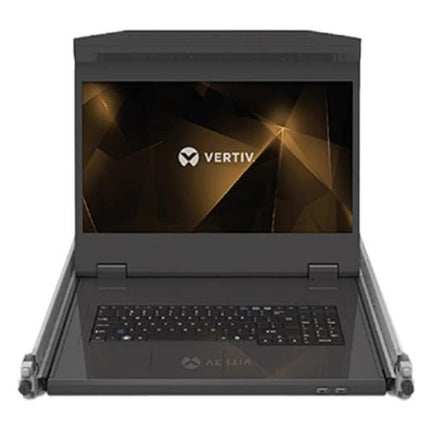

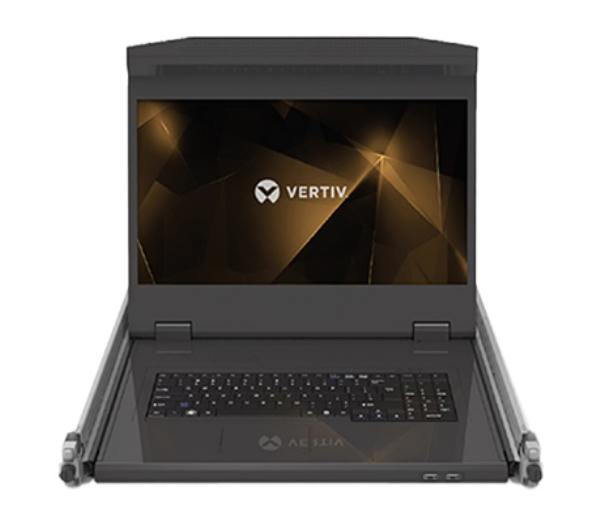

Vertiv Avocent LRA185KMM 18.5" Rackmount LCD Console with USB Keyboard
The Vertiv Avocent Local Rack Access (LRA) Console is the ideal data center access point, combining simplicity, efficiency, and ease of use in a compact 1U rackmountable design. When connected to a KVM switch, the LRA console provides quick access to multiple servers, making software upgrades, troubleshooting, and system monitoring more convenient and less time-consuming, protecting uptime and staff time. This professional-grade console tray eliminates the clutter of crash carts, space-consuming monitors, and keyboards, making it perfect for server rooms, network operations centers, and IT infrastructure management.
Key Features
-
18.5" LED LCD Display: Widescreen TFT LCD panel with 16:9 aspect ratio delivers crisp resolutions up to 1366 × 768 pixels at 60Hz
-
Full Desktop Keyboard: Integrated USB keyboard with number pad, touchpad, and two buttons for complete control
-
Dual USB 2.0 Pass-Through Ports: Fast data transmission between console and connected USB 2.0 devices
-
Space-Saving 1U Design: Includes room for KVM installation in the same tray for organised operation
-
Broad Compatibility: Standard USB and VGA interfaces work with servers, network switches, and IT equipment
-
Energy Efficient: Minimal power draw during operation (17W nominal) and standby (0.5W)
Professional Rack Console for Data Centers
The Vertiv Avocent LRA Console is a complete entry point to local servers when you need immediate access. The rackmount design fits standard 19" EIA racks and accommodates rack post distances from 610mm to 889mm (24" to 35"). The console functions as both an SVGA monitor and keyboard tray in one streamlined unit, providing a professional workstation experience without consuming valuable data center real estate.
Easy Installation and Operation
Designed for quick deployment, the LRA185KMM includes slide rails that accommodate a Vertiv-branded KVM appliance in the same 1RU. The console features an intuitive on-screen display menu and easy-access control buttons on the front of the monitor for adjusting image characteristics. Compatible with all Vertiv Avocent data center KVM switches, this console tray integrates seamlessly with existing infrastructure.
Universal Connectivity
-
Video Input: VGA interface for broad server compatibility
-
Keyboard/Mouse: USB connection
-
USB Ports: Two USB 2.0 compliant pass-through ports
-
Power: IEC C-14 connection to PDU, auto-ranging 90-264 VAC
What's in the Box
- Vertiv Avocent LRA185KMM 18.5" LED LCD Console with integrated keyboard and touchpad
- Slide rail kit with mounting hardware
- Universal jumper power cord (IEC-14 to PDU)
- Video cable bundle
- User manual and safety/compliance documentation
- Miscellaneous hardware kit (cage nuts, clip nuts, screws, cable straps)
- Customer support and warranty card
Full Specifications
Display
| Display Type |
18.5" TFT LCD Monitor, 16:9 Aspect Ratio |
| Resolution |
1366 × 768 @60Hz (Standard) |
| Display Active Area |
409.8mm × 230.4mm |
| Scaling |
Full Screen, Aspect |
| Video Input |
VGA |
Keyboard and Input
| Keyboard |
Full size keyboard with number pad |
| Pointing Device |
Integrated touchpad with two buttons |
| Keyboard Interface |
USB |
| USB Ports |
Two USB 2.0 compliant pass-through ports |
Power
| Power Input |
90-264 VAC (Auto-ranging) |
| Maximum Power |
20 Watts |
| Nominal Power |
17 Watts |
| Standby Power |
0.5 Watts |
| Power Connection |
IEC C-14 to PDU |
Physical Dimensions
| Rack Height |
1U (1.75 inches / 44.45mm) |
| Unit Dimensions (W × D × H) |
19" × 19" × 1.75" (483mm × 483mm × 44.45mm) |
| Unit Weight |
19.4 lbs (8.8 kg) |
| Shipping Dimensions (W × D × H) |
29.5" × 23" × 8.5" (749mm × 584mm × 216mm) |
| Shipping Weight |
34.2 lbs (15.5 kg) |
| Rack Post Distance (Outside-to-Outside) |
Console Only: 610mm-889mm (24"-35")
With KVM: 686mm-889mm (27"-35") |
Environmental
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Operating Humidity |
5% to 80% (non-condensing) |
| Storage Humidity |
5% to 90% (non-condensing) |
| Operating Altitude |
0 to 16,400 feet (0 to 5,000m) |
| Storage Altitude |
0 to 40,000 feet (0 to 12,200m) |
Certifications
| Certifications |
UL, CE, BSMI, cUL, IC, UKCA, NOM, FCC Class A |
| Warranty |
2 Years |
Specifications are sourced from the manufacturer product page and may be updated.
