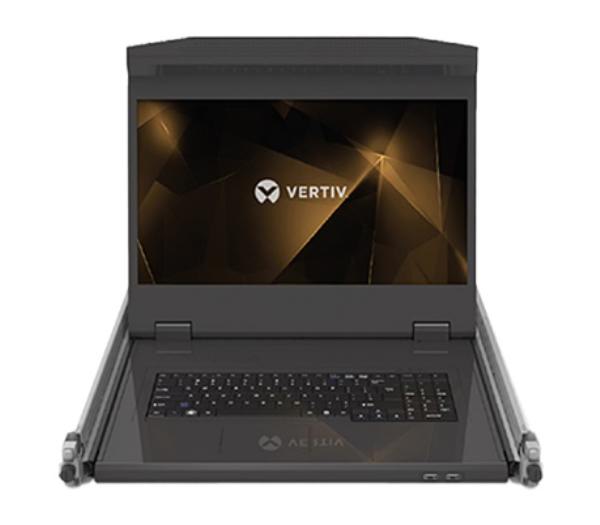

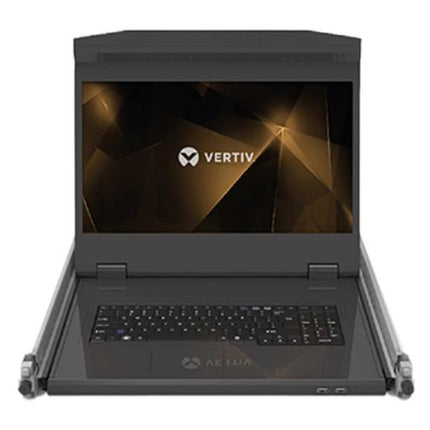

Vertiv CLRA19KMM16D 18.5" LCD 1U Rack Console with 16-Port IP-KVM Switch
The Vertiv CLRA19KMM16D is a professional local rack access console that combines an 18.5-inch LED LCD display, full desktop-style keyboard with touchpad, and a pre-integrated 16-port KVM over IP switch in a single 1U rackmount tray. Designed for data centres, server rooms, and network operations centres, this complete solution provides immediate local and remote access to multiple servers, making software upgrades, troubleshooting, and system monitoring faster and more convenient while eliminating the clutter of crash carts and external monitors.
Why Choose the Vertiv CLRA19KMM16D?
-
All-in-One Solution: Includes 18.5" widescreen LCD, keyboard with touchpad, 16-port IP-KVM switch, and 16 MPUIQ-VMCHS server interface modules - everything you need for complete at-the-rack access
-
Space-Saving Design: The pre-integrated 16-port KVM switch fits seamlessly into the same 1U space as the LCD tray, maximising valuable rack real estate
-
1920 × 1080 Full HD Display: 18.5-inch LED LCD panel with 16:9 aspect ratio delivers crystal-clear visuals for efficient server management
-
Dual Access: Allows one local user and one remote user to simultaneously access and control up to sixteen connected servers with virtual media support
-
Universal Compatibility: Standard USB and VGA interfaces are compatible with a vast range of servers and network devices; works with all Vertiv Avocent data centre KVM switches
-
Energy Efficient: Low power consumption during both operation and standby saves energy costs and reduces environmental impact
Professional 18.5" Full HD Display
The console features a widescreen 18.5-inch LED LCD panel with a 16:9 aspect ratio that supports resolutions up to 1920 × 1080 at both full screen and aspect ratio modes. The bright, clear display ensures excellent visibility for monitoring server status, running diagnostics, and managing IT infrastructure directly at the rack.
Integrated 16-Port KVM Over IP Switch
The CLRA19KMM16D comes complete with a factory-integrated 16-port KVM over IP switch and 16 MPUIQ-VMCHS server interface modules for VGA video, USB keyboard and mouse. These modules support virtual media, CAC (Common Access Card), and USB 2.0 connectivity. The IP-based KVM enables both local at-the-rack access and remote access over LAN, WAN, or Internet, providing maximum flexibility for IT staff.
Full Desktop-Style Keyboard & Dual USB Pass-Through
The console includes a full 103-key keyboard with number pad and integrated touchpad for complete mouse control without external peripherals. Two USB 2.0 pass-through ports provide fast data transmission for USB media devices, allowing quick file transfers and firmware updates directly at the rack.
Tool-Less Installation & Secure Mounting
The CLRA19KMM16D features tool-less slide rails for quick and easy installation into standard 19-inch racks. The console tray locks securely when stowed, and a detent lock engages automatically to prevent accidental opening during operation. The rail system supports round hole, square hole, and threaded rack posts with adjustable mounting distances.
Ideal for Data Centres & IT Environments
Perfect for data centres, server rooms, NOCs, and computer closets, the Vertiv CLRA console provides field-proven access within the data centre, allowing operators immediate access to 16 servers without the need for crash carts or other cumbersome equipment. The compact 1U design preserves valuable rack space while delivering complete control and monitoring capabilities.
Universal Connectivity
- 16 × MPUIQ-VMCHS server interface modules (VGA/USB with virtual media, CAC, and USB 2.0 support)
- 2 × USB 2.0 pass-through ports on console
- Standard USB and VGA interfaces for broad server compatibility
- RJ-45 network connectivity for remote IP-KVM access
- Compatible with all Vertiv Avocent data centre KVM switches
What's in the Box
- 1 × Vertiv CLRA19KMM16D LCD console tray with integrated keyboard and touchpad
- 1 × Pre-integrated 16-port KVM over IP switch
- 16 × MPUIQ-VMCHS server interface modules (VGA/USB with virtual media support)
- 1 × RJ-45 to DB9 DCE female adapter
- 1 × RJ-45 male to male network cable
- 1 × KVM mounting bracket set
- 1 × Console rack-mounting rail set
- 1 × Power cord with C14 to C13 jumper
- User documentation
Full Specifications
Display
| Screen Size |
18.5 inches |
| Display Type |
LED LCD, TFT active-matrix, widescreen |
| Aspect Ratio |
16:9 |
| Resolution |
Up to 1920 × 1080 (Full HD) |
KVM Switch
| Number of Ports |
16-port IP-KVM switch (pre-integrated) |
| KVM Type |
KVM over IP with local and remote access |
| Concurrent Users |
1 local user + 1 remote user simultaneously |
| Server Interface Modules |
16 × MPUIQ-VMCHS (VGA/USB with virtual media, CAC, USB 2.0) |
| Supported Video |
VGA |
| Virtual Media Support |
Yes |
| CAC Support |
Yes (Common Access Card) |
Input Devices
| Keyboard |
Full 103-key desktop-style with number pad |
| Pointing Device |
Integrated touchpad |
| Keyboard Languages |
Multiple languages available (International English, UK English, French, German) |
Connectivity
| Console Interfaces |
USB, VGA |
| USB Pass-Through Ports |
2 × USB 2.0 |
| Network |
RJ-45 Ethernet for IP-KVM remote access |
| KVM Compatibility |
All Vertiv Avocent data centre KVM switches |
Physical & Mounting
| Form Factor |
1U rackmount console drawer |
| Rack Compatibility |
Standard 19-inch racks (round hole, square hole, threaded posts) |
| Mounting Rails |
Tool-less slide rails included |
| Locking Mechanism |
Detent lock engages when stowed in rack |
Environmental
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-20°C to 60°C |
| Operating Humidity |
10% to 80% RH |
| Storage Humidity |
5% to 95% RH |
| Operating Altitude |
0 m to 3000 m |
| Storage Altitude |
-15 m to 10,000 m |
Certifications
| Certifications |
UL, CE, CCC, BSMI, ICES, EAC, VCCI, KCC, FCC Class A, BIS |
| TAA Compliant |
TAA compliant version available (LRA185KMM16D-G01) |
Specifications are sourced from the manufacturer product page and may be updated.
