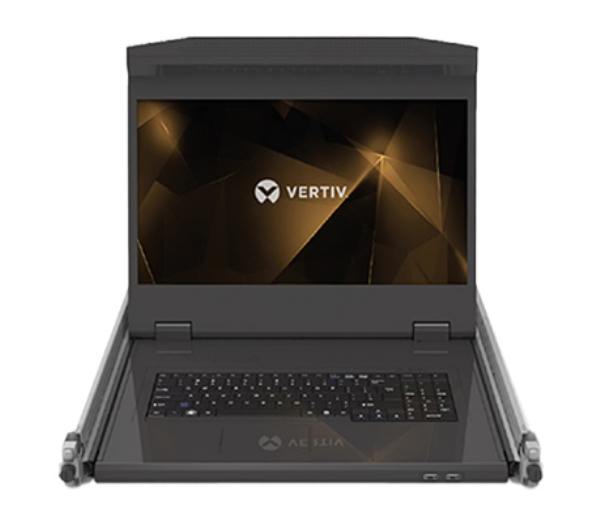

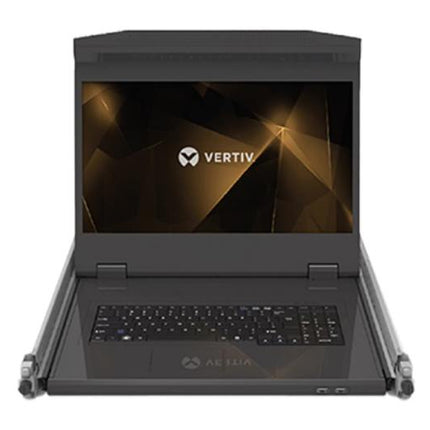

Vertiv CLRA19KMM8D 18.5" LCD Console with 8-Port IP KVM Switch
The Vertiv CLRA19KMM8D is a complete 4-in-1 rack access solution featuring an 18.5" LED LCD console, integrated 8-port IP KVM switch, full desktop-style keyboard with touchpad, and 8 server interface modules (MPUIQ-VMCHS) in a space-saving 1U form factor. Perfect for data centers, server rooms, and IT closets, this console provides simplified local and remote access to multiple servers, enabling efficient software upgrades, troubleshooting, and system monitoring without the clutter of crash carts.
Key Features
-
18.5" Widescreen LED LCD: 16:9 aspect ratio with support for resolutions up to 1920 × 1080 (Full HD) for crystal-clear display quality
-
Integrated 8-Port IP KVM Switch: Control up to 8 servers locally or remotely with IP-based access, supporting virtual media and CAC (Common Access Card) authentication
-
Space-Saving 1U Design: Fits the LCD console, keyboard, and 8-port KVM switch all in the same 1U rack space
-
Full Desktop Keyboard with Touchpad: Complete number pad and integrated touchpad for efficient server management
-
Dual USB 2.0 Pass-Through Ports: Fast data transmission between console and connected USB 2.0 devices
-
Tool-Less Installation: Next-generation slide rails allow seamless rack installation without tools
Simplified Server Management
The Vertiv CLRA console makes managing your data center more convenient and less time-consuming. When connected to a KVM switch, this console provides easy local access to multiple servers, making software upgrades, troubleshooting, and system monitoring straightforward and efficient. The intuitive OSCAR on-screen interface is accessible in multiple languages, ensuring ease of use for IT professionals worldwide.
Universal Compatibility
The CLRA19KMM8D features standard USB and VGA interfaces that are broadly compatible with servers, network devices, and appliances. It works seamlessly with all Avocent data center KVM switches, giving you flexibility to expand your setup as your infrastructure grows. Each unit includes 8 VGA/USB server interface modules (MPUIQ-VMCHS) that support virtual media and USB 2.0.
Energy Efficient and Reliable
Designed for 24/7 data center operation, the CLRA console features low power consumption during both active operation and standby modes, reducing energy costs. The detent lock securely engages when the console is stowed in the rack, and the rugged construction ensures reliable performance in demanding environments.
What's in the Box
- 1 × Vertiv CLRA19KMM8D 18.5" LCD console tray
- 1 × Integrated 8-port IP KVM switch (AV3108)
- 8 × VGA/USB server interface modules (MPUIQ-VMCHS)
- 1 × Console rack-mounting rail set
- 1 × KVM mounting bracket set
- 1 × RJ-45 to DB9 DCE female adapter
- 1 × RJ45 male to male network cable
- 1 × Power cord
Full Specifications
Display
| Screen Size |
18.5" LED LCD |
| Aspect Ratio |
16:9 widescreen |
| Maximum Resolution |
1920 × 1080 (Full HD) |
KVM Switch
| Number of Ports |
8 ports (IP-based) |
| KVM Type |
IP KVM over IP switch |
| Server Interface Modules |
8 × MPUIQ-VMCHS (VGA/USB) |
| Virtual Media |
Supported |
| CAC Support |
Yes (Common Access Card) |
Input/Output
| Keyboard |
Full desktop-style keyboard with number pad |
| Pointing Device |
Integrated touchpad |
| USB Pass-Through Ports |
2 × USB 2.0 |
| Server Interfaces |
VGA and USB |
Physical & Mounting
| Form Factor |
1U rack-mountable |
| Rack Compatibility |
Round hole, square hole, and threaded posts |
| Installation |
Tool-less slide rails |
| Locking Mechanism |
Detent lock when stowed |
Environmental & Power
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-20°C to 60°C |
| Operating Humidity |
10% to 80% (non-condensing) |
| Storage Humidity |
5% to 95% (non-condensing) |
| Operating Altitude |
0m to 3000m |
| Storage Altitude |
-15m to 10,000m |
| Power Consumption |
Low power usage during operation and standby |
Certifications & Compliance
| Certifications |
UL, CE, CCC, BSMI, ICES, EAC, VCCI, KCC, FCC Class A, BIS |
Specifications are sourced from the manufacturer product page and may be updated.
