Vertiv Geist F0144849 Basic Horizontal Rack PDU 16A 230V 1U with 12 Locking Combination C13/C19 Outlets
The Vertiv Geist F0144849 Basic Rack PDU delivers reliable power distribution for critical IT equipment in data centres, server rooms, and network cabinets. This 1U horizontal rack PDU features 16A capacity at 230V with 12 combination C13/C19 locking outlets, providing maximum flexibility for powering servers, switches, storage devices, and other rack-mounted equipment. Built with Vertiv's unique U-Lock receptacle design, this PDU ensures secure power connections and prevents accidental disconnections that could cause costly downtime.
Key Features
-

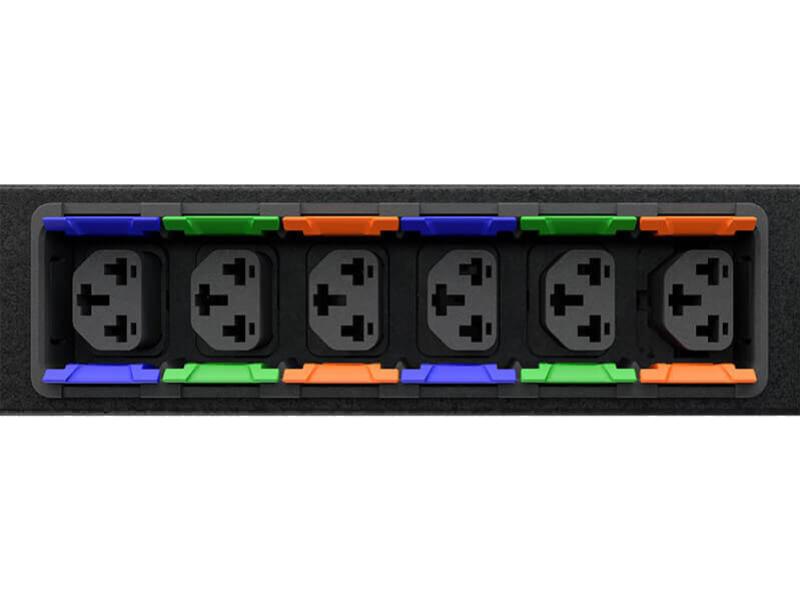

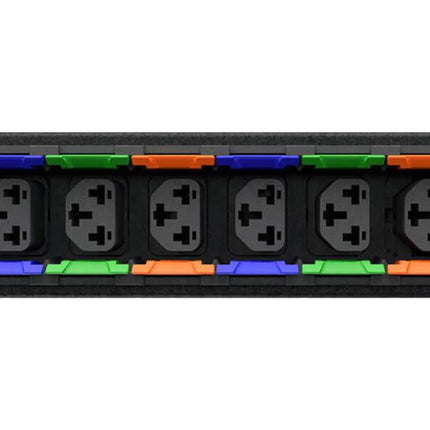

12 Combination C13/C19 Locking Outlets: The innovative 2-in-1 design accepts both IEC C14 and C20 plugs, providing maximum rack power versatility without needing multiple PDU types
-
U-Lock Receptacles: Patented locking mechanism automatically secures power cords when inserted, preventing accidental disconnections and improving power supply reliability
-
16A at 230V: Delivers reliable power capacity for demanding rack equipment in Australian and international data centres
-
Space-Saving 1U Horizontal Design: Mounts efficiently in standard 19-inch racks with included mounting brackets, maximizing valuable rack space
-
100% Factory Tested: Every unit is individually tested for reliability and functionality before shipping, ensuring dependable performance
-
Extended Warranty: Standard 3-year warranty automatically upgrades to 5 years when registered within 120 days of purchase
Reliable Power Distribution for Mission-Critical Equipment
The Vertiv Geist F0144849 Basic PDU is the entry-level solution in the Vertiv Geist Rack PDU family, ideal for organizations seeking cost-effective, reliable power distribution without monitoring capabilities. Perfect for edge computing deployments, colocation facilities, enterprise server rooms, and network closets, this PDU provides the essential power distribution needed to keep critical IT infrastructure running.
Combination C13/C19 Outlet Flexibility
The combination outlet design is a game-changer for data centre managers. Each of the 12 outlets accepts both standard C14 plugs (commonly used on servers and networking equipment) and higher-power C20 plugs (used on more power-hungry devices). This eliminates the need to plan exact outlet configurations in advance and provides flexibility as equipment changes over time.
U-Lock Technology for Maximum Uptime
Vertiv's unique U-Lock structure automatically locks power cords in place when inserted, requiring no additional action. To disconnect, simply press the U-Lock bezel on opposite sides of the outlet to release the lock. This simple but effective design prevents accidental power loss from bumped cables, maintenance activities, or vibration, helping you maintain maximum uptime for critical systems.
Simple Installation
The F0144849 supports horizontal mounting in 1U of rack space with included mounting brackets that can be installed on the front or rear of the unit. The PDU mounts securely to standard 19-inch rails with M6 floating nuts and screws. Compatible with all industry-standard racks and cabinets, installation is quick and straightforward for IT professionals.
Built for Australian Data Centres
With 230V operation at 16A, this PDU is perfectly suited for Australian power standards. Whether you're building out a new data centre, upgrading existing infrastructure, or deploying edge computing locations, the F0144849 provides the reliable power distribution needed for demanding Australian IT environments.
Quality and Warranty
Vertiv Geist promotes innovation, quality, and satisfaction in all aspects of business. This Basic Rack PDU is backed by a standard 3-year limited warranty, which automatically extends to 5 years when you register the product within 120 days of purchase. All units are 100% factory tested to ensure they function as designed.
What's in the Box
- Vertiv Geist F0144849 Basic Rack PDU (1U horizontal)
- Mounting brackets and hardware
- Installation guide
Full Specifications
Electrical
| Input Voltage |
230V AC |
| Input Current |
16A |
| Input Connection |
IEC C20 power inlet |
| Number of Outlets |
12 combination outlets |
| Outlet Type |
Combination C13/C19 with U-Lock |
| Frequency |
50/60 Hz |
Physical
| Form Factor |
1U Horizontal Rackmount |
| Rack Compatibility |
Standard 19-inch racks |
| Mounting |
Front or rear horizontal mounting with included brackets |
| Construction |
Metal chassis with U-Lock outlets |
Environmental & Compliance
| Operating Temperature |
0°C to 40°C (standard); up to 60°C (high-temp variants available) |
| Certifications |
UL listed, RoHS compliant |
| Warranty |
3 years standard (5 years with product registration) |
Applications
| Ideal For |
Data centres, server rooms, network closets, colocation facilities, edge computing |
| Compatible Equipment |
Servers, networking switches, storage arrays, telecom equipment, rack-mounted IT devices |
Specifications are sourced from the manufacturer product page and may be updated. Visit Vertiv.com for the most current specifications.
