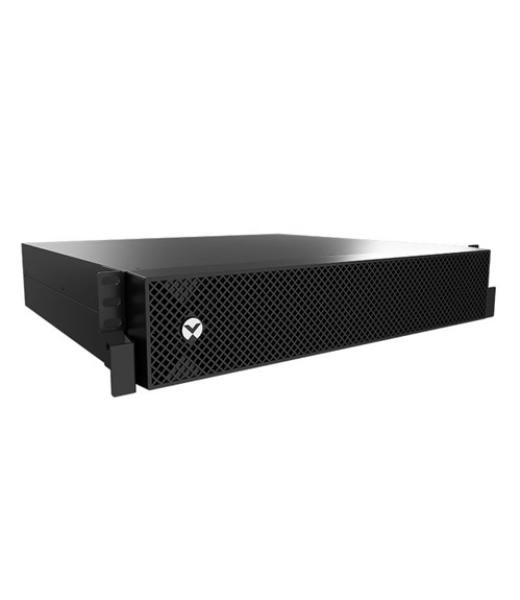

Vertiv Liebert GXE3-EBC48VRT2U 48V External Battery Cabinet for UPS Systems
The Vertiv Liebert GXE3-EBC48VRT2U is a hot-swappable, lead-acid external battery cabinet designed to extend backup runtime for GXE3-2000IRT2UXL UPS systems. This 48V, 2U rack/tower battery cabinet provides scalable runtime for mission-critical applications requiring extended power protection during AC mains failures. Up to 4 external battery cabinets can be connected to a single UPS, allowing IT managers to customize backup duration based on their specific requirements.
Why Choose the Vertiv GXE3-EBC48VRT2U?
This external battery cabinet is the ideal solution for data centers, server rooms, network closets, and IT infrastructure that demand reliable, uninterrupted power. Whether you're protecting critical servers, networking equipment, or telecom infrastructure, the GXE3-EBC48VRT2U ensures your systems stay online during power outages.
Key Features
-
48V DC voltage: Purpose-built for GXE3-2000IRT2UXL UPS systems
-
Hot-swappable design: Easy installation and replacement without interrupting critical loads
-
Scalable runtime: Connect up to 4 battery cabinets for extended backup duration
-
Flexible form factor: 2U rack-mount or tower configuration with included rail kit
-
Lead-acid battery technology: Proven reliability for UPS applications
-
Professional-grade construction: Built for demanding 24/7 data center environments
Flexible Installation Options
The rack/tower convertible design allows this battery cabinet to fit seamlessly into standard 19-inch server racks or stand alone in tower configuration. The included rail kit ensures secure rack mounting in data centers, while the compact 2U height maximizes valuable rack space. Measuring 438 mm wide × 510 mm deep × 86 mm high, it fits easily alongside your existing UPS infrastructure.
Compatibility & Scalability
Specifically designed for the Vertiv Liebert GXE3-2000IRT2UXL UPS (2000VA/1800W), this external battery cabinet uses auto-detection connectivity to ensure proper configuration. The modular approach to battery expansion gives IT managers the flexibility to adapt to growing power needs without replacing the entire UPS system. Add 1, 2, 3, or 4 battery cabinets depending on your required backup runtime.
Ideal Applications
- Data centers and server rooms requiring extended backup time
- Network closets and telecom equipment protection
- Small and medium business IT infrastructure
- Edge computing and distributed IT applications
- Critical industrial control systems
- Healthcare and medical equipment backup power
What's in the Box
- Vertiv Liebert GXE3-EBC48VRT2U external battery cabinet
- Rail kit for rack mounting
- Quick installation guide
- Safety instructions
Full Specifications
Electrical
| Battery Voltage |
48V DC |
| Battery Type |
Lead-acid (VRLA) |
| Hot-Swappable |
Yes |
| Compatible UPS Models |
GXE3-2000IRT2UXL |
| Maximum EBCs per UPS |
Up to 4 units |
Physical
| Form Factor |
2U Rack/Tower |
| Dimensions (W × D × H) |
438 mm × 510 mm × 86 mm |
| Shipping Dimensions (W × D × H) |
650 mm × 600 mm × 235 mm |
| Unit Weight |
28.6 kg |
| Mounting Type |
Rack-mount or Tower with rail kit |
| Color |
Grey/Black |
Environmental
| Operating Temperature |
0°C to 40°C |
| Storage Temperature (without battery) |
-20°C to +50°C |
| Relative Humidity (non-condensing) |
5% to 95% |
| Operating Altitude (without derating) |
Up to 2000 m |
| Audible Noise (line mode) |
<53 dBA |
Compliance & Certification
| Compliance Certificates |
CE, CB Report, UKCA, Morocco, RCM, REACH, RoHS, WEEE |
| Safety Standards |
IEC/EN 62040-1 |
| Surge Immunity |
EN 61000-4-5 |
| Transportation |
ISTA 2A |
Specifications are sourced from the manufacturer product page and may be updated.
