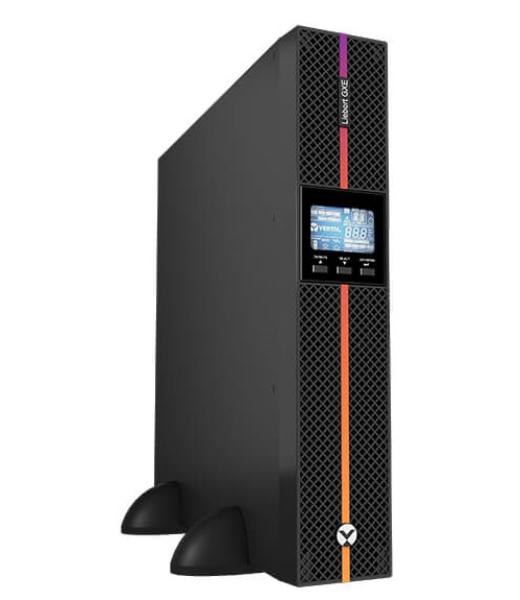

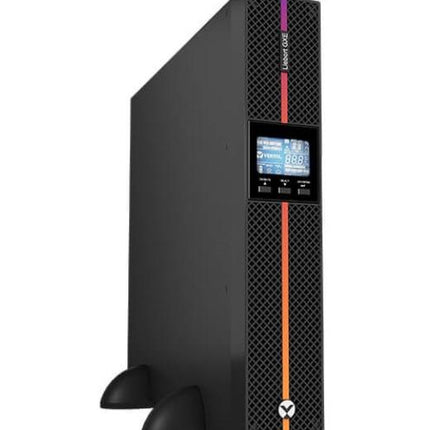

Vertiv Liebert GXE3-1000IRT2UXL 1000VA 900W Online Double Conversion UPS
The Vertiv Liebert GXE3-1000IRT2UXL is an online double conversion single-phase UPS delivering 1000VA/900W of reliable power protection for critical IT equipment. With a high 0.9 output power factor, this 2U rack/tower convertible UPS protects servers, network devices, and infrastructure against power outages, voltage fluctuations, and disturbances in demanding business environments.
Key Features
-
Online Double Conversion Technology: Delivers continuous pure sine wave power with zero transfer time for maximum protection of sensitive equipment
-
High Output Power Factor (0.9 PF): Powers more connected devices while maintaining reliability and efficiency
-
Flexible 2U Rack/Tower Design: Versatile form factor suits data centers, server rooms, and edge computing installations
-
Expandable Runtime: Supports up to 4 optional external battery cabinets for extended backup time during prolonged outages
-
Energy Efficient Operation: Up to 95% efficiency in ECO mode reduces energy costs and heat generation
-
Hot-Swappable Batteries: User-replaceable internal batteries minimize downtime during maintenance
Superior Power Protection
The Liebert GXE3 uses true online double conversion topology to continuously process incoming power through the inverter, ensuring your equipment receives clean, stable electricity regardless of input quality. This technology protects against surges, sags, spikes, and frequency variations – common threats in commercial and industrial environments. With 600 joules of surge protection and a wide input voltage range of 110-290V, the UPS operates without switching to battery mode during minor fluctuations, preserving battery life.
Built for Critical Applications
Designed for edge computing, remote sites, and IT infrastructure, this UPS delivers 3.1 minutes of runtime at full load and 9 minutes at half load with internal batteries. The 8 × IEC60320 C13 output receptacles provide ample connectivity for servers, switches, routers, and storage devices. Fast recharge time of less than 4 hours to 90% ensures rapid recovery after power events.
Intelligent Management and Monitoring
The GXE3 includes a USB communication port and Vertiv Liebert IntelliSlot for optional network management cards, enabling remote monitoring via SNMP, Modbus, or BACNet protocols. Free Vertiv Power Assist software provides local UPS status monitoring and automatic shutdown for Windows, Linux, and Mac OSX systems. An EPO (Emergency Power Off) port offers additional safety control for critical installations.
Reliable Construction
Built with valve-regulated lead-acid (VRLA) batteries and forced air cooling, the Liebert GXE3 operates reliably in ambient temperatures from 0°C to 40°C. The compact 2U rackmount design (438mm W × 430mm D × 86mm H) fits standard 19-inch racks, while included mounting accessories enable tower operation when floor space is available.
Connectivity and Interfaces
-
Input: IEC60320 C14 inlet with 10A circuit breaker
-
Output: 8 × IEC60320 C13 receptacles
-
Communication: USB port, IntelliSlot for network cards, EPO port
-
External Battery Port: Connector for optional battery cabinet expansion
-
Grounding: External ground screw for enhanced safety
What's in the Box
- Vertiv Liebert GXE3-1000IRT2UXL UPS unit with internal batteries
- 2U rack mounting kit
- Input power cable
- USB communication cable
- User manual and quick installation guide
Full Specifications
Capacity and Power
| Model Number |
GXE3-1000IRT2UXL |
| Power Rating |
1000VA / 900W |
| Output Power Factor |
0.9 |
| Topology |
Online Double Conversion |
Input
| Voltage Range (Without Battery Operation) |
110 – 290V |
| Voltage Range (100% Load) |
180 – 290V |
| Frequency Range |
40 – 70 Hz (auto-sensing) |
| Input Connector |
IEC60320 C14 |
| Surge Protection |
600 Joules |
Output
| Output Voltage |
220/230 (default) /240V AC |
| Waveform |
Pure Sine Wave |
| Output Receptacles |
8 × IEC60320 C13 |
| Efficiency (Online Mode) |
Up to 89% |
| Efficiency (ECO Mode) |
Up to 95% |
Battery
| Battery Type |
Valve-regulated non-spillable lead-acid (VRLA) |
| Recharge Time |
<4 hours to 90% |
| Runtime (100% Load) |
3.1 minutes |
| Runtime (50% Load) |
9 minutes |
| Hot-Swappable |
Yes (user replaceable) |
| External Battery Cabinets |
Up to 4 optional EBCs supported |
Communication and Management
| USB Port |
Yes |
| IntelliSlot |
1 slot for optional network management card |
| EPO Port |
Yes |
| Software |
Free Vertiv Power Assist (Windows, Linux, Mac OSX) |
| Optional Monitoring |
Vertiv Power Insight, network cards (SNMP, Modbus, BACNet) |
Physical
| Form Factor |
2U Rack/Tower Convertible |
| Dimensions (W × D × H) |
438mm × 430mm × 86mm (17.2" × 16.9" × 3.4") |
| Weight (Unit) |
16.0 kg (35.2 lbs) |
| Shipping Dimensions (W × D × H) |
600mm × 560mm × 235mm (23.6" × 22.0" × 9.3") |
| Shipping Weight |
17.6 kg (38.8 lbs) |
| Rack Units |
2U |
| Minimum Airflow Clearance |
100mm (4.0") front and rear |
Environmental
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-20°C to +50°C (without batteries) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Operating Altitude |
Up to 2000m without derating; up to 3000m with derating |
| Cooling |
Forced air (internal fan) |
Compliance and Warranty
| Certifications |
CB, CE, RCM, REACH, RoHS, UKCA, WEEE, EN/IEC 62040-1 |
| Warranty |
2 years (electronics and batteries) |
Specifications are sourced from the official manufacturer product page and may be updated.
