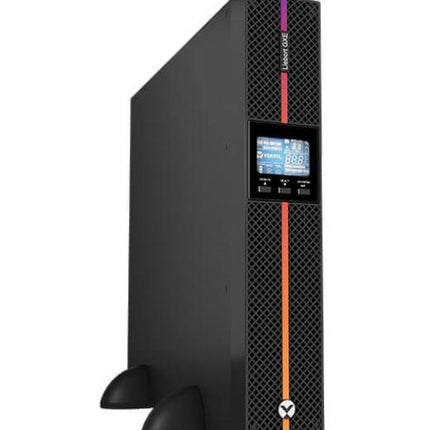

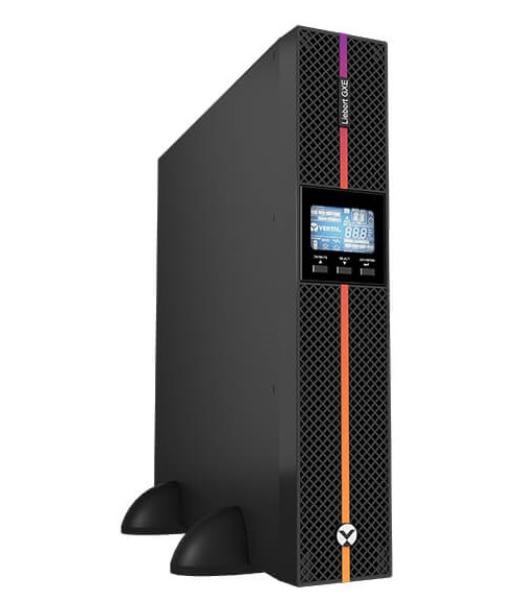

Vertiv Liebert GXE3 2000VA 1800W Rack/Tower Online UPS 2U 230V
The Vertiv Liebert GXE3-2000IRT2UXL is an affordable, high-performance 2000VA/1800W online double conversion UPS designed to deliver continuous, reliable power protection for critical IT equipment in data centres, offices, and edge computing environments. With a high 0.9 power factor, flexible 2U rack or tower installation, and robust battery backup, this UPS safeguards servers, network devices, storage systems, and telecommunications equipment against power disturbances, outages, and surges.
Key Features
-
2000VA / 1800W Capacity: High output power factor (0.9) enables reliable protection for more connected devices
-
Online Double Conversion Technology: Provides continuous pure sine wave output, protecting against all AC power disturbances
-
Flexible Rack/Tower Design: 2U form factor with included rail kit for versatile deployment in data centres or offices
-
8 IEC C13 Output Outlets: Multiple outlets for connecting servers, routers, storage, and network equipment
-
Scalable Runtime: Support for up to 4 external battery cabinets for extended backup time during prolonged outages
-
High Efficiency ECO Mode: Up to 95% efficiency in ECO mode reduces energy costs and heat generation
Advanced Power Protection for Critical Applications
The Liebert GXE3 UPS is engineered for financial, government, healthcare, manufacturing, and retail environments where uninterrupted power is essential. The online double conversion topology ensures connected equipment receives clean, regulated power regardless of input conditions, eliminating transfer time and protecting sensitive electronics from voltage fluctuations, frequency variations, and harmonic distortion.
Intelligent Monitoring and Management
Equipped with an LCD display for real-time status monitoring and a USB communication port for local management. The UPS includes a Liebert IntelliSlot for optional network management cards, enabling remote monitoring, SNMP support, and automated server shutdown via compatible software including Vertiv Power Assist for Windows, Linux, and Mac OSX.
Reliable Battery Backup
The GXE3-2000IRT2UXL features internal valve-regulated lead-acid (VRLA) batteries providing approximately 3.2 minutes runtime at full load and 9 minutes at 50% load. The intelligent two-stage battery charger ensures 4-hour recharge time to 90% capacity, prolonging battery life and maintaining readiness for future outages.
Connectivity and Expansion
-
Input: IEC C20 inlet for secure power connection
-
Output: 8 × IEC C13 outlets
-
USB Communication Port: For power management software and local monitoring
-
Liebert IntelliSlot: For optional network management card (e.g., RDU120)
-
EPO Port: Emergency Power Off for safety compliance
-
External Battery Connector: For optional GXE3-EBC48VRT2U battery cabinets
What's in the Box
- Vertiv Liebert GXE3-2000IRT2UXL UPS unit
- Rackmount rail kit
- Power cables
- USB cable
- User manual
Full Specifications
| Model Number |
GXE3-2000IRT2UXL |
| Capacity |
2000VA / 1800W |
| Topology |
Online Double Conversion |
| Output Power Factor |
0.9 |
| Form Factor |
2U Rack/Tower |
| Dimensions (W × D × H) |
438mm × 430mm × 86mm (17.2" × 16.9" × 3.4") |
| Weight |
22.7 kg (50.0 lbs) |
| Input Voltage |
230V AC |
| Input Connection |
IEC C20 inlet |
| Output Voltage |
230V AC (pure sine wave) |
| Output Outlets |
8 × IEC C13 |
| Battery Type |
Valve-regulated lead-acid (VRLA) |
| Runtime (100% Load) |
3.2 minutes |
| Runtime (50% Load) |
9 minutes |
| Battery Recharge Time |
4 hours to 90% capacity |
| Efficiency (ECO Mode) |
Up to 95% |
| Communication Ports |
USB, Liebert IntelliSlot, EPO |
| External Battery Support |
Up to 4 × GXE3-EBC48VRT2U cabinets |
| Display |
LCD panel |
| Certifications |
CE, UKCA, RCM, RoHS, WEEE |
| Warranty |
2 years (electronics and internal battery) |
Specifications are sourced from the manufacturer product page and may be updated.
