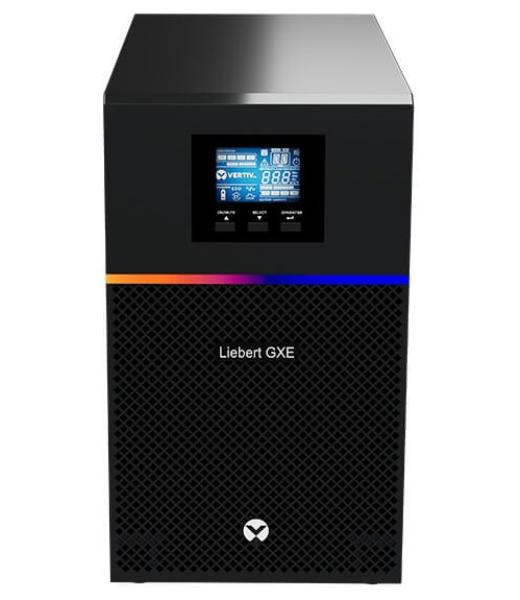

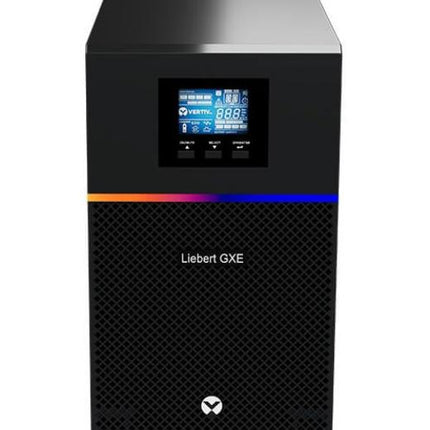

Vertiv Liebert GXE3 3000VA 2700W 230V Online Double Conversion Rack/Tower UPS
The Vertiv Liebert GXE3-3000IRT2UXL is an affordable, efficient 3kVA/2700W single-phase UPS featuring online double-conversion technology that delivers continuous, high-quality power protection for critical IT, networking, and communications equipment. With a high output power factor of 0.9, this UPS protects connected devices from voltage sags, spikes, blackouts, brownouts, and electrical noise by continuously conditioning and regulating output power to provide a stable, pure sine wave supply.
Key Features
-
Online Double-Conversion Technology: Zero transfer time to battery ensures seamless protection during utility power failures
-
3000VA / 2700W Capacity: High output power factor (0.9) supports demanding load requirements while maximizing usable power
-
Flexible 2U Rack/Tower Design: Convertible form factor suitable for server rooms, network closets, edge computing, and small to medium data centers
-
High Efficiency Operation: Up to 91% efficiency in online mode and up to 96% in ECO mode for reduced energy consumption and lower operational costs
-
Hot-Swappable VRLA Batteries: Fast recharge capability (less than 4 hours to 90% capacity) with support for up to 4 external battery cabinets for extended runtime
-
User-Friendly LCD Interface: Real-time status visibility and easy local control
Reliable Power Protection
The GXE3-3000IRT2UXL protects your critical equipment from a wide range of mains power disturbances. The online double-conversion topology ensures zero transfer time to battery, offering seamless protection during utility power failures. It's ideal for critical applications in banking, financial and insurance, education, government, healthcare, manufacturing, retail and wholesale, telecom, and transportation establishments.
Scalable Runtime and Flexible Monitoring
With internal valve-regulated lead-acid batteries, the UPS provides 3.3 minutes runtime at 100% load and 9.5 minutes at 50% load. The rack/tower model supports up to 4 additional external battery cabinets, allowing backup time to be scaled based on application needs. Remote management is enabled through the integrated Vertiv Liebert IntelliSlot for optional network management cards, along with USB connectivity and free Vertiv Power Assist software for local UPS status and shutdown.
Space-Efficient and Versatile Deployment
The compact 2U rack-mountable design (438 x 630 x 86 mm) or tower configuration makes it suitable for deployment where space efficiency and adaptability are essential. The unit comes complete with a rack-mount kit for versatile installation options.
Connectivity and Management
-
Input: IEC60320-C20 inlet for secure universal power connection
-
Outputs: 8 × IEC60320-C13 outlets + 1 × IEC60320-C19 outlet
-
USB Communication Port: For local monitoring and management
-
IntelliSlot: For optional Vertiv Liebert network management cards (SNMP, Modbus, BACNet support)
-
Emergency Power Off (EPO): Remote shutdown capability
What's in the Box
- Vertiv Liebert GXE3-3000IRT2UXL UPS unit
- Rack-mount kit
- Power cables
- USB cable
- User manual
Full Specifications
Power
| Model Number |
GXE3-3000IRT2UXL |
| Output Power Rating |
3000VA / 2700W |
| Output Power Factor |
0.9 |
| Technology |
Online Double-Conversion |
| Input Voltage Range (without battery operation) |
110 - 290 VAC |
| Input Voltage Range (100% load) |
180 - 290 VAC |
| Input Frequency Range |
40 - 70 Hz (autosensing) |
| Output Voltage |
230 VAC |
Battery and Runtime
| Battery Type |
Valve-regulated non-spillable lead-acid (VRLA) |
| Runtime at 100% Load |
3.3 minutes |
| Runtime at 50% Load |
9.5 minutes |
| Recharge Time to 90% Capacity |
<4 hours |
| Hot-Swappable Batteries |
Yes |
| External Battery Cabinet Support |
Up to 4 cabinets (GXE3-EBC72VRT2U) |
Efficiency and Environmental
| Efficiency (Online Mode) |
Up to 91% |
| Efficiency (ECO Mode) |
Up to 96% |
| Operating Temperature |
0 to 40°C |
| Storage Temperature (without battery) |
-20°C to +50°C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Operating Altitude (without derating) |
Up to 2000 m |
| Audible Noise (line mode) |
<53 dBA |
Physical Dimensions
| Form Factor |
2U Rack / Tower Convertible |
| Dimensions (W × D × H) |
438 × 630 × 86 mm |
| Weight (Unit) |
31.5 kg |
| Weight (Shipping) |
34.2 kg |
Connectivity and Management
| Input Connection |
IEC60320-C20 |
| Output Connections |
8 × IEC60320-C13 + 1 × IEC60320-C19 |
| Communication |
USB port, Vertiv Liebert IntelliSlot for optional network management card |
| Emergency Power Off (EPO) |
Yes |
| Management Software |
Vertiv Power Assist (free), Vertiv Power Insight |
Compliance and Warranty
| Safety Standards |
IEC/EN 62040-1 |
| Surge Immunity |
EN 61000-4-5 |
| Certifications |
CE, CB Report, UKCA, Morocco, RCM |
| Environmental Compliance |
RoHS, REACH, WEEE |
| Warranty |
2 years (electronics and internal batteries) |
Specifications are sourced from the manufacturer product page and may be updated.
