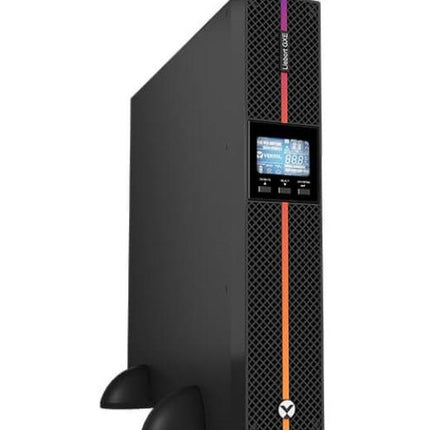

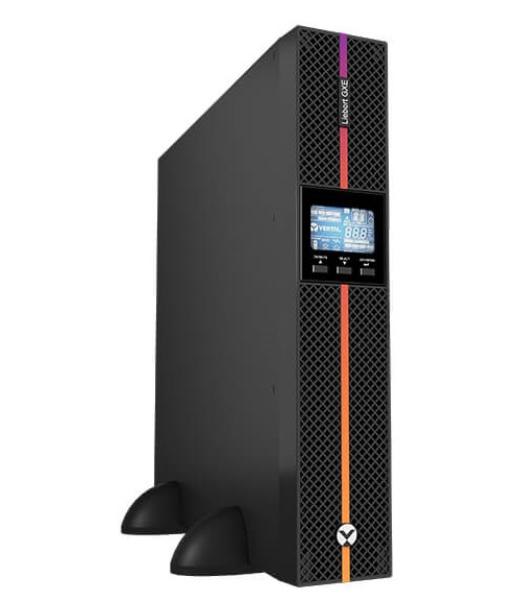

Vertiv Liebert GXE3 3000VA Rack/Tower UPS with 2700W Output Power
The Vertiv Liebert GXE3 3000VA Rack/Tower UPS delivers reliable power protection for critical IT equipment with online double conversion technology and a high 0.9 power factor. Designed for servers, networking equipment, and business systems in financial, government, healthcare, and manufacturing environments, this 3kVA/2700W UPS protects against power outages, voltage fluctuations, and disturbances. With flexible 2U rack or tower mounting, hot-swappable batteries, and optional external battery cabinets for extended runtime, the Liebert GXE3 combines affordability with enterprise-grade performance.
Key Features
-
3000VA/2700W Capacity: High output power factor (0.9) supports more connected devices with continuous, reliable power
-
Online Double Conversion Technology: Provides pure sine wave output and zero transfer time for maximum protection against all power disturbances
-
Flexible Rack/Tower Design: 2U rackmount or tower configuration for versatile deployment in server rooms, network closets, and edge locations
-
Hot-Swappable Batteries: User-replaceable internal batteries allow maintenance without powering down equipment
-
Scalable Runtime: Supports up to 4 external battery cabinets for extended backup time during prolonged outages
-
High Efficiency: Up to 91% efficiency in online mode and up to 96% in ECO mode for reduced energy costs
-
9 AC Outlets: 8 x IEC C13 and 1 x IEC C19 outlets for flexible load management
-
Optional Remote Management: IntelliSlot port for Vertiv network management cards enables SNMP/web-based monitoring
Advanced Power Protection
The Liebert GXE3-3000IRT2UXL uses true online double conversion topology to continuously condition incoming power, delivering clean, stable electricity to your critical equipment regardless of input quality. The powerful 6A battery charger recharges internal batteries to 90% capacity in under 4 hours, ensuring your system is ready for the next outage. With automatic internal bypass and EPO (Emergency Power Off) functionality, the UPS provides comprehensive protection with multiple fail-safe mechanisms.
Versatile Installation and Management
Install the UPS in a standard 19-inch rack using the included rackmount kit, or deploy it as a tower unit using optional feet. The intuitive LCD display provides real-time status information including input/output voltage, load percentage, battery capacity, and alarms. Free Vertiv Power Assist software enables local UPS monitoring and automated server shutdown, while optional Vertiv IntelliSlot network cards provide remote management via SNMP, web interface, or Vertiv Power Insight software.
Ideal Applications
-
IT Infrastructure: Servers, networking equipment, storage devices, and data centers
-
Financial Services: Branch offices, ATMs, and transaction processing systems
-
Healthcare: Medical records systems and critical care equipment
-
Government: Distributed offices and secure communication systems
-
Manufacturing: Industrial control systems and SCADA equipment
-
Retail: Point-of-sale systems and inventory management
-
Telecom: Edge computing and 5G mobile stations
-
Education: Network closets and IT equipment protection
What's in the Box
- Vertiv Liebert GXE3-3000IRT2UXL UPS with internal batteries
- Rackmount kit with brackets and hardware
- IEC C20 input power cable
- USB cable for local management
- User manual and quick installation guide
- CD with Power Assist software
Full Specifications
| Model Number |
GXE3-3000IRT2UXL |
| Power Rating |
3000VA / 2700W |
| Output Power Factor |
0.9 |
| Topology |
Online Double Conversion |
| Form Factor |
Rack/Tower (2U) |
| Dimensions (W x D x H) |
438 x 630 x 86 mm |
| Weight |
31.5 kg |
| Input Voltage Range |
110-290 VAC (derating applies) |
| Input Frequency |
50/60 Hz ±10% |
| Input Connection |
IEC 60320 C20 |
| Output Voltage |
230 VAC ±2% (battery mode) |
| Output Frequency |
50/60 Hz ±0.1 Hz (battery mode) |
| Output Waveform |
Pure Sine Wave |
| AC Outlets |
8 x IEC 60320 C13, 1 x IEC 60320 C19 |
| Transfer Time |
Zero (online double conversion) |
| Efficiency (Online Mode) |
Up to 91% |
| Efficiency (ECO Mode) |
Up to 96% |
| Battery Type |
Valve-regulated lead acid (VRLA) |
| Runtime at 100% Load |
3.3 minutes (internal batteries) |
| Runtime at 50% Load |
9.5 minutes (internal batteries) |
| Battery Recharge Time |
Less than 4 hours to 90% capacity |
| Battery Charger |
6A maximum |
| External Battery Cabinets |
Up to 4 cabinets supported |
| Hot-Swappable Batteries |
Yes, user-replaceable |
| Display |
LCD with status indicators |
| Communication Ports |
USB, EPO, IntelliSlot (for optional network card) |
| Software |
Vertiv Power Assist (included), Power Insight (optional) |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-15°C to 60°C |
| Humidity |
0-95% RH (non-condensing) |
| Altitude |
Up to 3000m (with derating) |
| Audible Noise |
Less than 55 dBA at 1 meter |
| Safety Certifications |
CE, RCM |
| Warranty |
2 years (electronics and batteries) |
Specifications are sourced from the manufacturer product page and may be updated.
