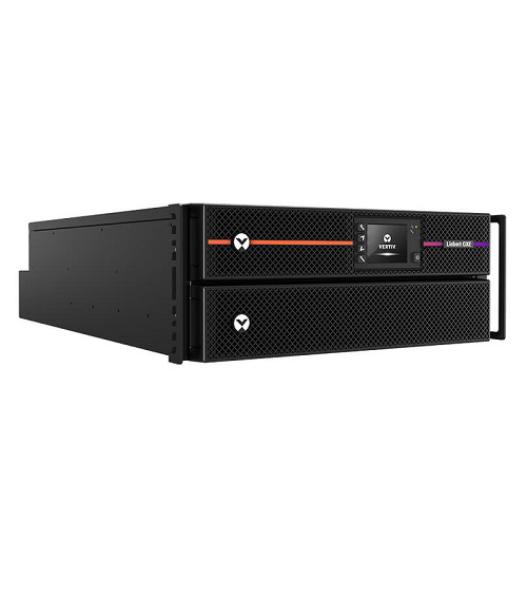

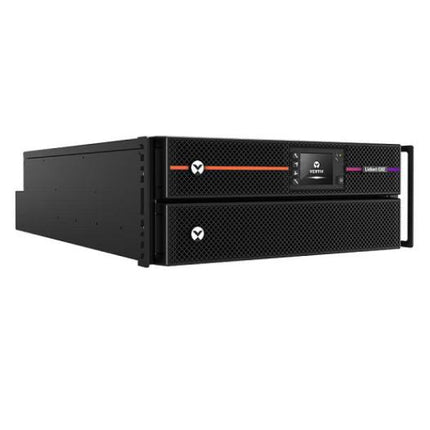

Vertiv Liebert GXE3 6000VA Rack Tower UPS 6000W Double Conversion
The Vertiv Liebert GXE3 6000VA UPS is an online double conversion single-phase UPS that delivers premium power protection in an affordable, efficient system with flexible deployment options. With a 6000VA/6000W output capacity and unity power factor (1.0), this rack/tower convertible UPS protects mission-critical IT, networking, and communications equipment from all power disturbances including voltage sags, spikes, surges, brownouts, blackouts, and electrical noise. Perfect for server rooms, network closets, edge data centers, and enterprise IT environments.
Key Features
-
True Online Double Conversion Technology: Provides continuous power conditioning with zero transfer time, ensuring uninterrupted protection during utility power failures
-
6000VA/6000W Capacity with Unity Power Factor: Supports power-dense equipment and modern server loads efficiently
-
Flexible 4U Rack/Tower Design: Install in a standard 19-inch rack or use as a floor-standing tower for maximum deployment flexibility
-
Hot-Swappable Internal Batteries: User-replaceable VRLA batteries allow maintenance without shutting down connected equipment
-
Scalable Runtime: Supports external battery cabinets to extend backup time based on your application requirements
-
Full-Colour Graphic LCD with Gravity Sensing: Intuitive display automatically orients for easy monitoring in rack or tower configuration
Advanced Power Protection
The Liebert GXE3 utilises online double conversion topology to continuously convert incoming AC power to DC, then back to clean, stable AC output. This ensures your critical equipment receives a pure sine wave output free from disturbances. The wide input voltage range (100-288V without battery operation) accommodates varying power conditions, while 600J surge protection guards against voltage spikes and transients.
Intelligent Management & Monitoring
Manage your UPS locally via USB connectivity with free Vertiv Power Assist software, or remotely through optional Liebert IntelliSlot communication cards for SNMP, web interface, BACnet IP/MSTP, Modbus TCP/RTU, and environmental sensor support. The IntelliSlot expansion slot allows field installation of network management cards without interrupting UPS operation. RS-232 serial port and EPO (Emergency Power Off) support provide additional control options.
High Efficiency & Reliability
Achieve significant energy savings with high efficiency in both online and economy modes, reducing operating costs while maintaining high-availability power protection. The two-stage battery charger is designed to prolong battery life. Inverter overload capability supports 105% continuous load, with automatic bypass transfer for higher overload conditions. Internal backup provides 5.5 minutes runtime at full load or 14.6 minutes at half load.
Input & Output Specifications
-
Input Voltage Range: 100-288V AC (without battery), 176-288V AC at 100% load
-
Frequency Range: 40-70 Hz (auto-sensing)
-
Input Connection: Hardwired terminals (L-N-G)
-
Output Capacity: 6000VA/6000W
-
Output Power Factor: 1.0 (unity)
-
Output Connection: Hardwired terminals
Flexible Installation
The 4U rack-mountable form factor (430mm W × 750mm D × 173mm H) fits standard 19-inch racks, or convert to tower orientation for floor-standing installation. The gravity-sensing LCD automatically adjusts display orientation. Suitable for IT equipment protection in data centers, server rooms, telecommunications facilities, healthcare environments, industrial control systems, and edge computing deployments.
What's in the Box
- Vertiv Liebert GXE3-6000IRT4UXL UPS with internal batteries
- Configuration cable
- User documentation and quick installation guide
- Rack mounting hardware (for 4U rack installation)
Full Specifications
Power
| Output Capacity |
6000VA / 6000W |
| Output Power Factor |
1.0 (Unity) |
| Topology |
Online Double Conversion |
| Phase |
Single-phase |
| Input Voltage Range (without battery) |
100-288V AC |
| Input Voltage Range (100% load) |
176-288V AC |
| Input Frequency Range |
40-70 Hz (auto-sensing) |
| Surge Protection |
600 Joules |
| Input Wiring |
Hardwired (terminals L-N-G) |
| Output Wiring |
Hardwired |
Battery & Runtime
| Battery Type |
Valve Regulated Lead Acid (VRLA), non-spillable |
| Hot-Swappable Batteries |
Yes, user replaceable |
| Runtime at Full Load |
5.5 minutes |
| Runtime at Half Load |
14.6 minutes |
| External Battery Support |
Yes (optional external battery cabinets) |
| Battery Charger |
Two-stage, designed to prolong battery life |
Performance
| Inverter Overload Capacity |
0-105% continuous; 106-125% for 5 min; 126-150% for 1 min |
| Voltage Transient Response |
±5% for 0-100% load step |
| Transient Recovery Time |
Within 60 ms to nominal voltage |
| Transfer Time |
Zero (continuous online conversion) |
Interface & Management
| Display |
Full-colour graphic LCD with gravity sensing orientation |
| Communication Ports |
USB, RS-232 (RJ-45 connector) |
| Expansion Slot |
1 × Liebert IntelliSlot (for optional network cards) |
| Emergency Power Off (EPO) |
Yes |
| Local Management Software |
Vertiv Power Assist (free download) |
| Remote Management Software |
Vertiv Power Insight (free download, requires optional network card) |
| Operating Systems Supported |
Windows XP or later, Linux, Mac OSX |
Physical
| Form Factor |
Rack/Tower convertible (4U) |
| Dimensions (W × D × H) |
430 × 750 × 173 mm |
| Weight (Unit) |
70 kg |
| Shipping Dimensions (W × D × H) |
600 × 850 × 480 mm |
| Shipping Weight |
92 kg |
| Rack Compatibility |
Standard 19-inch rack (4U height) |
Environmental
| Operating Temperature |
0-40°C (optimum battery life at 25°C) |
| Altitude |
Up to 3000 m (with power derating) |
Warranty & Compliance
| Standard Warranty |
1 year (electronics and batteries) |
| Extended Warranty Options |
Available (optional purchase) |
Specifications are sourced from the manufacturer product page and may be updated.
