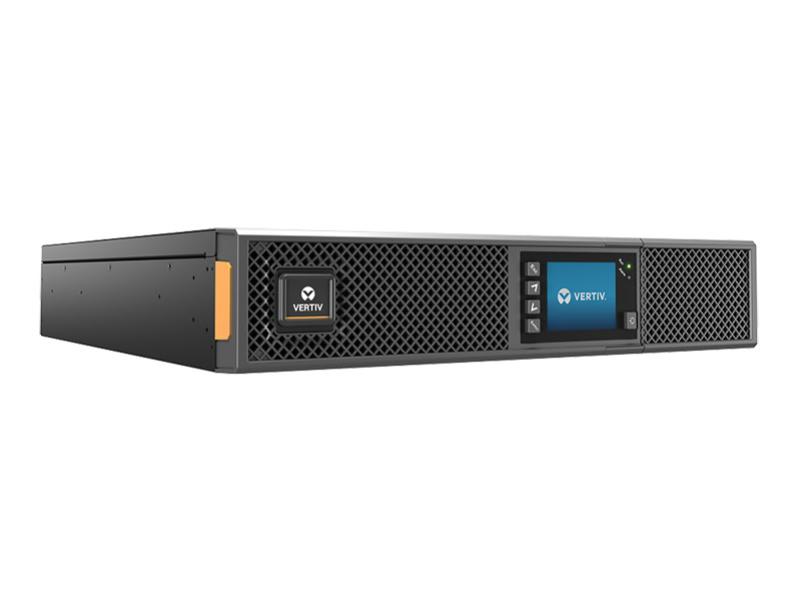

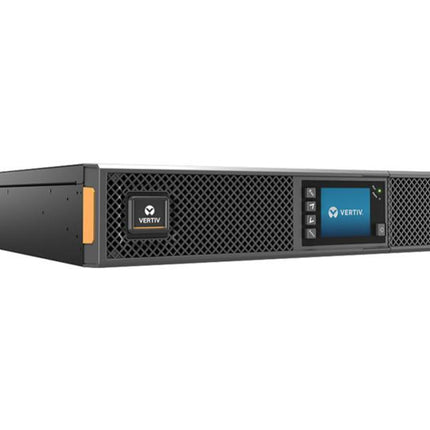

Vertiv Liebert GXT5 1500VA Online UPS 2U Rack Tower 120V
The Vertiv Liebert GXT5 1500VA/1350W UPS is a compact 2U rack/tower convertible online double conversion UPS designed to protect critical IT infrastructure against power outages and disturbances. Perfect for server rooms, network closets, and edge IT applications, this ENERGY STAR 2.0 certified UPS delivers continuous power conditioning with zero transfer time and pure sine wave output, ensuring maximum uptime for servers, networking equipment, and business-critical systems in Australian data centres and office environments.
Premium Power Protection for Critical IT Systems
With online double conversion technology, the Vertiv Liebert GXT5 provides the highest level of power protection by continuously conditioning incoming power and protecting connected equipment from blackouts, brownouts, voltage sags, surges, and electrical noise. The 1500VA/1350W capacity with high 0.9 power factor delivers more usable power for connected devices, while hot-swappable batteries allow for maintenance without disrupting power to critical loads.
Key Features
-
1500VA/1350W capacity: High power factor (0.9) provides maximum usable power for connected IT equipment
-
Online double conversion topology: Zero transfer time and continuous power conditioning for ultimate protection
-
2U rack/tower convertible design: Flexible installation options with included mounting hardware and tower base
-
Hot-swappable batteries: User-replaceable batteries extend UPS life without downtime
-
95% online efficiency, 98% ECO mode: ENERGY STAR 2.0 certified for reduced energy costs and heat dissipation
-
4 programmable outlets: Individual outlet control for load shedding and sequential restart
-
Scalable runtime: Supports external battery cabinets for extended runtime during outages
-
Color graphic LCD: Gravity-sensing display with intuitive interface for configuration and monitoring
Intelligent Management and Connectivity
The Vertiv Liebert GXT5 includes USB, RS232, and RS485 interfaces for local management and supports an optional Vertiv IntelliSlot RDU120 network card for SNMP and web-based remote monitoring. The color LCD display provides real-time UPS status, while the integrated serial connection enables advanced console server integration for out-of-band management. Compatible with Vertiv Trellis Power Insight software and LIFE Services for proactive monitoring and support.
Versatile Rack or Tower Installation
This 2U compact design fits standard 19-inch equipment racks or can be deployed as a tower in open environments. All mounting hardware is included for hassle-free installation. The 120V input (60-150V range) and user-configurable 110/115/120/125V output accommodate various power environments commonly found in Australian business and data centre applications.
What's in the Box
- Vertiv Liebert GXT5-1500LVRT2UXL UPS
- Internal lead-acid batteries (pre-installed)
- Rack mounting hardware kit
- Tower base stand
- Power cord with NEMA 5-15P plug
- USB cable
- User manual and quick start guide
Full Specifications
Power
| Capacity |
1500VA / 1350W |
| Power Factor |
0.9 |
| Topology |
Online double conversion |
| Input Voltage |
120V typical (60-150V range) |
| Output Voltage |
110/115/120/125VAC (user-configurable) ±3% |
| Efficiency |
95% online mode, 98% Active ECO mode |
| Waveform |
Pure sine wave |
| Transfer Time |
Zero (continuous online) |
Battery and Runtime
| Battery Type |
Lead-acid VRLA, hot-swappable |
| Recharge Time |
3 hours to 90% capacity |
| Runtime at Full Load |
Approximately 6.7 minutes (1350W) |
| Runtime at Half Load |
Approximately 18.8 minutes (675W) |
| Expected Battery Life |
3-5 years |
| External Battery Support |
Yes, supports up to 10 external battery cabinets |
Outlets and Connectivity
| Output Receptacles |
6 × NEMA 5-15R (4 programmable, 2 non-programmable) |
| Input Plug |
NEMA 5-15P with 10-foot cord |
| Communication Ports |
USB, RS232, RS485, terminal block, external battery connector |
| Network Management |
Optional Vertiv IntelliSlot RDU120 card (sold separately) |
| Protocols |
SNMP, web management with optional card |
Physical and Environmental
| Form Factor |
2U rack/tower convertible |
| Dimensions (H × W × D) |
85mm × 430mm × 470mm (3.4" × 16.9" × 18.6") |
| Weight |
21 kg (46.2 lb) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-15°C to 40°C (5°F to 104°F) |
| Operating Humidity |
0-95% non-condensing |
| Noise Level |
Less than 45 dB typical |
Certifications and Warranty
| Certifications |
ENERGY STAR 2.0, UL 1778 4th Ed., CSA 22.2 No. 107.1, WEEE, RoHS2, REACH |
| Warranty |
3-year advanced replacement, full-coverage factory warranty |
Specifications are sourced from the manufacturer product page and may be updated.
