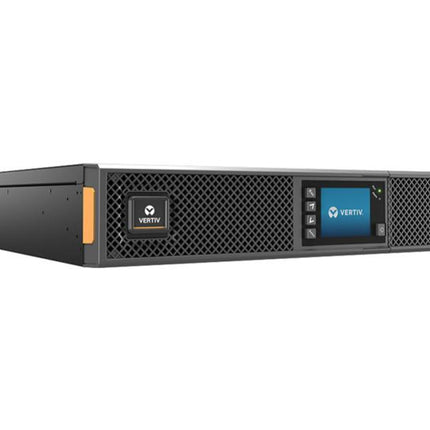

Vertiv Liebert GXT5 1kVA 1kW Online UPS 2U Rack/Tower Convertible
The Vertiv Liebert GXT5 is an online double-conversion UPS that delivers 1000VA/1000W of premium power protection for mission-critical IT equipment in server rooms, network closets, and edge locations. With zero transfer time, pure sinewave output, and unity power factor (1.0), this 2U UPS protects servers, routers, and network gear from every type of power disturbance including blackouts, brownouts, surges, and noise interference.
Why Choose the Vertiv Liebert GXT5?
-
Online Double-Conversion Technology: Continuous power conditioning with zero transfer time protects critical equipment without drawing on battery power, extending battery life
-
Unity Power Factor: 1kVA = 1kW delivers more usable power to connected equipment compared to standard UPS units
-
Flexible Installation: Convertible 2U rack/tower design with included mounting hardware for versatile deployment
-
Hot-Swappable Batteries: User-replaceable batteries allow maintenance without interrupting power to connected equipment
-
Scalable Runtime: Extend backup time with optional external battery cabinets (GXT5-EBC36VRT2UE) with auto-detection
-
Energy Star 2.0 Certified: Up to 98% efficiency in ECO mode reduces energy costs and heat dissipation
-
Intelligent Management: Gravity-sensing colour LCD interface plus optional RDU101 network card for remote monitoring
-
Programmable Output Sockets: Individually controlled outlets for optimised battery usage and device management
Premium Power Protection for Edge Applications
The Liebert GXT5 is ideal for distributed IT environments including retail stores, bank branches, school districts, government offices, and remote network closets where IT downtime can disrupt business. With 3-hour recharge time to 90% capacity and intelligent battery health management, the GXT5 provides reliable protection with minimal maintenance requirements.
Runtime Performance
-
Full Load (1000W): 6.7 minutes internal battery / 32.6 minutes with 1 external battery cabinet
-
Half Load (500W): 17.9 minutes internal battery / 76.5 minutes with 1 external battery cabinet
Advanced Remote Management
The optional RDU101 SNMP/webcard enables remote monitoring and management through the free Vertiv Power Insight software, allowing you to monitor up to 100 distributed UPS units from a single interface. The network card supports environmental sensors to monitor temperature, humidity, and other factors in remote locations. Integrated dry-contacts with selectable definitions provide flexible alarm integration.
Connectivity & Interfaces
-
Input: IEC 320 C14 (NEMA 5-15P plug, 10 ft cord)
-
Output: (6) NEMA 5-15R outlets (4 individually programmable)
-
Communications: USB and RS-232 serial ports
-
Network: Optional RDU101 SNMP/webcard with Liebert IntelliSlot
-
Dry Contacts: Integrated with selectable alarm definitions
What's in the Box
- Vertiv Liebert GXT5-1000LVRT2UXL UPS
- Rack mounting hardware kit
- Tower installation base
- Power cord (NEMA 5-15P, 10 ft)
- USB cable
- Serial cable
- User manual
Full Specifications
Power
| Capacity |
1000VA / 1000W |
| Output Power Factor |
1.0 (Unity) |
| Topology |
Online Double-Conversion |
| Input Voltage |
120V AC (60-150V range) |
| Input Frequency |
50/60 Hz ±10 Hz (auto-sensing) |
| Output Voltage |
120V AC ±5% |
| Output Frequency |
50/60 Hz ±0.05 Hz (synchronized) |
| Output Waveform |
Pure Sinewave |
| Transfer Time |
Zero (online double-conversion) |
| Efficiency (Normal Mode) |
Up to 94% |
| Efficiency (ECO Mode) |
Up to 98% |
Battery & Runtime
| Battery Type |
Sealed Lead Acid (VRLA), hot-swappable |
| Runtime (Full Load) |
6.7 minutes (UPS only) |
| Runtime (Half Load) |
17.9 minutes (UPS only) |
| Recharge Time |
3 hours to 90% capacity (after full discharge) |
| Battery Life |
3-5 years (typical) |
| External Battery Cabinet |
Compatible (GXT5-EBC36VRT2UE) with auto-detection |
Physical Specifications
| Form Factor |
2U Rack / Tower Convertible |
| Dimensions (W × D × H) |
429mm × 399mm × 86mm (16.9" × 15.7" × 3.4") |
| Weight |
16.8 kg (37 lbs) |
| Rack Space |
2U |
| Colour |
Black |
Environmental
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-15°C to 60°C (5°F to 140°F) |
| Operating Humidity |
0 to 95% non-condensing |
| Storage Humidity |
0 to 95% non-condensing |
| Altitude |
0-3,000m (derate 5°C per 500m above) |
| Certifications |
Energy Star 2.0, UL1778, ANSI C62.41 Cat. B |
Management & Interface
| Display |
Colour LCD with gravity-sensing orientation |
| Local Interface |
Front panel LCD with navigation buttons |
| Communications Ports |
USB, RS-232 serial |
| Network Card Slot |
Liebert IntelliSlot (RDU101 optional) |
| Management Software |
Vertiv Power Insight (free download) |
| Monitoring |
SNMP, web UI (with optional RDU101) |
| Dry Contacts |
Integrated (On Battery, Low Battery, Summary Alarm, UPS Fault) |
Warranty & Support
| Warranty |
3 years advanced replacement, full coverage |
| Extended Warranty |
Available (optional) |
| Support Services |
Vertiv LIFE Services available (optional) |
Specifications are sourced from the manufacturer product page and may be updated.
