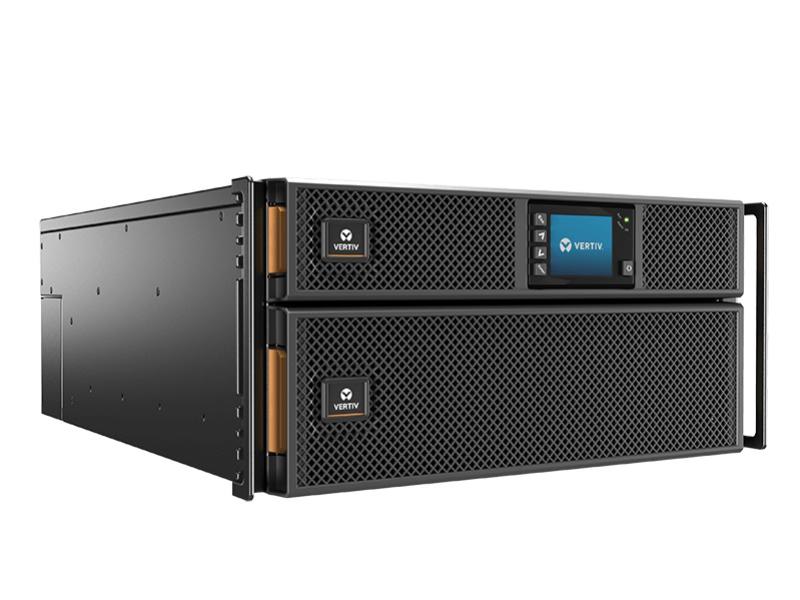

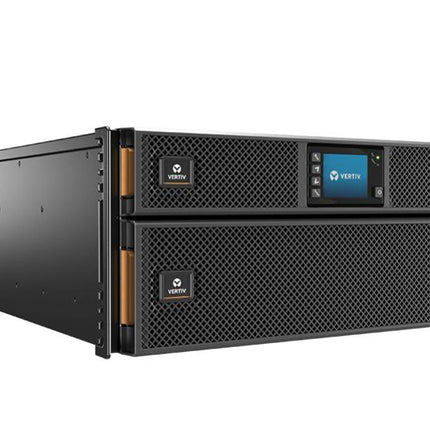

Vertiv Liebert GXT5 5000VA Online Double Conversion Rack Tower UPS
The Vertiv Liebert GXT5-5000MVRT4UXLN is a 5000VA/5000W online double conversion UPS designed to deliver premium power protection for critical IT infrastructure in data centres, network closets, server rooms, and edge computing environments. Featuring continuous power conditioning with zero transfer time, this flexible rack/tower UPS ensures your servers, routers, and mission-critical equipment stay protected against outages, brownouts, surges, and every type of power disturbance.
Key Features
-
5000VA/5000W power capacity: High output power with unity power factor (1.0) allows you to connect more devices and maximise usable power
-
Online double conversion topology: Provides pure sinewave output and zero transfer time for the highest level of power protection
-
Convertible rack/tower design: 4U rack-mountable or freestanding tower configuration for flexible installation in any environment
-
Factory pre-installed RDU101 SNMP/Webcard: Enables remote monitoring, SNMP management, and web-based configuration straight out of the box
-
Energy Star 2.0 certified: Up to 95% efficiency in online mode and 98% in Active ECO mode for lower operating costs and reduced environmental impact
-
Scalable runtime options: Hot-swappable internal batteries and auto-detection of external battery cabinets for extended backup time during outages
-
Gravity-sensing colour LCD: Intuitive full-colour graphic display automatically rotates for easy viewing in rack or tower orientation
-
Integrated maintenance bypass: Allows for safe UPS servicing without powering down connected equipment
Premium Power Protection for Critical Equipment
Built on true online double conversion technology, the Liebert GXT5 continuously conditions incoming power and eliminates voltage fluctuations, frequency variations, and harmonic distortion. The UPS produces a pure sinewave output with zero transfer time, ensuring your sensitive IT equipment receives clean, stable power at all times. With a high power factor up to unity (1.0), you can safely connect more loads and reduce the need for oversized UPS systems, saving both space and cost.
Flexible Deployment and Easy Management
The convertible rack/tower form factor makes the GXT5 easy to deploy in any environment. Install it in a standard 19-inch rack (4U rack space, 430mm W × 650mm D × 173mm H) or use the included tower stand for freestanding placement in open areas. The factory-installed Vertiv RDU101 communications card provides SNMP and web-based management capabilities, allowing remote monitoring and control. Use the free Vertiv Power Insight software to consolidate monitoring of up to 100 distributed UPS units in a single dashboard, ideal for multi-site deployments.
Scalable Runtime and Battery Management
Standard runtime is 4.5 minutes at full load (5000W) and 12.5 minutes at half load (2500W). For extended backup time, the GXT5 supports up to ten external battery cabinets with automatic detection and integration. The hot-swappable internal battery can be replaced without powering down the UPS, minimising downtime. Intelligent battery management includes health status monitoring and predictive replacement date alerts to help you plan maintenance proactively.
Input and Output Connectivity
-
Input Voltage: 208VAC (range 176-280VAC)
-
Output Voltage: 208/120VAC user-configurable
-
Input Connection: Hardwired terminal block 3W + G (L-L-N-G)
-
Output Connection: Hardwired terminal block (optional Power Output Distribution PODs available)
-
Communication Ports: Factory pre-installed RDU101 SNMP/Webcard, USB, RS485, RS232, terminal block, external battery connector
Ideal Applications
Perfect for protecting servers, routers, storage arrays, network switches, VoIP systems, and other critical IT equipment in small to mid-sized data centres, corporate server rooms, retail stores, bank branches, government offices, school networks, healthcare facilities, and remote edge computing locations. The Liebert GXT5 delivers the reliability and manageability that distributed IT environments require.
What's in the Box
- Vertiv Liebert GXT5-5000MVRT4UXLN UPS
- Factory pre-installed Vertiv RDU101 SNMP/Webcard
- Rack mounting hardware kit
- Tower stand (feet) for freestanding installation
- USB cable
- Quick start guide and documentation
Full Specifications
| Power Rating |
5000 VA / 5000 W |
| Topology |
Online double conversion |
| Input Voltage |
Typical: 208VAC / Range: 176-280VAC |
| Output Voltage |
208/120VAC (user-configurable) |
| Power Factor |
Up to 1.0 (unity) |
| Waveform |
Pure sinewave |
| Efficiency |
Up to 98% Active ECO Mode; up to 95% online mode |
| Transfer Time |
Zero (continuous online operation) |
| Battery Runtime (Full Load) |
4.5 minutes (5000W) |
| Battery Runtime (Half Load) |
12.5 minutes (2500W) |
| Battery Type |
Hot-swappable, user-replaceable internal batteries |
| External Battery Support |
Yes, up to 10 external battery cabinets with auto-detection |
| Input Connection |
Hardwired terminal block 3W + G (L-L-N-G) |
| Output Connection |
Hardwired (optional PODs available) |
| Communication Interfaces |
Factory pre-installed RDU101 SNMP/Webcard, USB, RS485, RS232, terminal block, external battery connector |
| Management Protocols |
SNMP, web UI, serial connection for out-of-band management |
| Display |
Full-colour graphic LCD with gravity sensing orientation |
| Form Factor |
Convertible rack/tower (4U rack mount or freestanding tower) |
| Dimensions (W × D × H) |
430mm × 650mm × 173mm (16.9" × 25.6" × 6.8") |
| Weight |
57 kg (125.6 lbs) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Operating Humidity |
0 to 95% non-condensing |
| Certifications |
ENERGY STAR 2.0 certified, UL1778, c-UL listed, RoHS2, REACH |
| Warranty |
Three-year advanced replacement, full-coverage factory warranty (optional extended warranty available) |
Specifications are sourced from the manufacturer product page and may be updated.
