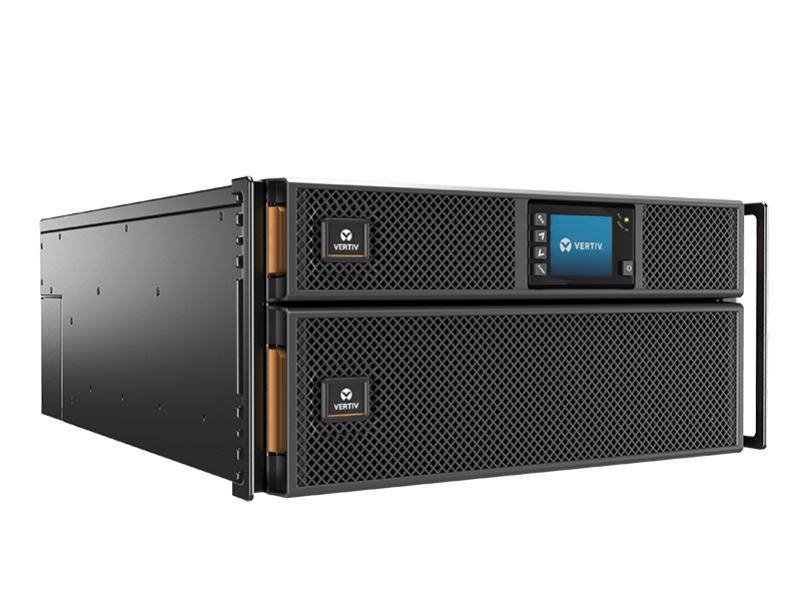

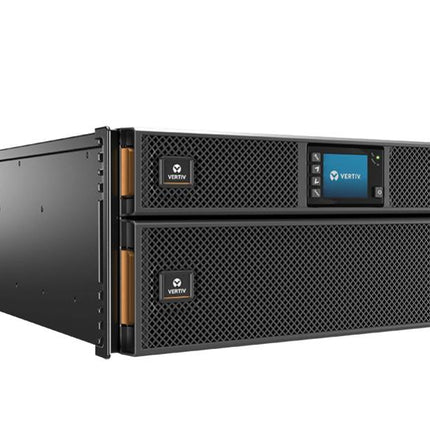

Vertiv Liebert GXT5 6kVA 6kW Online UPS with Tower/Rack Mount
The Vertiv Liebert GXT5 uninterruptible power supply delivers premium power protection for critical IT equipment in data centres, server rooms, and network closets. This 6kVA/6kW online double conversion UPS offers continuous power conditioning to protect against outages, brownouts, surges, and every type of power disturbance. With unity power factor (up to 1.0), it allows more connected loads while saving valuable rack space and reducing costs.
Key Features
-
Online Double Conversion Technology: Provides continuous power conditioning without drawing on battery power during minor fluctuations, extending battery life
-
High Power Factor (0.9-1.0): Unity power factor delivers more usable power for connected equipment, maximising capacity and efficiency
-
Built-in RDU101 Network Card: Remote monitoring via SNMP and web interface for faster event resolution and informed decision-making
-
Flexible Installation: Convertible rack/tower design with gravity-sensing colour LCD display adapts to your environment
-
Energy Star 2.0 Certified: Up to 95% operating efficiency reduces energy consumption and running costs
-
Scalable Runtime: Compatible with external battery cabinets for extended backup power during outages
Power Protection for Critical Infrastructure
The Vertiv Liebert GXT5 is engineered for distributed IT applications including retail stores, school networks, government offices, bank branches, and edge computing locations. The 4U rack-mount design (or tower configuration) features hot-swappable batteries and hardware for easy maintenance without system downtime. Battery health monitoring with replacement date prediction ensures you're always prepared.
Remote Management and Monitoring
With the included Vertiv RDU101 communications card, IT managers gain full remote visibility and control. The system integrates with Vertiv Power Insight software, allowing you to monitor up to 100 distributed UPS units from a single dashboard. Network-grade surge protection meets ANSI C62.41 Category B standards, and the integrated maintenance bypass allows UPS replacement without powering down connected equipment.
Universal Connectivity
- Hardwired terminal block input: 3W + G (L-L-N-G)
- Hardwired output (optional POD units available)
- USB and RS-232 serial ports for local monitoring
- Intellislot for network management cards
- Emergency Power Off (EPO) for safety shutdown
- Four user-definable dry contact I/O ports
What's in the Box
- Vertiv Liebert GXT5 6kVA UPS unit
- Rack mounting hardware kit
- Tower installation base
- Vertiv RDU101 network communications card (pre-installed)
- USB cable
- User manual and quick installation guide
Full Specifications
Power
| Output Power Capacity |
6000VA / 6000W |
| Power Factor |
0.9 - 1.0 (unity) |
| Input Voltage |
208V (L-L-N-G) |
| Output Voltage |
208V / 120V (user selectable) |
| Frequency |
40-70 Hz |
| UPS Topology |
Online double conversion |
| Waveform |
Pure sine wave |
| Efficiency |
Up to 95% (Energy Star 2.0 certified) |
Battery
| Battery Type |
Sealed lead acid (VRLA), hot-swappable |
| Runtime at Full Load |
Approximately 3.5 minutes |
| Runtime at Half Load |
Approximately 9.5 minutes |
| Battery Monitoring |
Health status and replacement date prediction |
| External Battery Support |
Yes, with auto-detection |
Management & Communications
| Display |
Full-colour LCD with gravity sensing |
| Network Card |
Vertiv RDU101 (pre-installed) |
| Local Ports |
USB, RS-232 serial |
| Dry Contact I/O |
4 user-definable ports |
| Software |
Vertiv Power Insight (free download) |
| Emergency Power Off |
Yes (EPO) |
Physical Characteristics
| Form Factor |
Rack/tower convertible |
| Rack Height |
4U |
| Dimensions (W × D × H) |
16.9" × 25.6" × 6.8" (429mm × 650mm × 173mm) |
| Weight |
57.2 kg (126 lbs) |
Environmental & Compliance
| Certifications |
Energy Star 2.0, RoHS, REACH |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Surge Protection |
ANSI C62.41 Category B |
Warranty & Support
| Standard Warranty |
3 years comprehensive (including battery) |
| Extended Warranty |
Optional 2-year extension available |
Specifications are sourced from the manufacturer product page and may be updated.
